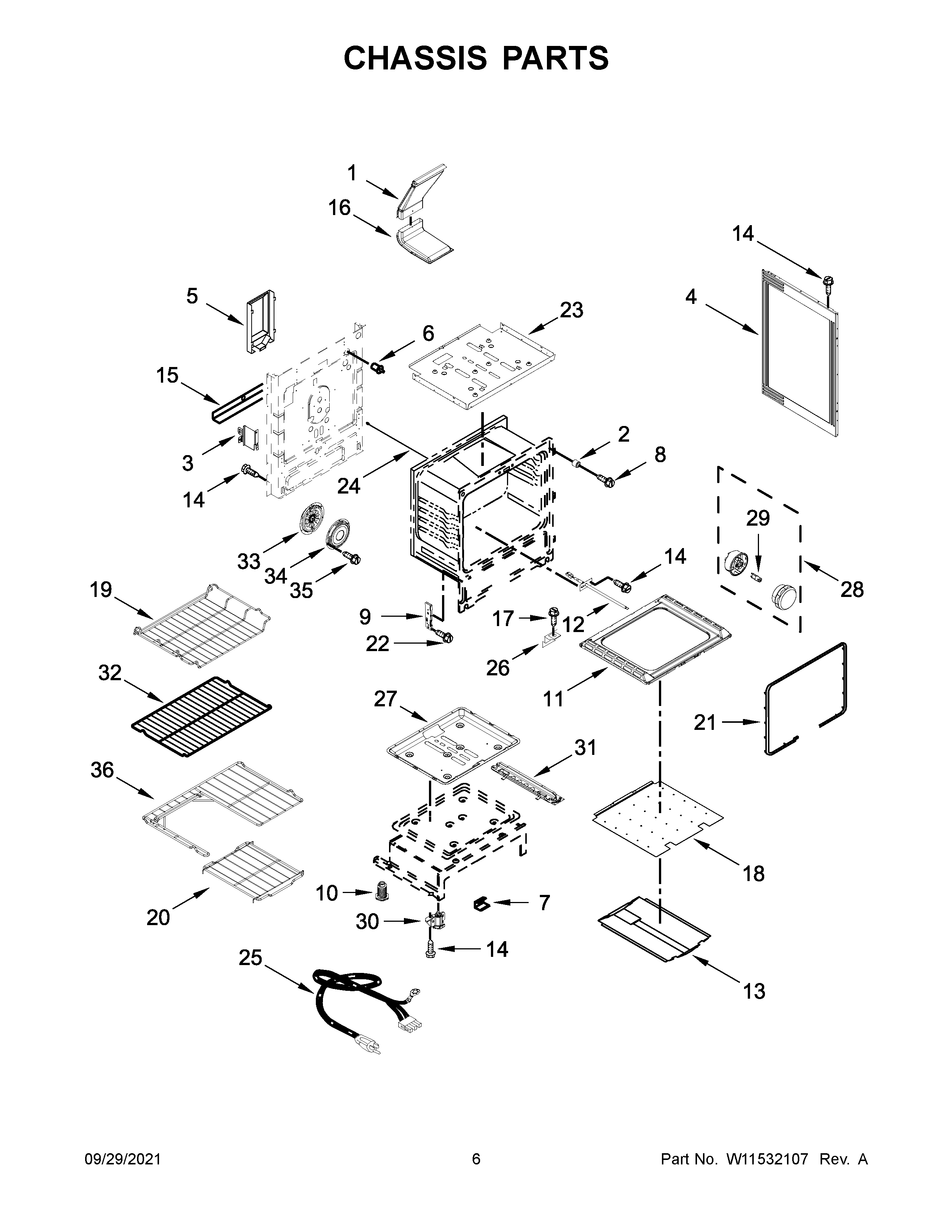

WFG770H0FZ2 04 – CHASSIS PARTS

Products

PositionProduct
NICLAMP, WIRE
NIINSULATION, STRAP
NIW11688362 Whirlpool Insulation
NIW11688566 Whirlpool Insulation
1W10314347 Whirlpool Oven Flue Assembly
2W10877054 Whirlpool Spacer Assembly
3W10273002 Whirlpool Support Bracket
4W11730303 Whirlpool Side Panel
5W10158780 Whirlpool Rear Cover
6WP9757262 Whirlpool Light Switch
7W10137382 Whirlpool Clip
8W11169708 Whirlpool Screw
9W10647259 Whirlpool Hinge Receiver
10WPW10058460 Whirlpool Appliance Levelling Leg
11WPW10211368 Whirlpool Oven Bottom
12SENSOR-RANGE
13BAFFLE, BAKE BURNER
14SCREW
15W10435470 Whirlpool Brace
16W11243157 Whirlpool Oven Flue
18W10323077 Whirlpool Burner Baffle
19WPW10289145 Whirlpool Oven Rack
20W10186592 Whirlpool Oven Rack Assembly
21W11562931 Whirlpool Door Gasket
22W10777162 Whirlpool Screw
23WPW10273195 Whirlpool Heat Shield
24W11370463 Whirlpool Door Rod Assembly
25W11582239 Whirlpool Range Power Cord
26W10035900 Whirlpool Support Bracket
27W11379356 Whirlpool Hidden Pan Assembly
28W11594170 Whirlpool Light Socket
29BULB-LIGHT
30WPW10341186 Whirlpool Refrigerator Front Levelling Leg
31AWPW10306546 Whirlpool Base Rail
32WPW10531060 Whirlpool Oven Rack
33W11043837 Whirlpool Convection Fan
34WPW10346154 Whirlpool Cover Assembly
36W10205526 Whirlpool Oven Rack
