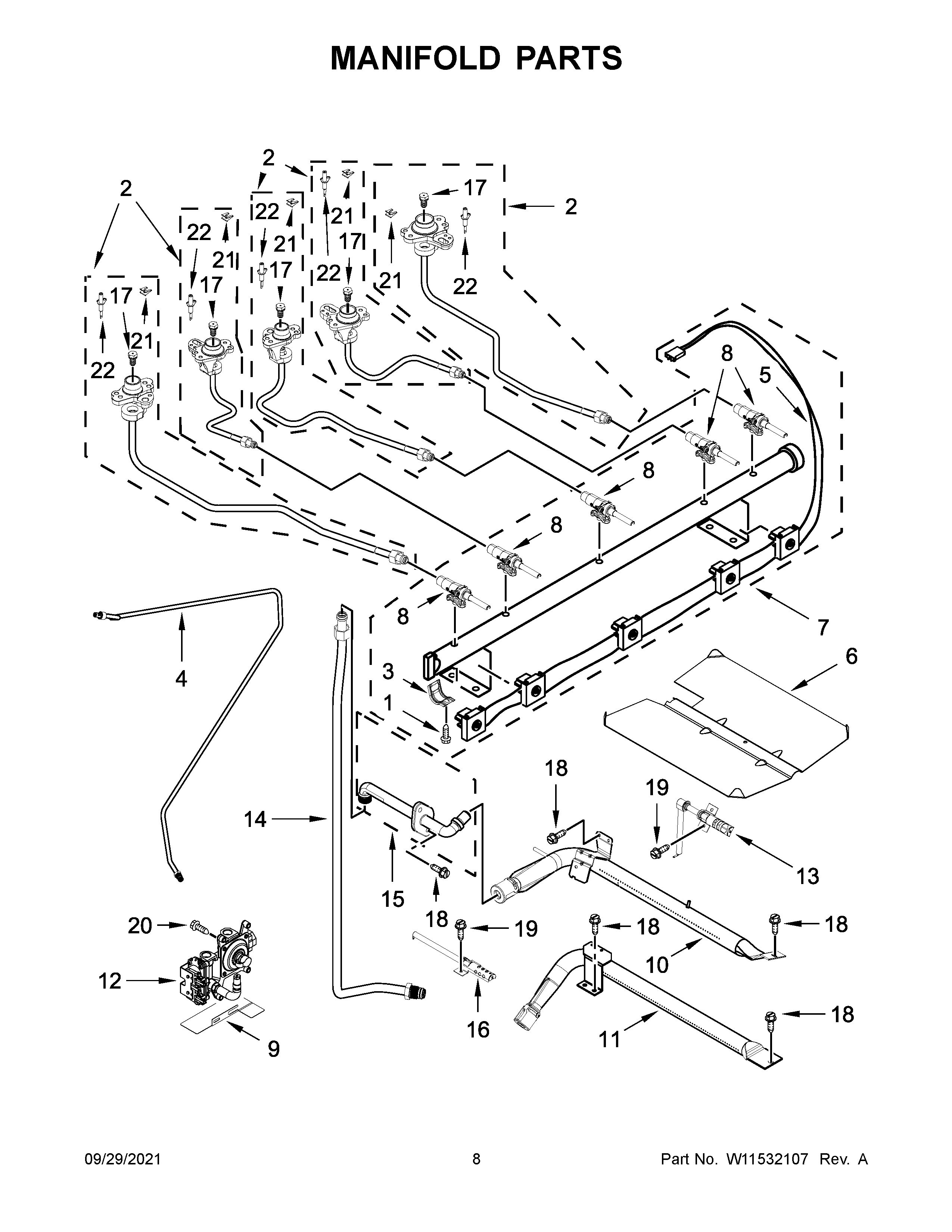

WFG770H0FZ2 05 – MANIFOLD PARTS

Products

PositionProduct
NIW11087486 Whirlpool Spud Orifice
NICABINET (NOT A SERVICEABLE PART)
NIW11560165 Whirlpool Conversion Kit
1W10295997 Whirlpool Screw
2ORIFICE HOLDER ASSEMBLY (17K) (LEFT FRONT)
2DW11557817 Whirlpool Orifice Holder
2CW11557816 Whirlpool Orifice Holder
2AW11557815 Whirlpool Orifice Holder
2BW11557818 Whirlpool Range Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10510125 Whirlpool Gas Tubing
5W10906162 Whirlpool Wire Harness
6BAFFLE, BROIL BURNER
7W11418925 Whirlpool Manifold
8W11628784 Whirlpool Burner Valve
8BW11352015 Whirlpool Range Burner Valve
8AW11699929 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10W11676566 Whirlpool Range Burner Broiler
11W10764654 Whirlpool Oven Burner
12W10919226 Whirlpool Regulator
13WPW10324262 Whirlpool Oven Igniter
14W10306050 Whirlpool Gas Tubing
15W10776437 Whirlpool Fitting
16WPW10333842 Whirlpool Oven Igniter
17CW11428753 Whirlpool Orifice
17BW11485874 Whirlpool Orifice
17AW11485873 Whirlpool Orifice
17DW11712434 Whirlpool Orifice
17ORIFICE (17K) (LEFT FRONT)
18SCREW
19W11684507 Whirlpool Screw
20WP3400016 Whirlpool Screw Assembly
21W11684564 Whirlpool Clip Assembly
22W11453940 Whirlpool Surface Igniter
22AW11453920 Whirlpool Surface Igniter
