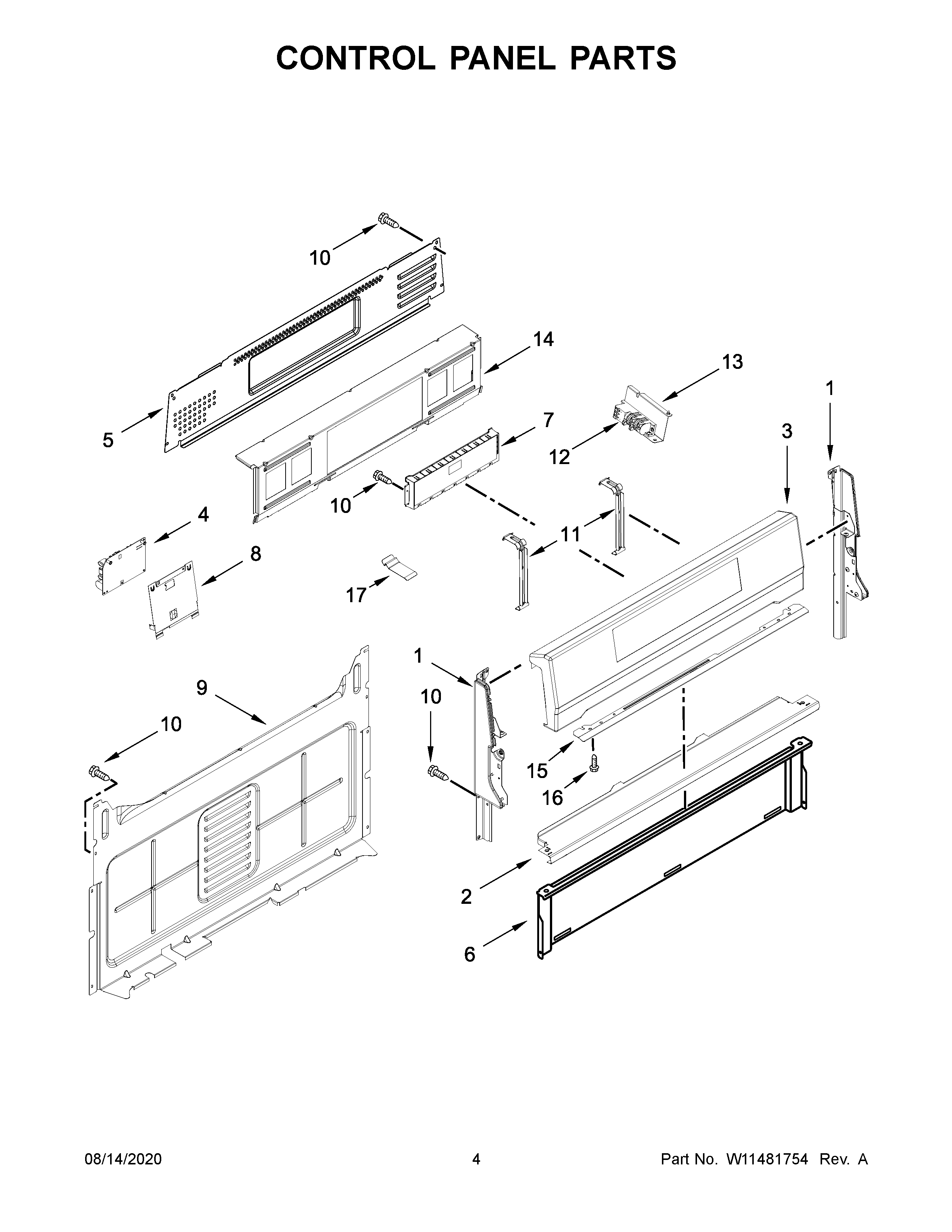

WFG775H0HB1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BENDCAP (WHITE (LEFT))
1W11213290 Whirlpool Console
1CW11259700 Whirlpool Panel End Cap
1AW11213292 Whirlpool Endcap Panel
2W10516123 Whirlpool Mounting Bracket
3W11177731 Whirlpool Control Panel
3APANEL, CONTROL (WHITE)
4W11162730 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11175139-includeCORE Whirlpool W11175139 Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11BRACKET, CONTROL
12WPW10475149 Whirlpool Spark Module
13W10901176 Whirlpool Bracket Assembly
14W10901802 Whirlpool Mounting Bracket
15AW11051311 Whirlpool Support Bracket
15W11443964 Whirlpool Support Bracket
16WP3196557 Whirlpool Screw
17WPW10551614 Whirlpool Clip
