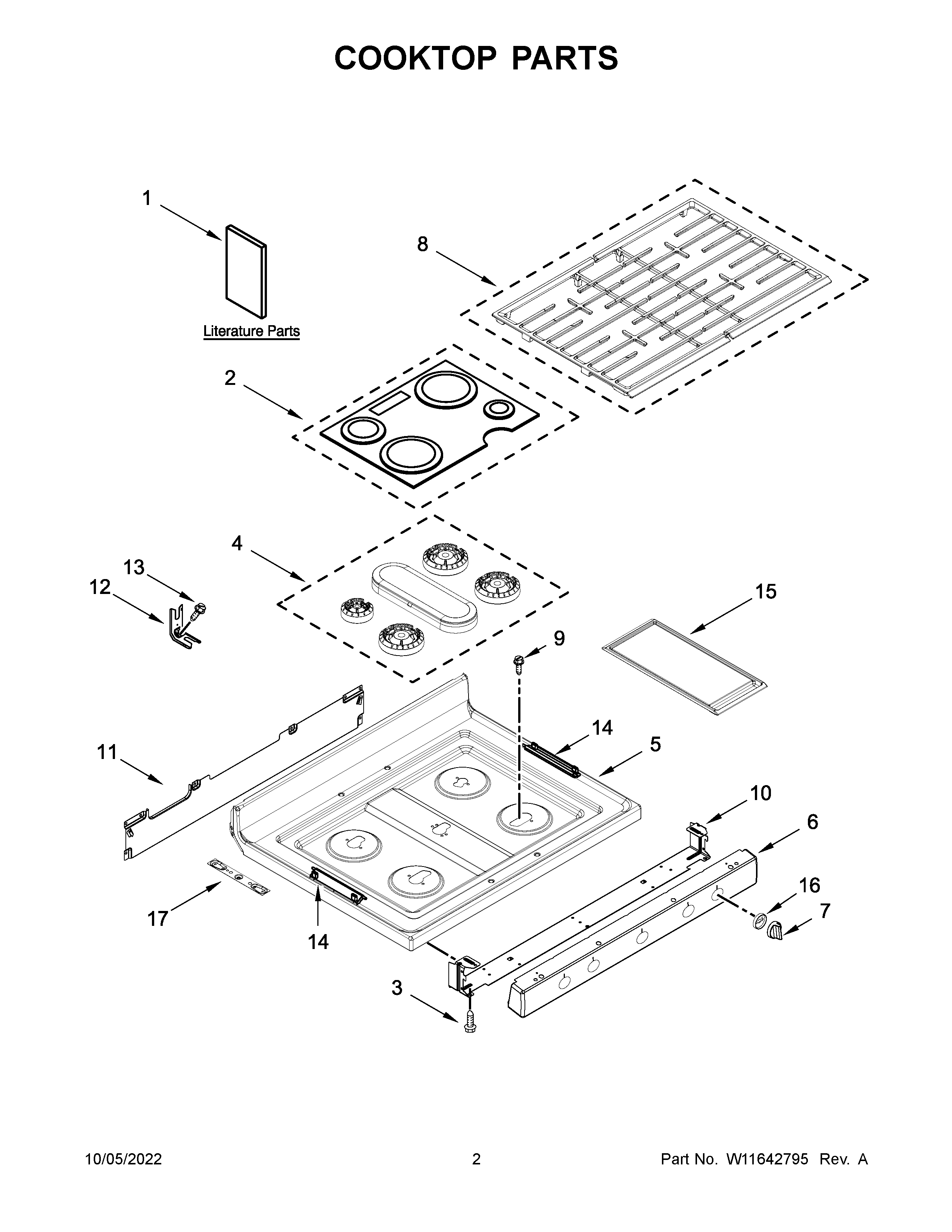

WFG775H0HB5 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11458869 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1	QUICK START GUIDE
1B	TECH SHEET
1A	USE AND CARE GUIDE
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5A	COOKTOP (WHITE)
5	W11459372 Whirlpool Cooktop
6A	PANEL, MANIFOLD (WHITE)
6	PANEL, MANIFOLD (BLACK)
7	W11176800 Whirlpool Knob
7A	KNOB (WHITE)
8	W11175178 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
15	W11123246 Whirlpool Griddle
16	BEZEL (BLACK)
16A	W10918523 Whirlpool Knob Bezel
17	GRATE HINGE SPACER
