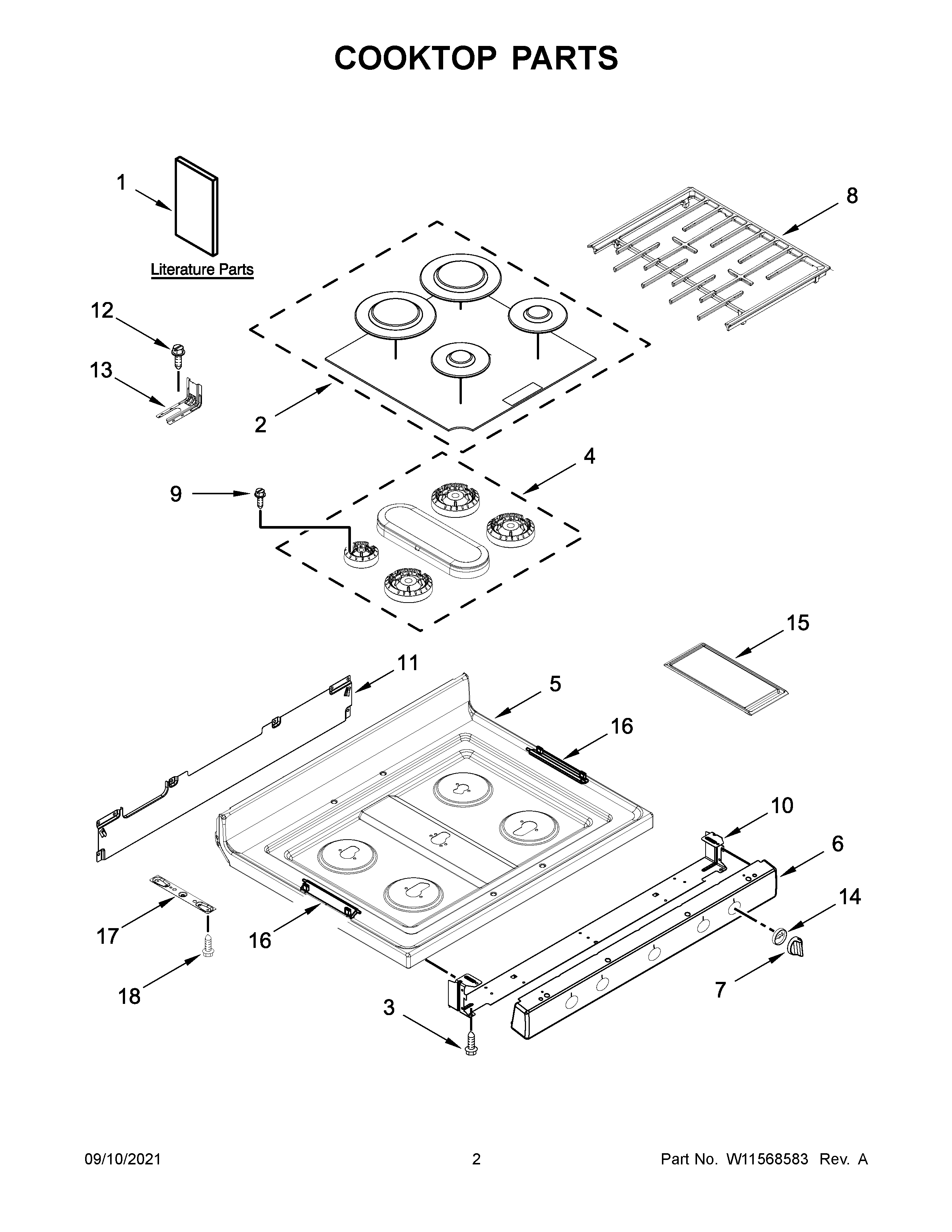

WFG775H0HV2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161843 Whirlpool Wire Harness
NI	W11451600 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1B	TECH SHEET (ENGLISH)
1C	WIRING DIAGRAM (ENGLISH/FRENCH)
1	QUICK START GUIDE
1A	USE AND CARE GUIDE
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	W11459372 Whirlpool Cooktop
6A	PANEL, MANIFOLD (BLACK STAINLESS)
6	W11174678 Whirlpool Manifold Panel
7	W11174696 Whirlpool Knob Assembly
7A	W11174697 Whirlpool Knob
8	W11175178 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	SCREW, ANTI-TIP KIT
13	W11447673 Whirlpool Range Tip Anchor
14	W11175131 Whirlpool Knob Bezel
14A	BEZEL (BLACK STAINLESS)
15	W11123246 Whirlpool Griddle
17	GRATE HINGE SPACER
18	WPW10132940 Whirlpool Dishwasher Screw
