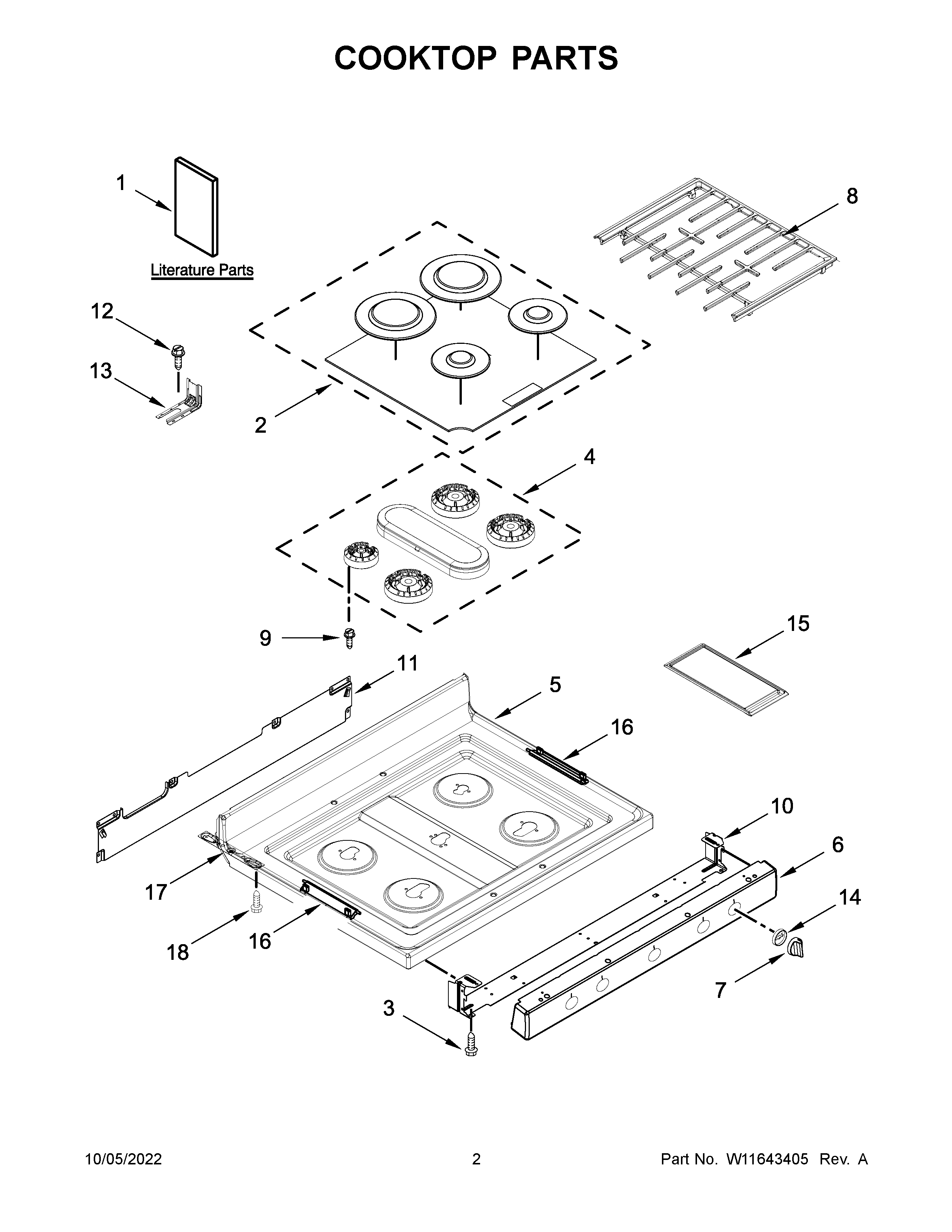

WFG775H0HV5 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11161843 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11458869 Whirlpool Wire Harness
1B	TECH SHEET
1	QUICK START GUIDE
1A	USE AND CARE GUIDE
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	W11459372 Whirlpool Cooktop
6	W11174678 Whirlpool Manifold Panel
6A	PANEL, MANIFOLD (BLACK STAINLESS)
7A	W11174697 Whirlpool Knob
7	W11174696 Whirlpool Knob Assembly
8	W11175178 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	SCREW, ANTI-TIP KIT
13	W11447673 Whirlpool Range Tip Anchor
14A	BEZEL (BLACK STAINLESS)
14	W11175131 Whirlpool Knob Bezel
15	W11123246 Whirlpool Griddle
17	GRATE HINGE SPACER
18	WPW10132940 Whirlpool Dishwasher Screw
