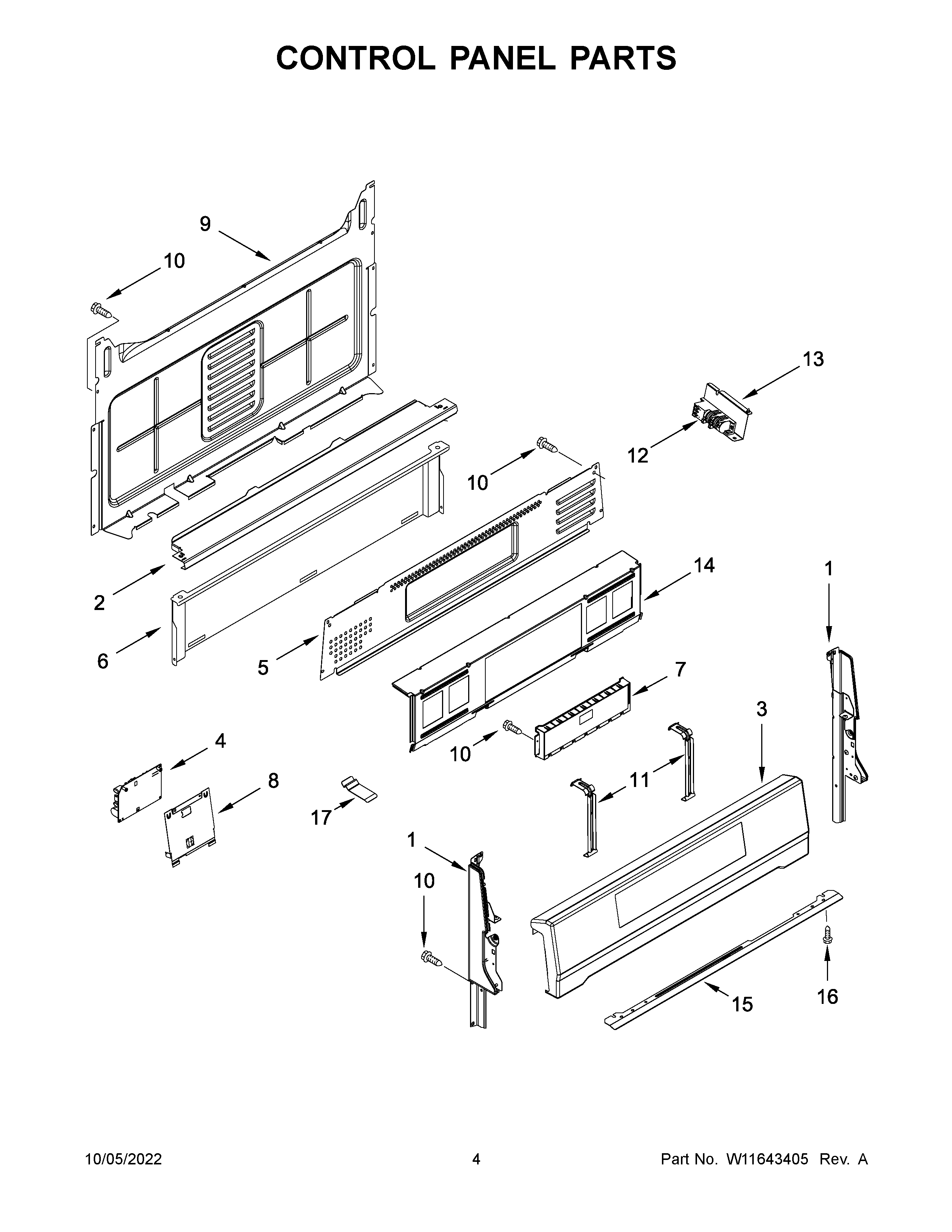

WFG775H0HV5 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11213290 Whirlpool Console
1A	W11213292 Whirlpool Endcap Panel
2	W10516123 Whirlpool Mounting Bracket
3A	W11175173 Whirlpool Control Panel
3	W11175171 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11620580 Whirlpool Refrigerator Electronic Control Board + Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	BRACKET, CONTROL
12	WPW10475149 Whirlpool Spark Module
13	W10901176 Whirlpool Bracket Assembly
14	W10901802 Whirlpool Mounting Bracket
15	W11443964 Whirlpool Support Bracket
16	WP3196557 Whirlpool Screw
17	WPW10551614 Whirlpool Clip
