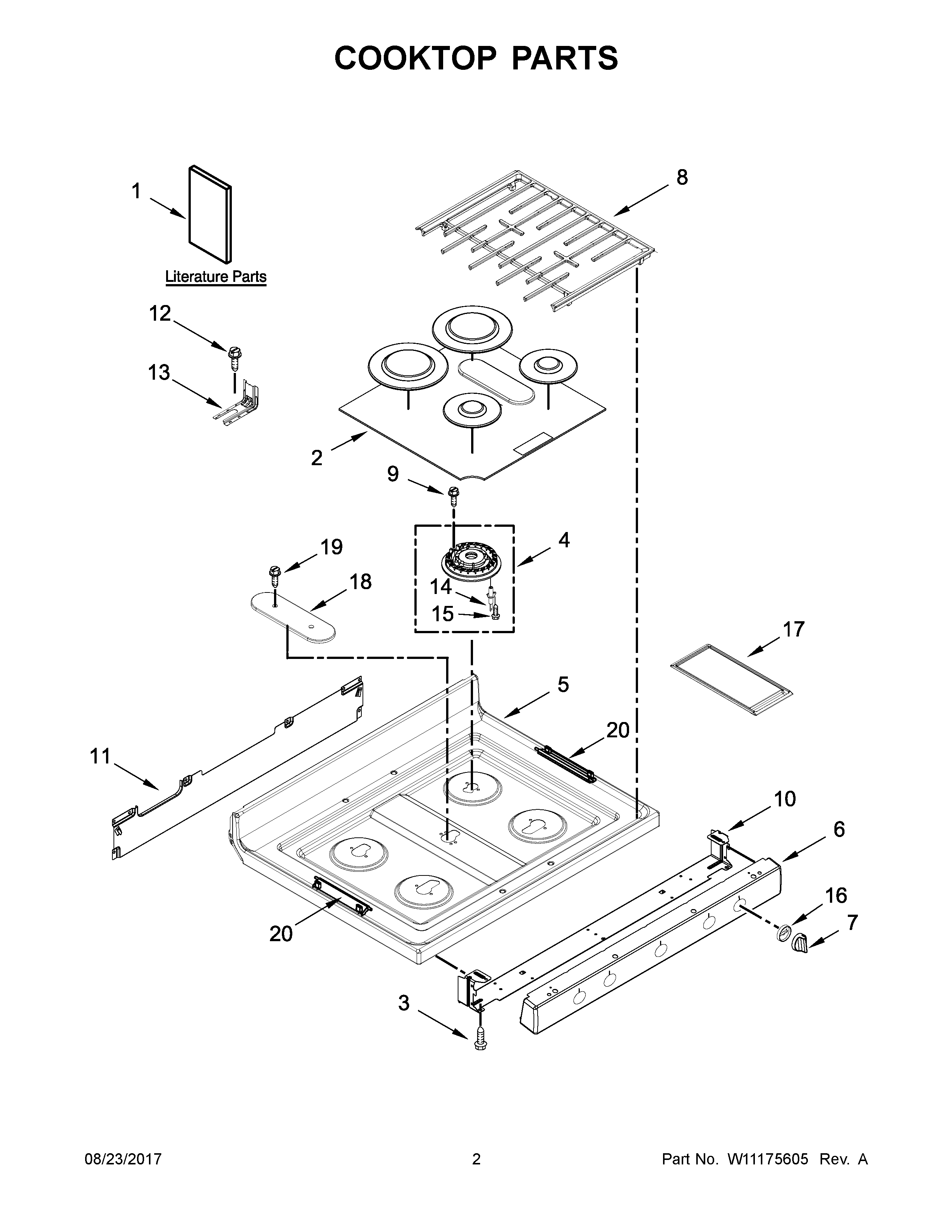

WFG775H0HW0 02 – COOKTOP PARTS

Products

Position	Product
NI	W10809928 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	W10887353 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	CABINET (NOT A SERVICEABLE PART)
1B	TECH SHEET (ENGLISH)
1A	GUIDE, USE & CARE
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
1E	DIAGRAM, WIRING
1	INSTRUCTIONS, INSTALLATION
2	W11253659 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11175169 Whirlpool Burner Head
4A	W11175151 Whirlpool Burner Head
4C	W11175168 Whirlpool Burner Head
4B	W11175167 Whirlpool Burner Head
5	W11174143 Whirlpool Cooktop Assembly
5A	COOKTOP (WHITE)
6A	PANEL, MANIFOLD (WHITE)
6	PANEL, MANIFOLD (BLACK)
7	W11176800 Whirlpool Knob
7A	KNOB (WHITE)
8	W11175178 Whirlpool Grate Kit
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10530070 Whirlpool Support Bracket
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
16	BEZEL (BLACK)
16A	W10918523 Whirlpool Knob Bezel
17	W11123246 Whirlpool Griddle
18	WPW10333445 Whirlpool Burner Base
19	7101P676-60 Whirlpool Screw
