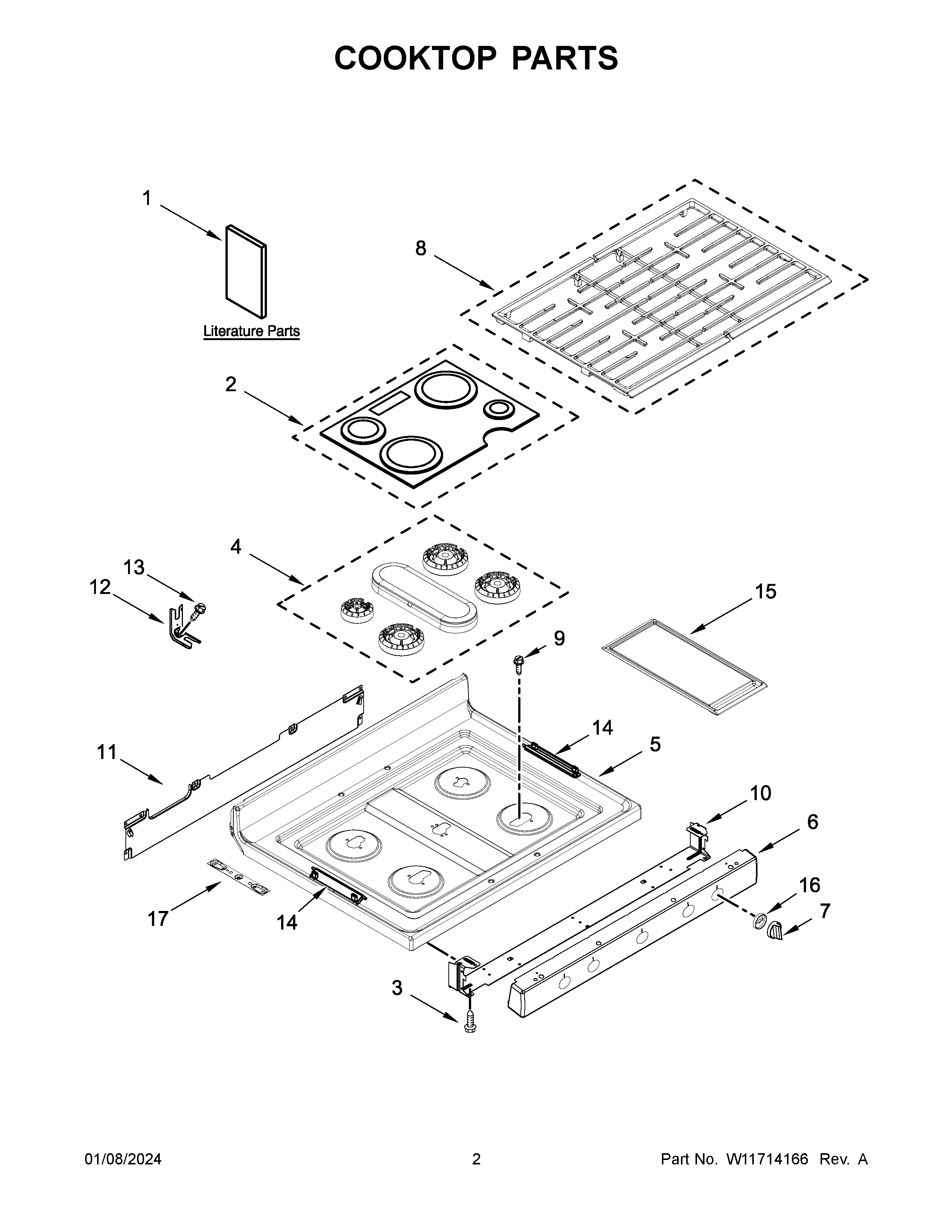

WFG775H0HW6 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11161843 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11458869 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1B	TECH SHEET
1	QUICK START GUIDE
1A	USE AND CARE GUIDE
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	COOKTOP (WHITE)
6	PANEL, MANIFOLD (WHITE)
7	KNOB (WHITE)
8	W11175178 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	HINGE, GRATE (NOT SERVICED)
15	W11123246 Whirlpool Griddle
16	W10918523 Whirlpool Knob Bezel
17	GRATE HINGE SPACER
