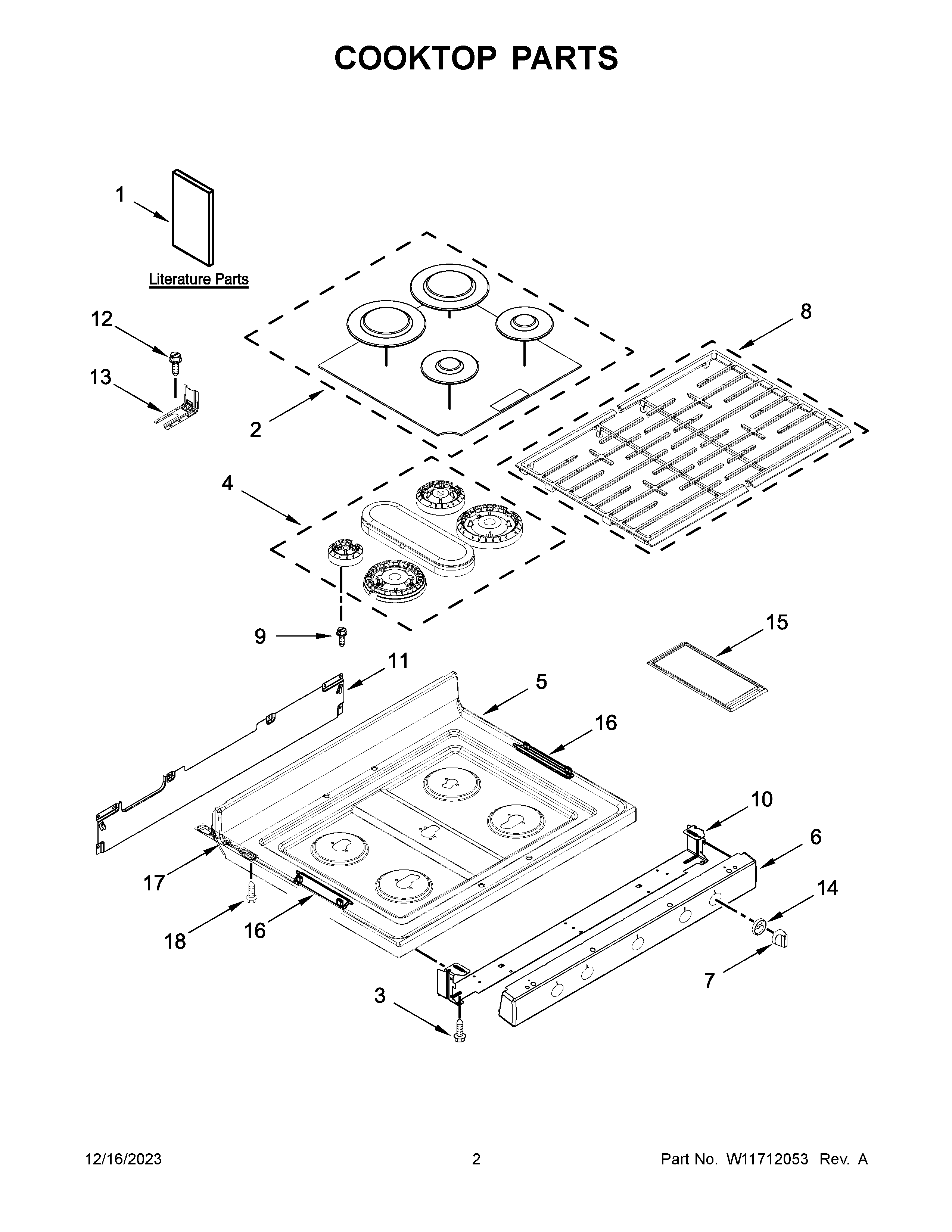

WFG775H0HZ6 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11161843 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11458869 Whirlpool Wire Harness
1B	TECH SHEET
1	QUICK START GUIDE
1A	USE AND CARE GUIDE
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	W11459372 Whirlpool Cooktop
6	W11174678 Whirlpool Manifold Panel
7	W11174696 Whirlpool Knob Assembly
8	W11175178 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	SCREW, ANTI-TIP KIT
13	W11447673 Whirlpool Range Tip Anchor
14	W11175131 Whirlpool Knob Bezel
15	W11123246 Whirlpool Griddle
16	HINGE, GRATE (NOT SERVICED)
17	GRATE HINGE SPACER
18	WPW10132940 Whirlpool Dishwasher Screw
