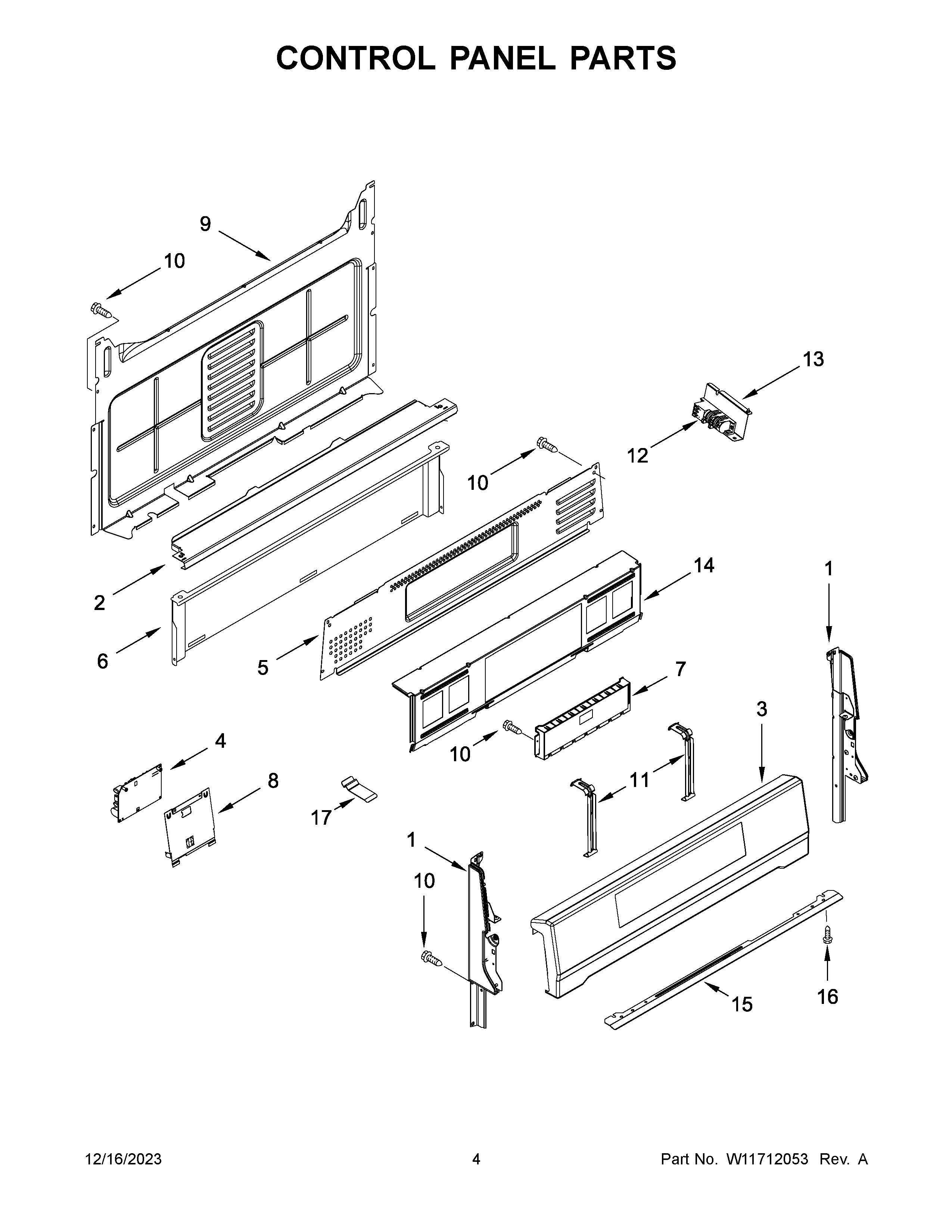

WFG775H0HZ6 03 – CONTROL PANEL PARTS

WFG775H0HZ6 03 – CONTROL PANEL PARTS

Written by

in

WFG775H0HZ6 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11213290 Whirlpool Console
1AW11213292 Whirlpool Endcap Panel
2W10516123 Whirlpool Mounting Bracket
3W11175171 Whirlpool Control Panel
4W11162730 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11620580 Whirlpool Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11BRACKET, CONTROL
12W11703692 Whirlpool Speaker Module
13W10901176 Whirlpool Bracket Assembly
14W10901802 Whirlpool Mounting Bracket
15W11443964 Whirlpool Support Bracket
16WP3196557 Whirlpool Screw
17WPW10551614 Whirlpool Clip
