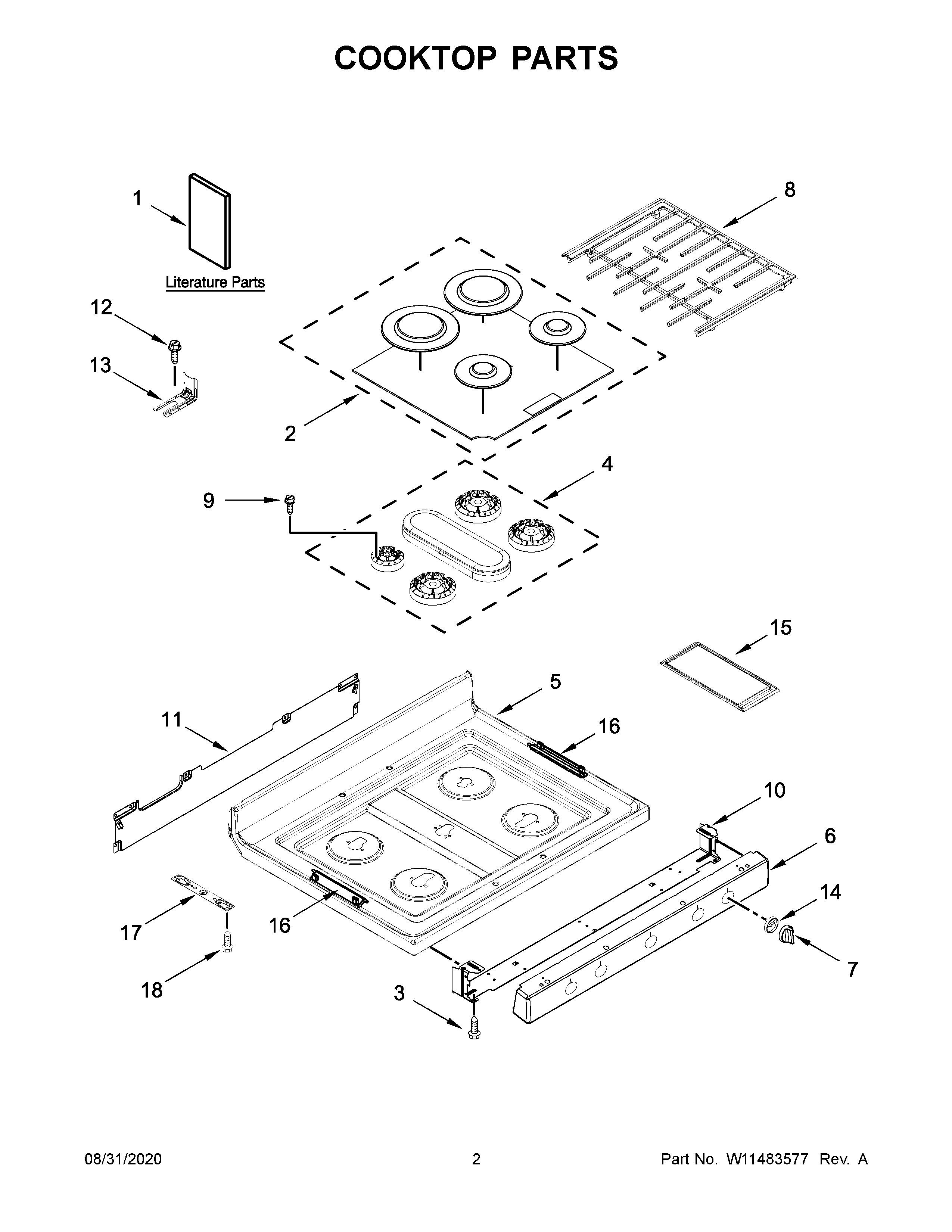

WFG975H0HV1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	HARNESS, MAIN
NI	W11161843 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1	INSTALLATION INSTRUCTIONS
1A	USE & CARE GUIDE
1C	WIRING DIAGRAM
1D	GUIDE, INTERNET CONNECTIVITY
1B	TECH SHEET (ENGLISH)
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	W11459372 Whirlpool Cooktop
6	PANEL, MANIFOLD (BLACK STAINLESS)
7	W11174697 Whirlpool Knob
8	W11175178 Whirlpool Grate Kit
9	W11241230 Whirlpool Screw
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	SCREW, ANTI-TIP KIT
13	W11447673 Whirlpool Range Tip Anchor
14	BEZEL (BLACK STAINLESS)
15	W11123246 Whirlpool Griddle
17	GRATE HINGE SPACER
18	WPW10132940 Whirlpool Dishwasher Screw
