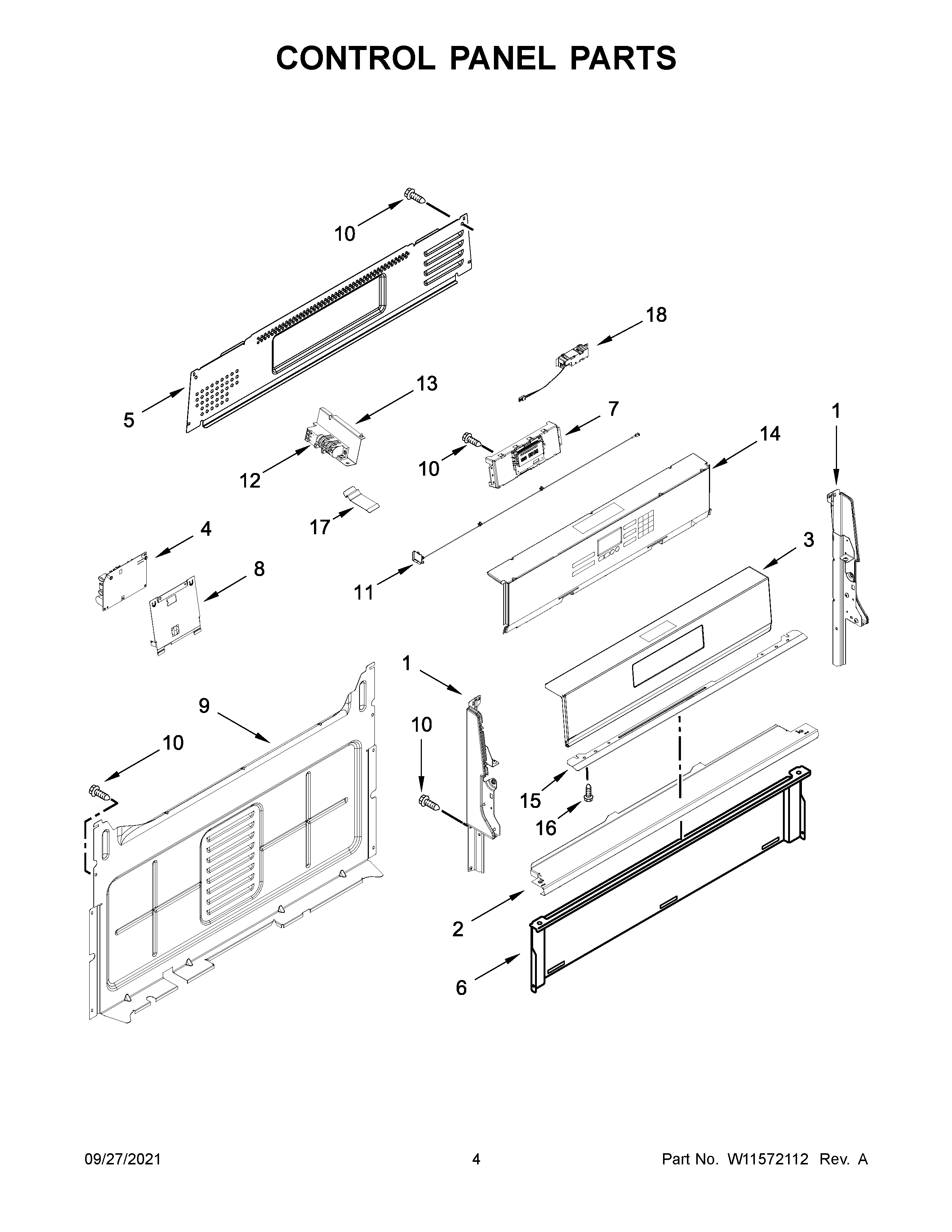

WFG975H0HV2 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11213292 Whirlpool Endcap Panel
1	W11213290 Whirlpool Console
2	W10516123 Whirlpool Mounting Bracket
3A	W11165616 Whirlpool Control Panel
3	W11165617 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11284302-includeCORE Whirlpool W11284302 Refrigerator Electric Control with Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W11113849 Whirlpool Antenna
12	WPW10475149 Whirlpool Spark Module
13	W10901176 Whirlpool Bracket Assembly
14	W11280096 Whirlpool Control Panel
15	W11443964 Whirlpool Support Bracket
16	WP3196557 Whirlpool Screw
17	WPW10551614 Whirlpool Clip
18	W11165979 Whirlpool Electronic Control Board
