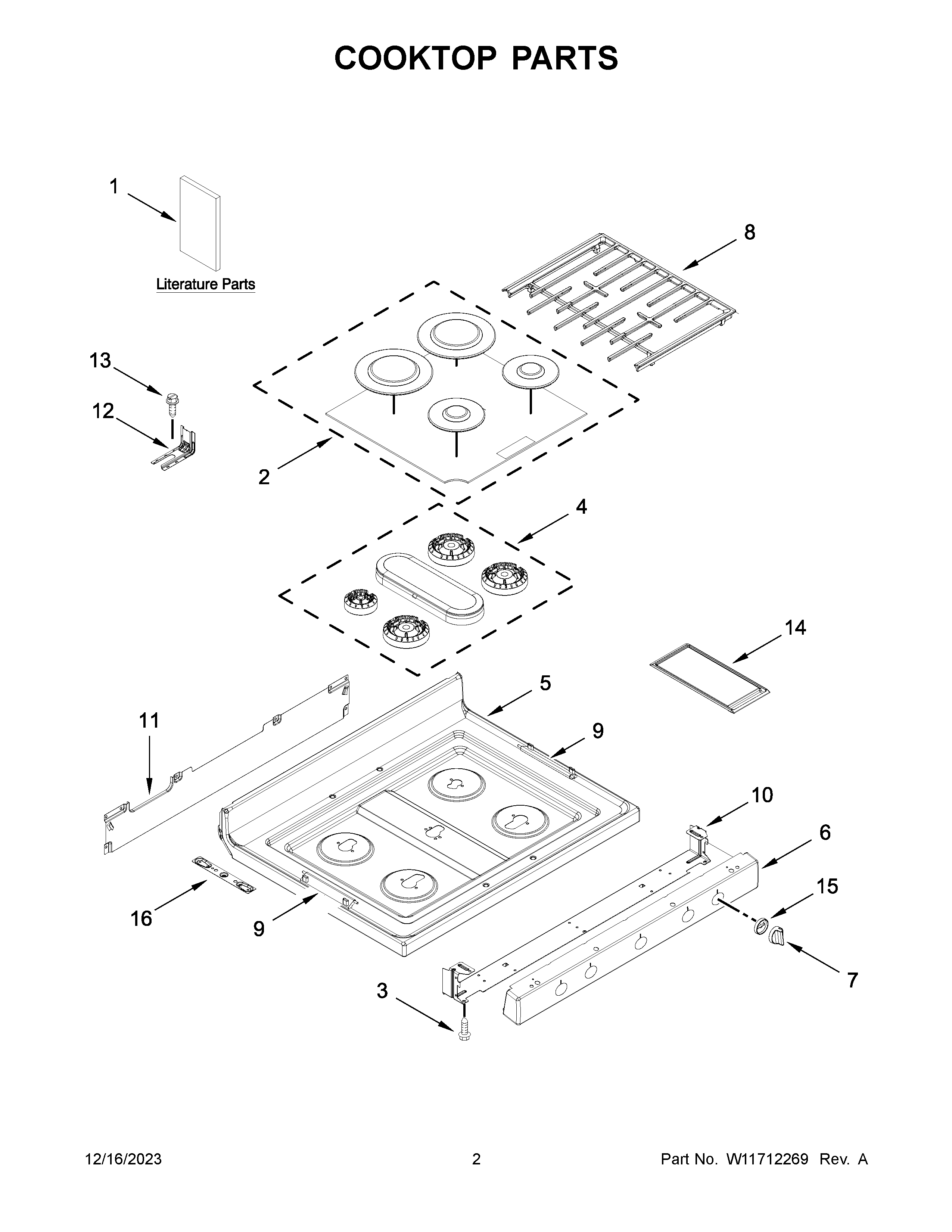

WFG975H0HV6 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11161843 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1C	GUIDE, INTERNET CONNECTIVITY
1B	TECH SHEET
1	QUICK START GUIDE
1A	USE AND CARE GUIDE
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	W11459372 Whirlpool Cooktop
6A	PANEL, MANIFOLD (BLACK STAINLESS)
6	W11174678 Whirlpool Manifold Panel
7	W11174696 Whirlpool Knob Assembly
7A	W11174697 Whirlpool Knob
8	W11175178 Whirlpool Grate Kit
9	HINGE, GRATE (NOT SERVICED)
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	W11123246 Whirlpool Griddle
15	W11175131 Whirlpool Knob Bezel
15A	BEZEL (BLACK STAINLESS)
16	GRATE HINGE SPACER
