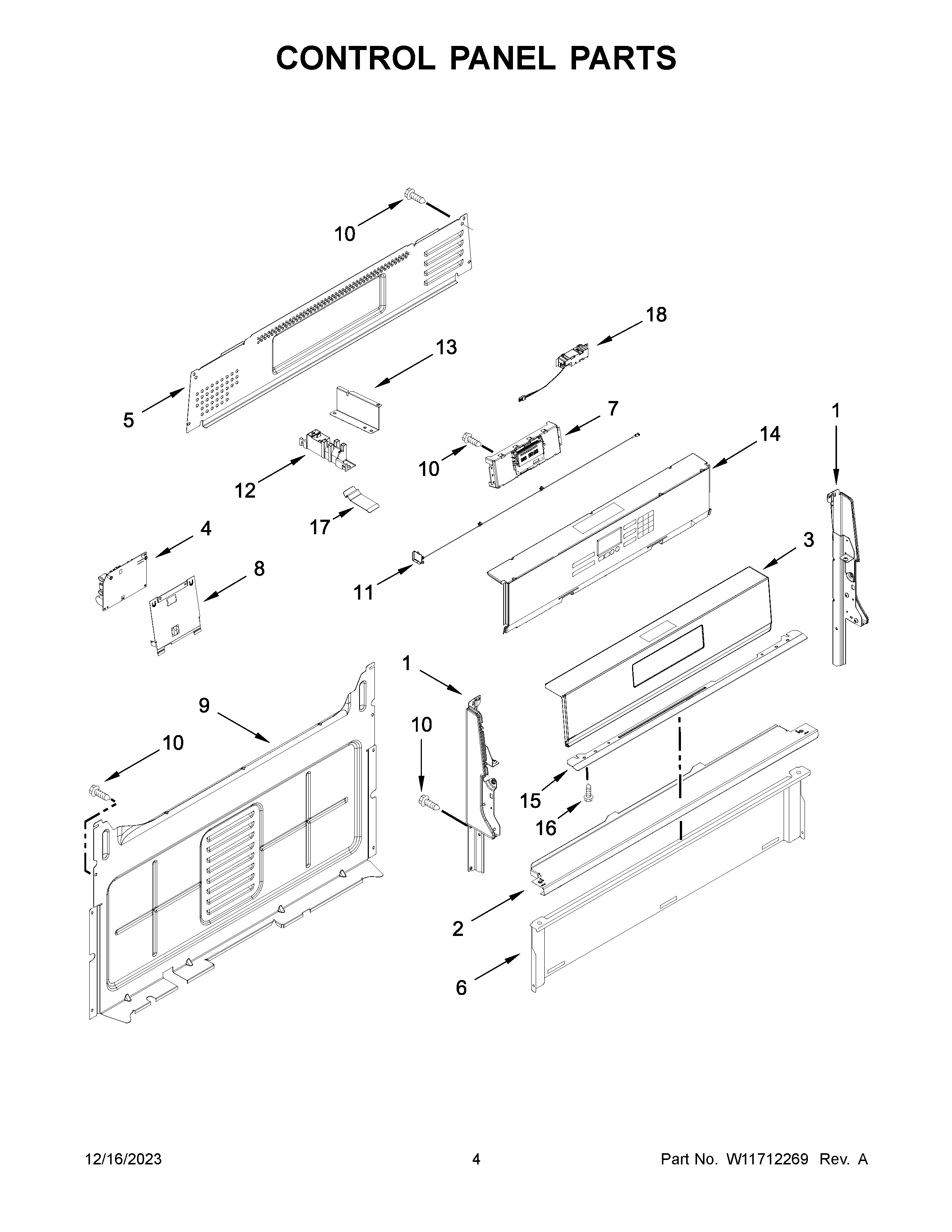

WFG975H0HV6 03 – CONTROL PANEL PARTS

WFG975H0HV6 03 – CONTROL PANEL PARTS

Written by

in

WFG975H0HV6 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2W10516123 Whirlpool Mounting Bracket
3AW11165616 Whirlpool Control Panel
3W11165617 Whirlpool Control Panel
4W11162730 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11620581-includeCORE Whirlpool W11620581 Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11ANTENNA
12W11703692 Whirlpool Speaker Module
13W10901176 Whirlpool Bracket Assembly
14W11280096 Whirlpool Control Panel
15W11443964 Whirlpool Support Bracket
16WP3196557 Whirlpool Screw
17WPW10551614 Whirlpool Clip
18W11165979 Whirlpool Electronic Control Board
