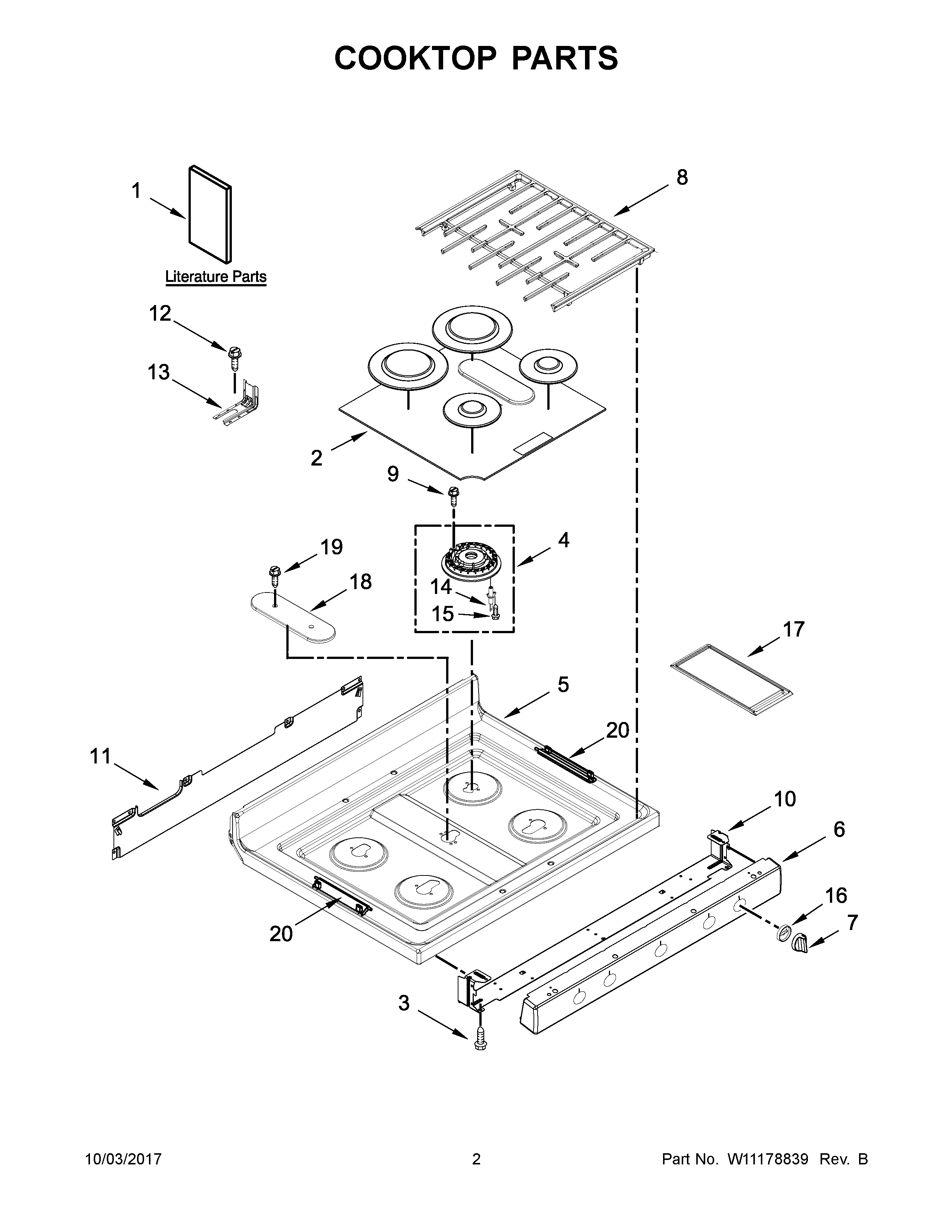

WFG975H0HZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	CLAMP, WIRE
NI	W10809928 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11025427 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11161843 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
1B	TECH SHEET (ENGLISH)
1F	GUIDE, INTERNET CONNECTIVITY
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1E	WIRING DIAGRAM
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
2	W11253659 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4A	W11175151 Whirlpool Burner Head
4B	W11175167 Whirlpool Burner Head
4C	W11175168 Whirlpool Burner Head
4	W11175169 Whirlpool Burner Head
5	W11174143 Whirlpool Cooktop Assembly
6	W11174678 Whirlpool Manifold Panel
6A	PANEL, MANIFOLD (BLACK STAINLESS)
7A	W11174697 Whirlpool Knob
7	W11174696 Whirlpool Knob Assembly
8	W11175178 Whirlpool Grate Kit
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10530070 Whirlpool Support Bracket
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
16A	BEZEL (BLACK STAINLESS)
16	W11175131 Whirlpool Knob Bezel
17	W11123246 Whirlpool Griddle
18	WPW10333445 Whirlpool Burner Base
19	7101P676-60 Whirlpool Screw
