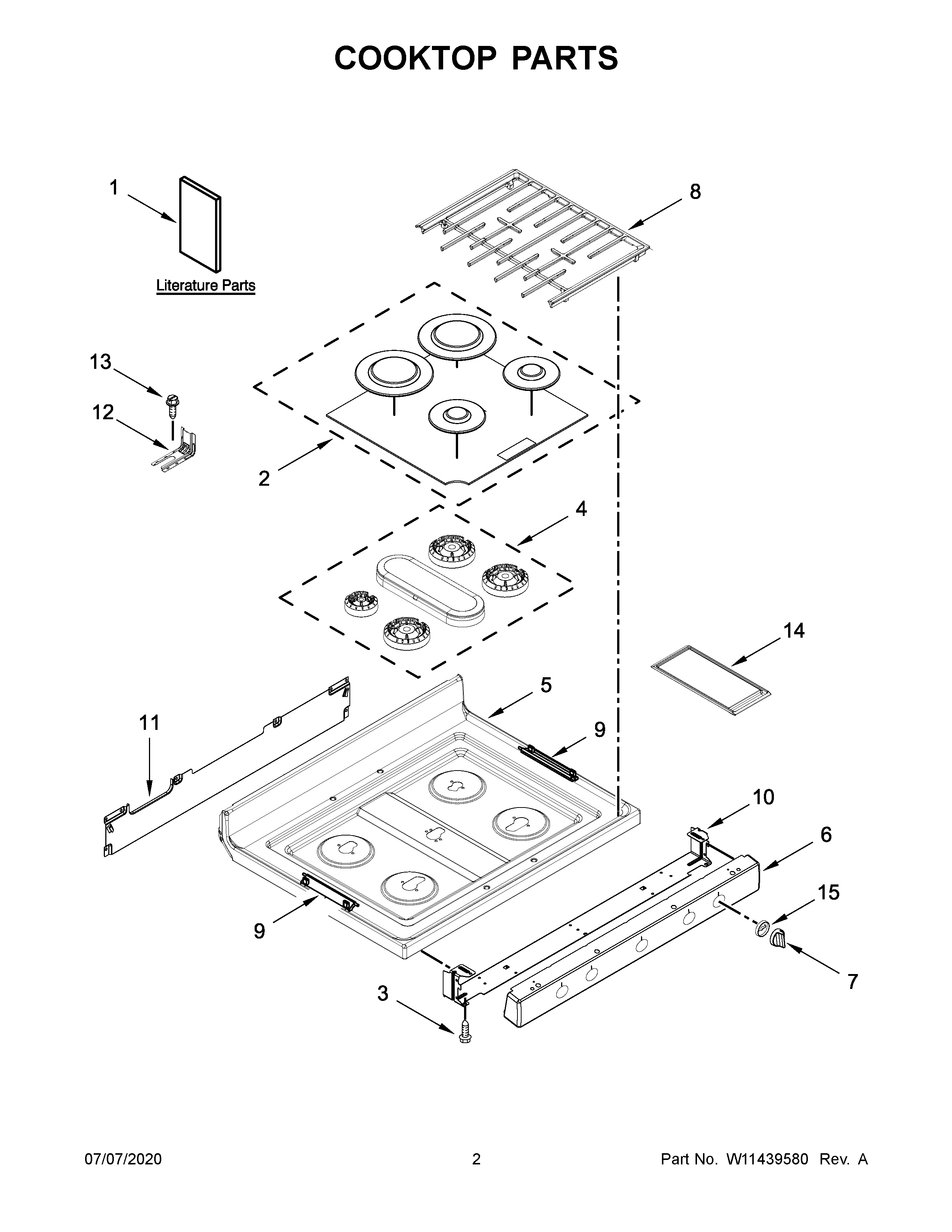

WFG975H0HZ1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	W11161843 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1	INSTALLATION INSTRUCTIONS
1D	GUIDE, INTERNET CONNECTIVITY
1B	TECH SHEET (ENGLISH)
1A	USE & CARE GUIDE
1C	WIRING DIAGRAM
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	W11459372 Whirlpool Cooktop
6	W11174678 Whirlpool Manifold Panel
7	W11174696 Whirlpool Knob Assembly
8	W11175178 Whirlpool Grate Kit
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	W11123246 Whirlpool Griddle
15	W11175131 Whirlpool Knob Bezel
