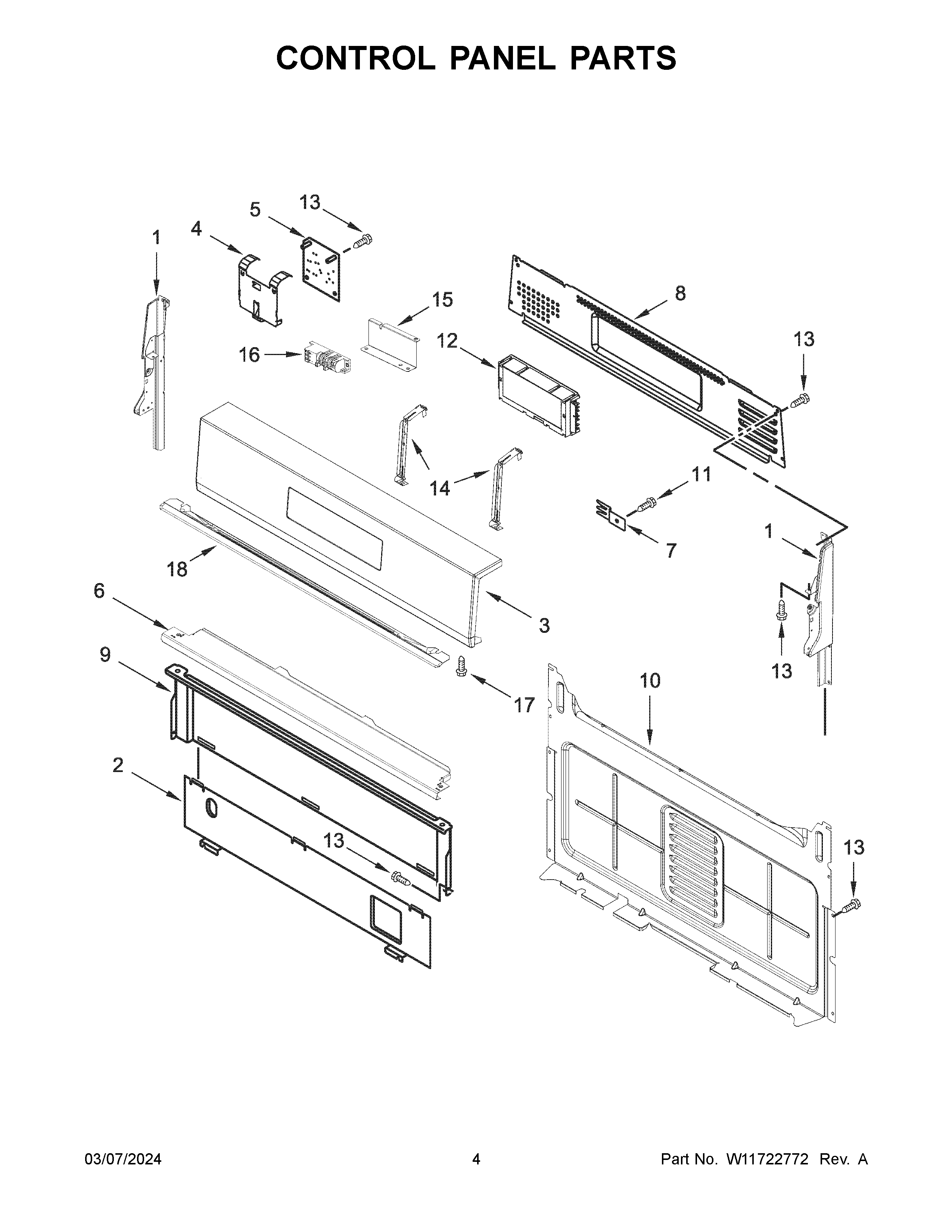

WFGS3530RB0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11213292 Whirlpool Endcap Panel
1C	W11259700 Whirlpool Panel End Cap
1B	ENDCAP (WHITE (LEFT))
1	W11213290 Whirlpool Console
2	8053505 Whirlpool Oven Shield
3A	PANEL, CONTROL (WHITE)
3	PANEL, CONTROL (BLACK)
4	W10762981 Whirlpool Mounting Bracket Assembly
5	W10898291 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12	W11707254-includeCORE Whirlpool Electronic Control+Core
13	SCREW
14	BRACKET, CONTROL
15	W10901176 Whirlpool Bracket Assembly
16	WPW10110491 Whirlpool Spark Module
17	WP3196175 Whirlpool Screw
18A	BRACKET, EYE BROW (WHITE)
18	W11443964 Whirlpool Support Bracket
