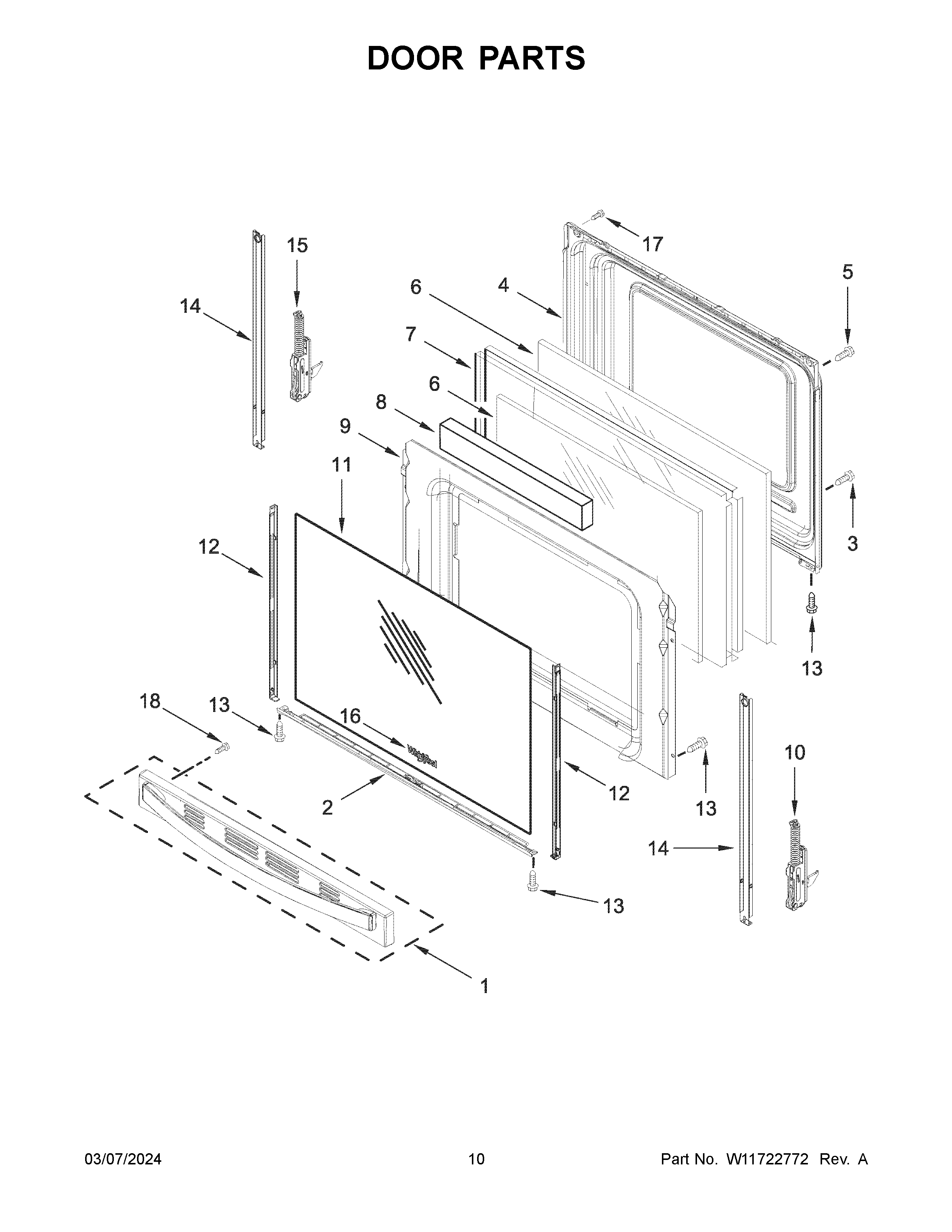

WFGS3530RW0 06 – DOOR PARTS

Products

Position	Product
1	HANDLE AND VENT ASSEMBLY (BLACK)
1A	HNDLE-DOOR
2	W11569689 Whirlpool Door Trim
2A	W11594186 Whirlpool Door Trim
3	W10777162 Whirlpool Screw
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10388635 Whirlpool Door Hinge
11A	GLASS-DOOR
11	GLASS-DOOR
12C	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12B	WP8523172 Whirlpool Left Door Trim
12A	W10761014 Whirlpool Right Door Trim
13	WP355214 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10440013 Whirlpool Door Hinge
16	W11178521 Whirlpool Dishwasher Nameplate
17	WPW10200660 Whirlpool Range Oven Door Handle Screw
18	W10896982 Whirlpool Compactor Screw
