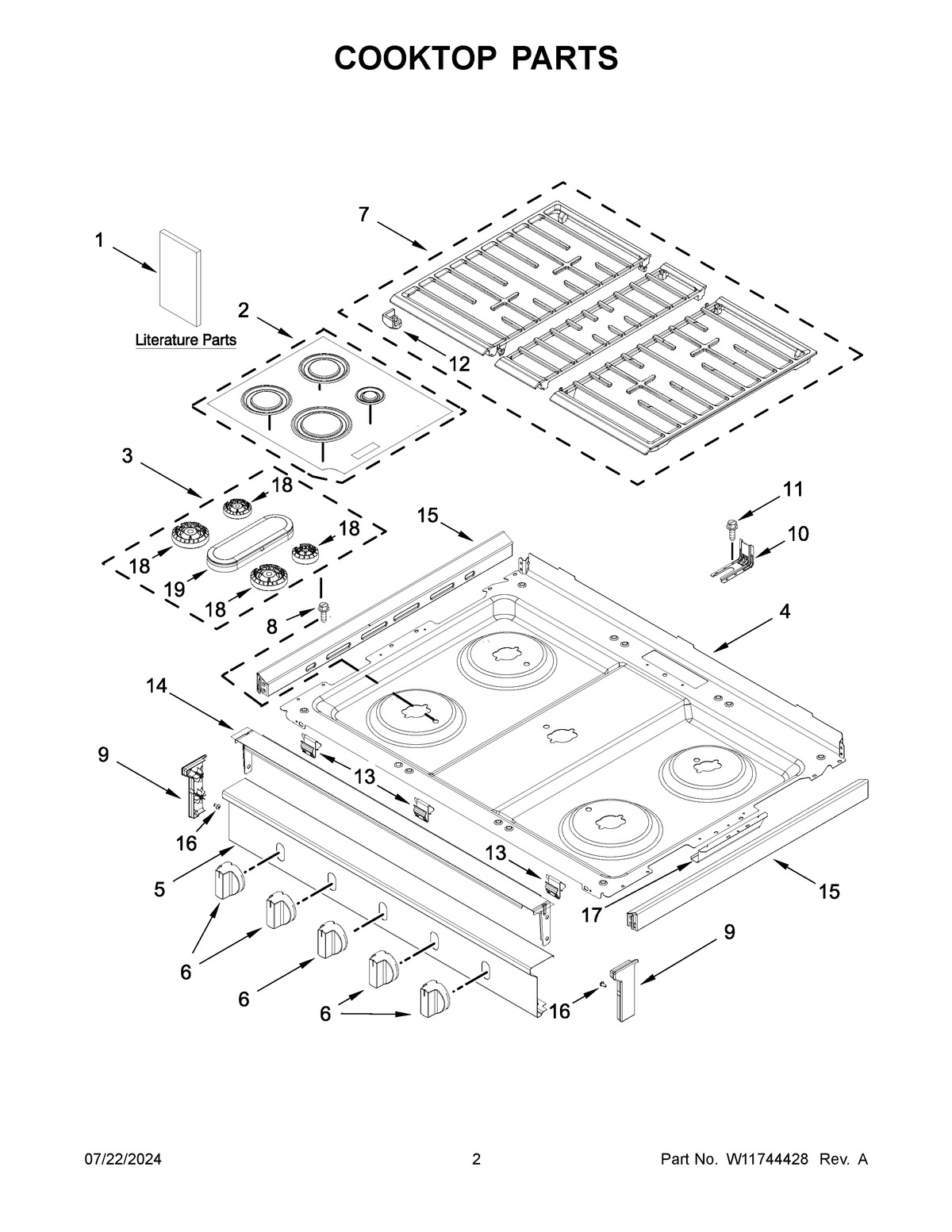

WFGS5030RV0 02 – COOKTOP PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11707251 Whirlpool Wire Harness
NIHARNESS, MAIN
NI3196896 Whirlpool Clip
NIWPW10182767 Whirlpool Wire Tie
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
1BQUICK START GUIDE
1OWNERS MANUAL
1ATECH SHEET
2W11455147 Whirlpool Surface Burner Cap
3W11662402 Whirlpool Range Burner Head
4COOKTOP (BLACK)
5PANL-MNFLD
5AW11730291 Whirlpool Panel Modified
6KNOB, CONTROL (BLACK STAINLESS)
6AKNOB, CONTROL (STAINLESS)
7GRATE KIT (BLACK (SET OF 3))
8W11241230 Whirlpool Screw
9BENDCAP-PNL
9CENDCAP-PNL
9ENDCAP-PNL
9AENDCAP-PNL
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12GRATE, BUMPER
13SPRING, CLIP
14BRKT-SUPRT
15COOKTOP FRAME (BLACK)
16W11245710 Whirlpool Refrigerator Screw
17BRACKET, SPARK MODULE
18BW11435657 Whirlpool Burner Head
18AW11435659 Whirlpool Burner Head
18W11435630 Whirlpool Oven Burner Head
19W11475513 Whirlpool Top Burner Assembly
