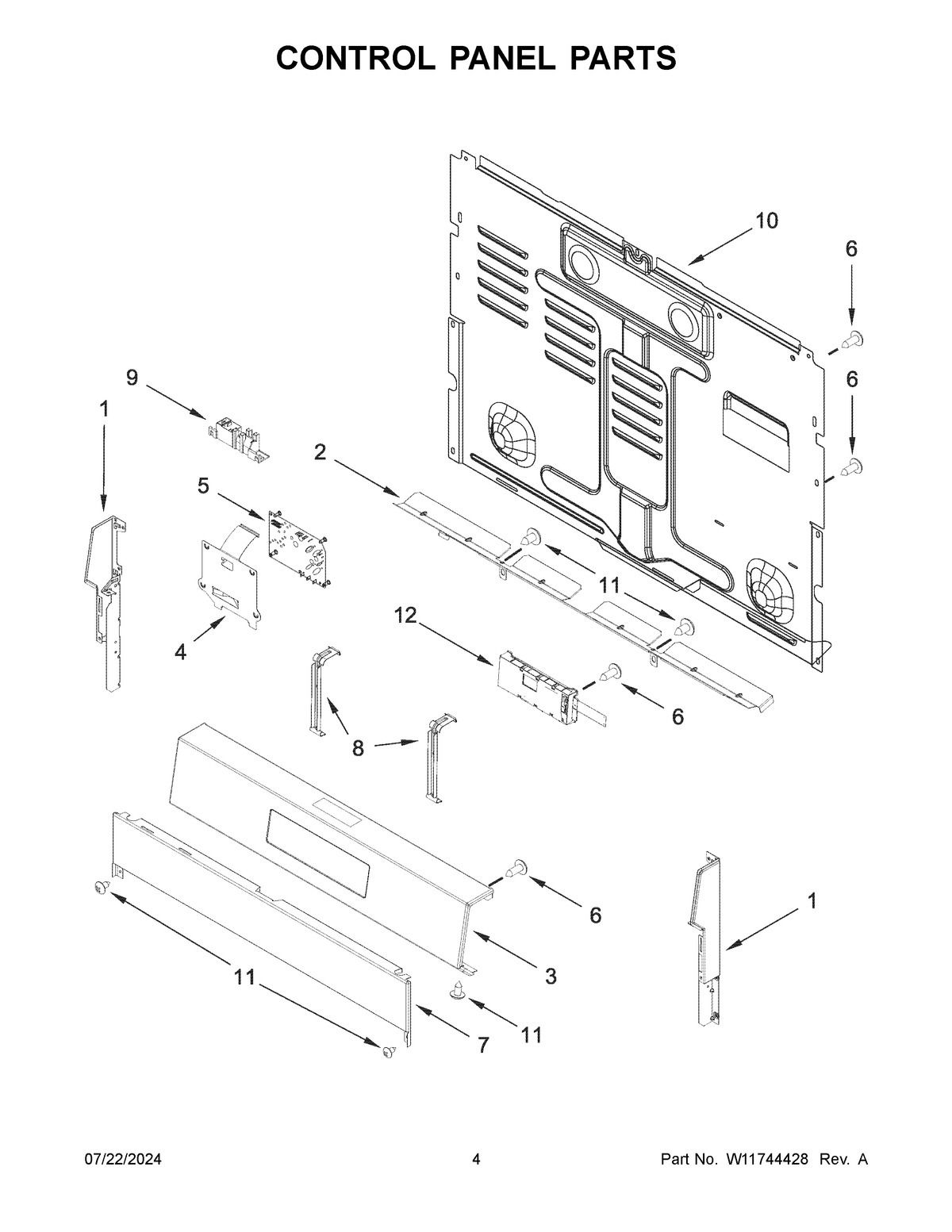

WFGS5030RV0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP-PNL
1A	ENDCAP-PNL
2	SHIELD, HEAT
3A	PANL-CNTRL
3	PANEL, CONTROL (BLACK STAINLESS)
4	BRACKET, MOUNTING (DSI)
5	W10898291 Whirlpool Spark Module
6	SCREW
7	PANEL, LOWER (BLACK)
8	BRACKET, CONTROL
9	W11703692 Whirlpool Speaker Module
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12	CNTRL-ELEC + CORE
