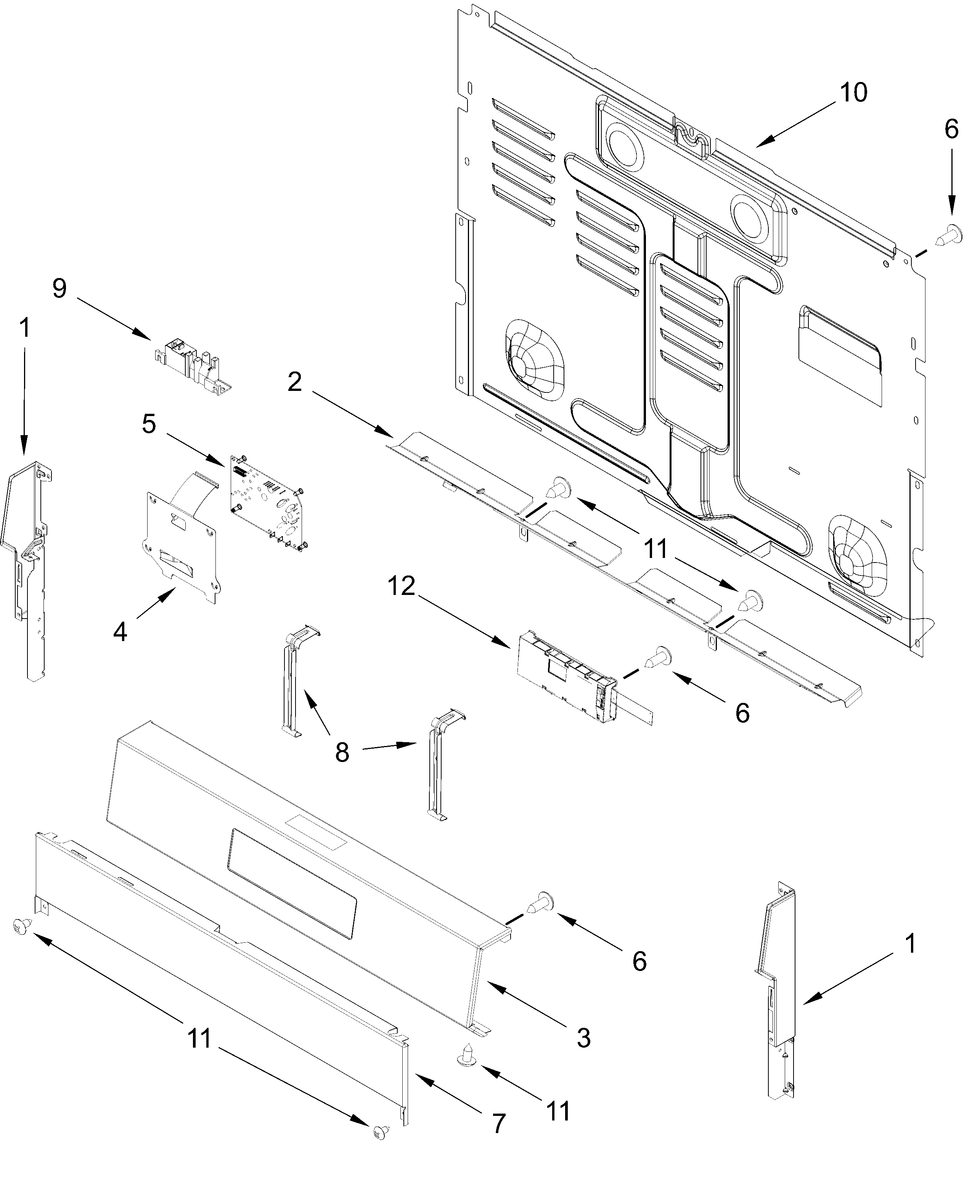

WFGS5030RW0 CONTROL PANEL PARTS

WFGS5030RW0 CONTROL PANEL PARTS

Written by

in

WFGS5030RW0 CONTROL PANEL PARTS

Products

Position	Product
	ENDCAP-PNL
	Panel, Control (White)
	ENDCAP (WHITE(RIGHT))
	Panel, Lower (White)
	ENDCAP (WHITE (LEFT))
1	ENDCAP-PNL
2	SHIELD, HEAT
3	Panel, Control (Black)
4	BRACKET, MOUNTING (DSI)
5	W10898291 Whirlpool Spark Module
6	SCREW
7	PANEL, LOWER (BLACK)
8	BRACKET, CONTROL
9	W11703692 Whirlpool Speaker Module
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12	CNTRL-ELEC + CORE
