WFGS5030RW0 COOKTOP PARTSadmin2025-04-26T11:15:26+00:00WFGS5030RW0 COOKTOP PARTS
Products
| Position | Product |
|---|
| FOLLOWING PARTS NOT ILLUSTRATED |
| PANEL, MANIFOLD END CAP (WHITE (LEFT)) |
| PANEL, MANIFOLD END CAP (WHITE (RIGHT)) |
| HARNESS, MAIN |
| QUICK START GUIDE |
| Knob (White) |
| OWNERS MANUAL |
| (Left Front, Right Front) |
| TECH SHEET |
| (Right Rear) |
| (Left Rear) |
| Panel, Manifold (White) |
| W11707251 Whirlpool Wire Harness |
| PANEL, MANIFOLD END CAP (BLACK (RIGHT)) |
| W11435659 Whirlpool Burner Head |
| 3196896 Whirlpool Clip |
| 16515 Whirlpool Clip |
| 3400964 Whirlpool Oven Clip |
| WPW10182767 Whirlpool Wire Tie |
| W11435657 Whirlpool Burner Head |

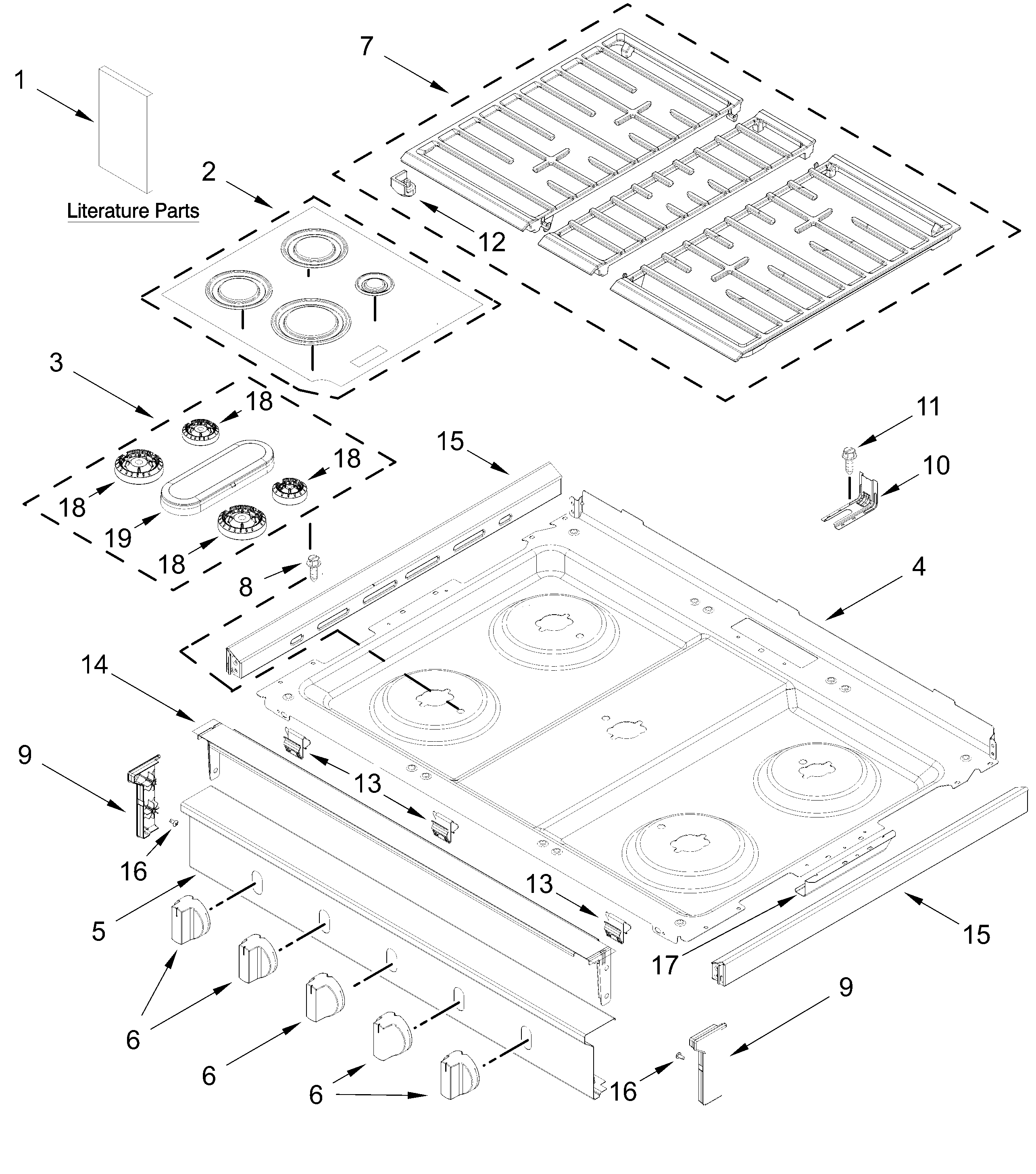

| 1 | Literature Parts |
| 2 | W11455147 Whirlpool Surface Burner Cap |
| 3 | W11662402 Whirlpool Range Burner Head |
| 4 | COOKTOP (BLACK) |
| 5 | Panel, Manifold (Black) |
| 6 | W11730315 Whirlpool Knob Assembly |
| 7 | GRATE KIT (BLACK (SET OF 3)) |
| 8 | W11241230 Whirlpool Screw |
| 9 | PANEL, MANIFOLD END CAP (BLACK (LEFT)) |
| 10 | W11447673 Whirlpool Range Tip Anchor |
| 11 | SCREW, ANTI-TIP KIT |
| 12 | GRATE, BUMPER |
| 13 | SPRING, CLIP |
| 14 | BRKT-SUPRT |
| 15 | COOKTOP FRAME (BLACK) |
| 16 | W11245710 Whirlpool Refrigerator Screw |
| 17 | BRACKET, SPARK MODULE |
| 18 | W11435630 Whirlpool Oven Burner Head |
| 19 | W11475513 Whirlpool Top Burner Assembly |
