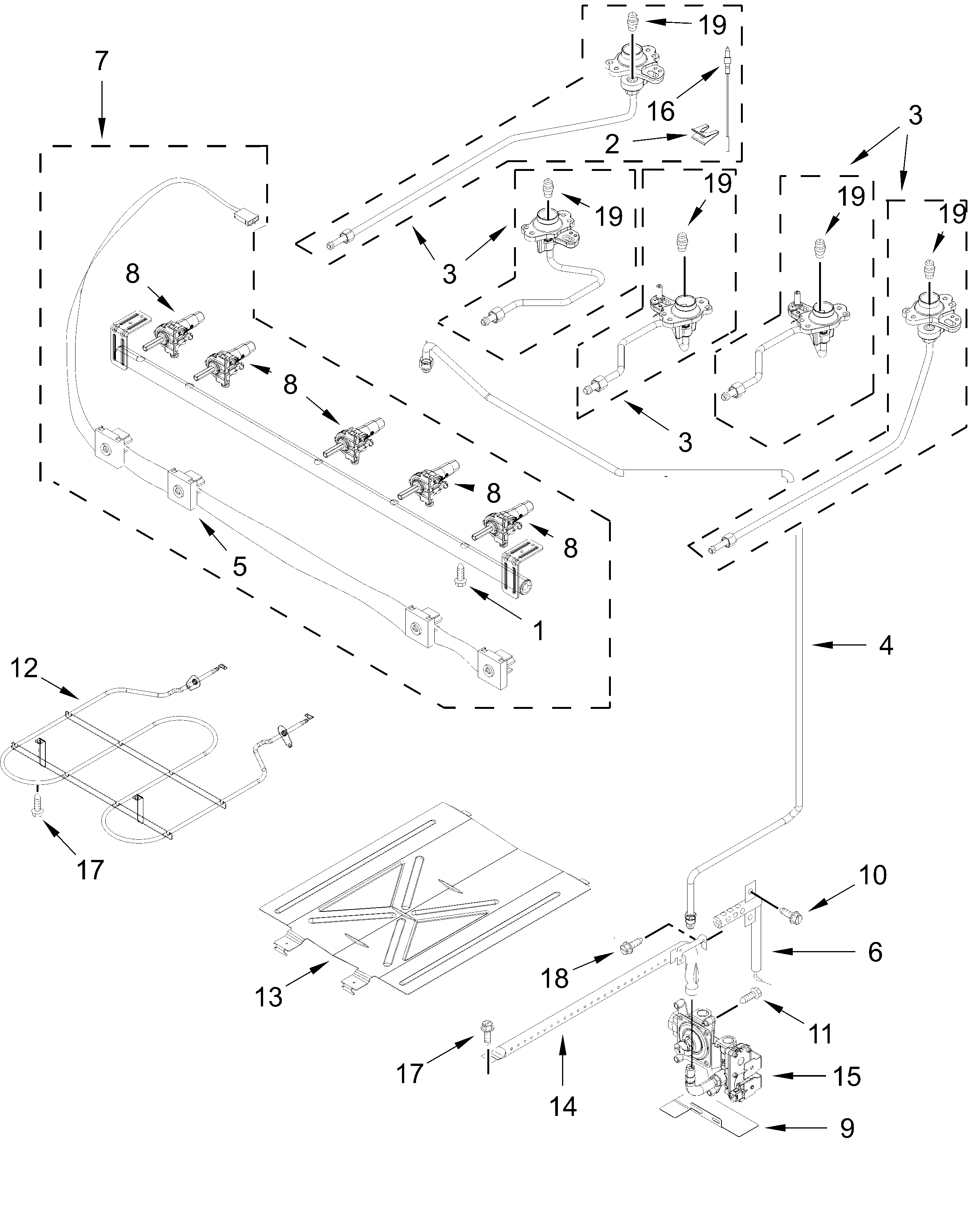

WFGS5030RW0 MANIFOLD PARTS

Products

Position	Product
	VALVE, SINGLE (RIGHT REAR)
	W10849717 Whirlpool Orifice Spud
	(Left Rear)
	(Right Front)
	(Right Rear)
	W10907868 Whirlpool Spud Orifice
	ORIFICE
	LP 5 ORIFICE CONVERSION KIT
	ORIFICE (12K) (LEFT FRONT AND LEFT REAR)
	VALVE, SINGLE (RIGHT FRONT AND CENTER)
	(Left Front)
	W11677633 Whirlpool Spud Orifice
	W11453920 Whirlpool Surface Igniter
	HOLDER-ORF
	FOLLOWING PARTS NOT ILLUSTRATED
	(Right Front, Right Rear, Center)
	ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) (INCLUDES ORIFICE)
	(Left Front, Left Rear)
	(Left Front, Right Front, Center)
	(Center)
	ORIFICE HOLDER ASSEMBLY (18K) (RIGHT FRONT) (INCLUDES ORIFICE)
	ORIFICE HOLDER ASSEMBLY (10K) (LEFT REAR) (INCLUDES ORIFICE)
1	SCREW
2	W11684564 Whirlpool Clip Assembly
3	ORIFICE HOLDER ASSEMBLY (15K) (LEFT FRONT)
4	TUBING (MANIFOLD TO REGULATOR)
5	W11727166 Whirlpool Wire Harness
6	W11524031 Whirlpool Oven Igniter
7	MANIFOLD ASSEMBLY
8	VALVE, SINGLE (LEFT REAR)
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	W10714060 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W10898290 Whirlpool Gas Valve
16	W11453940 Whirlpool Surface Igniter
17	SCREW
18	3196265 Whirlpool Oven Screw
19	ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER)
