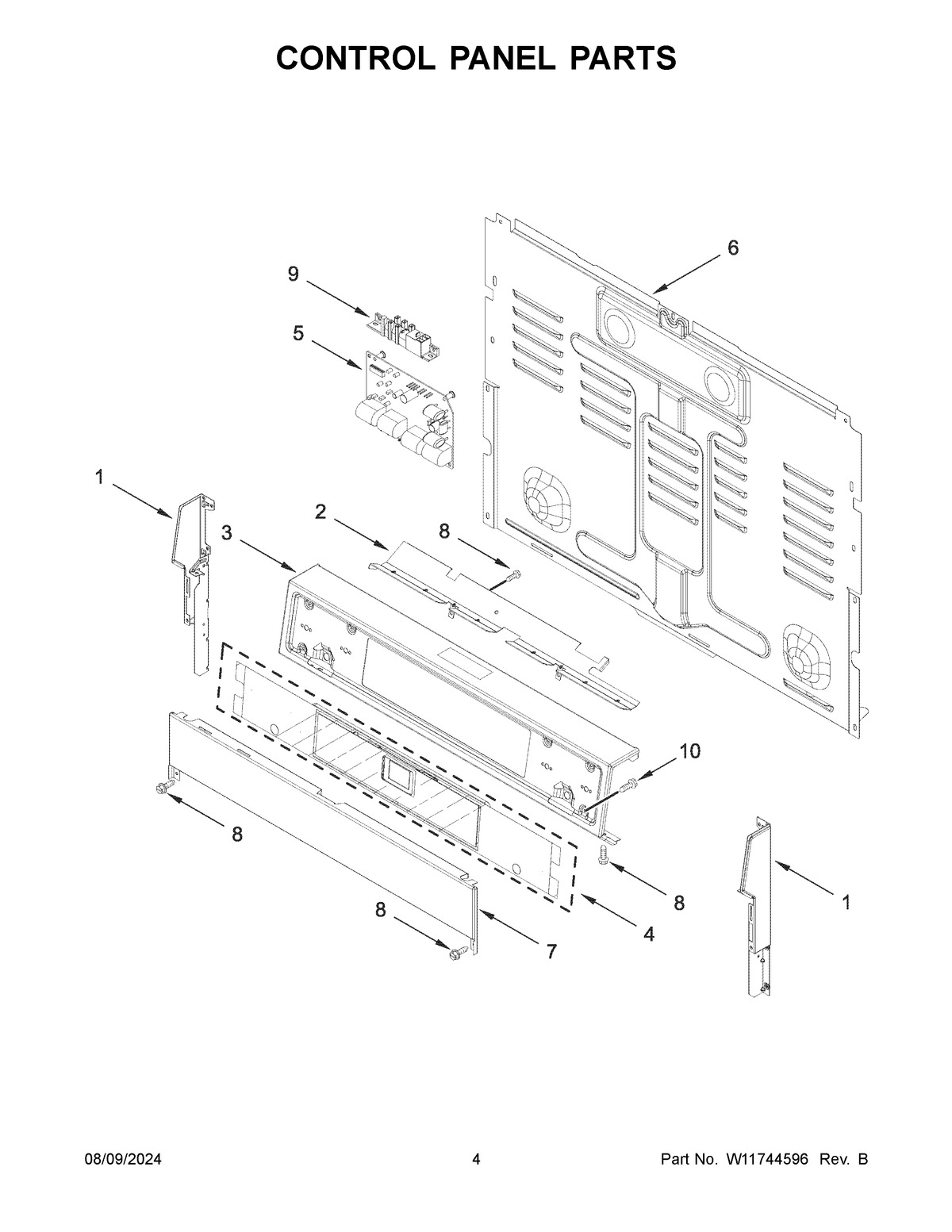

WFGS7530RB0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDPOST, CONSOLE (BLACK (RIGHT))
1	ENDPOST, CONSOLE (BLACK (LEFT))
1C	ENDPOST, CONSOLE (WHITE (RIGHT))
1B	ENDPOST, CONSOLE (WHITE (LEFT))
2	SHIELD, HEAT
3	CONSOLE (BLACK)
3A	CONSOLE (WHITE)
4	W11730273-includeCORE Whirlpool Electronic Control+Core
5	W10898291 Whirlpool Spark Module
6	COVER, UPPER REAR
7A	Panel, Lower (White)
7	PANEL, LOWER (BLACK)
8	WP3196557 Whirlpool Screw
9	W11703692 Whirlpool Speaker Module
10	W10491985 Whirlpool Screw
