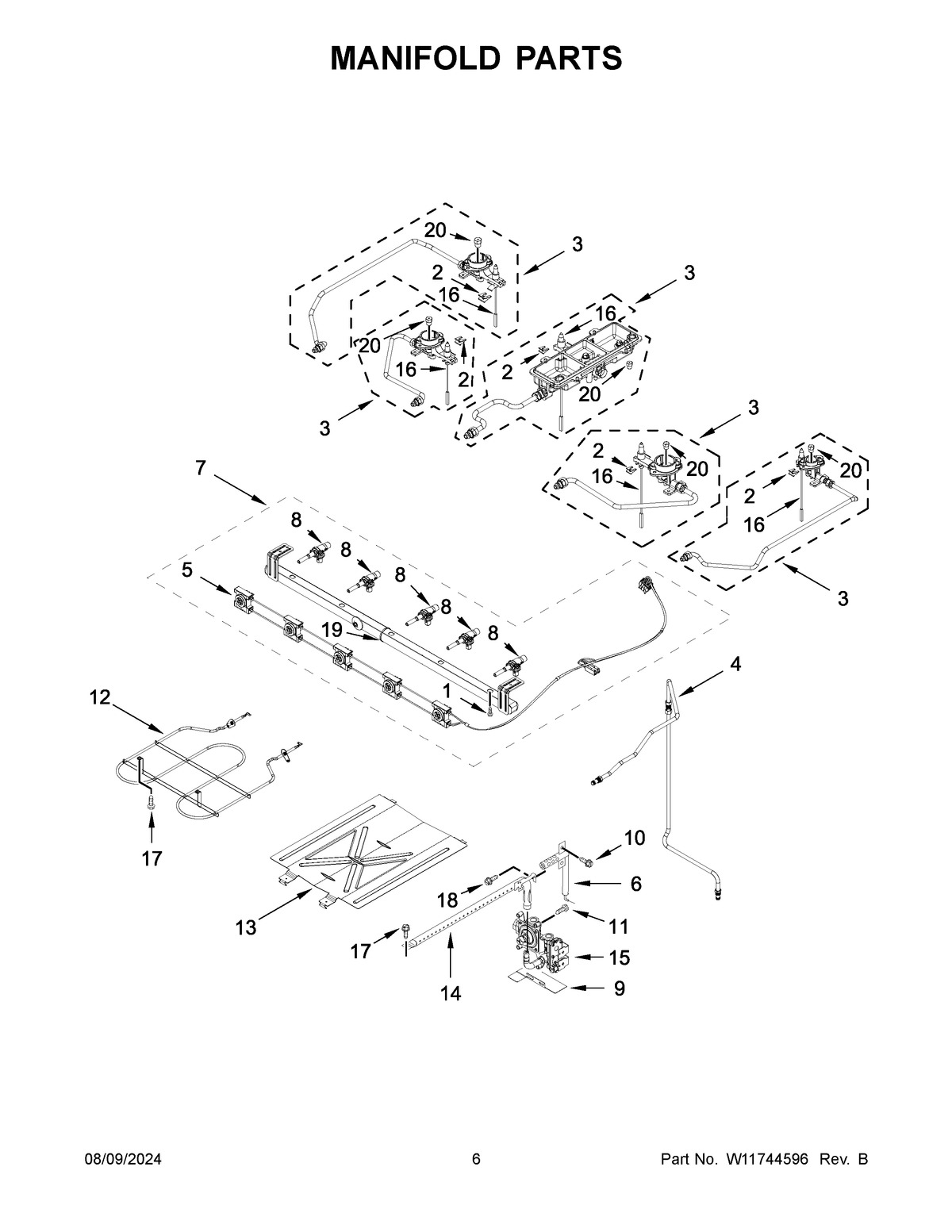

WFGS7530RB0 04 – MANIFOLD PARTS

Products

Position	Product
NI	ORIFICE
NI	LP CONVERSION KIT
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	SCREW
2	W11684564 Whirlpool Clip Assembly
3	ORIFICE HOLDER ASSEMBLY (18K) (LEFT FRONT) (INCLUDES ORIFICE)
3A	ORIFICE HOLDER ASSEMBLY (10K) (LEFT REAR) (INCLUDES ORIFICE)
3B	ORIFICE HOLDER ASSEMBLY (18K) (RIGHT FRONT) (INCLUDES ORIFICE)
3C	ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) (INCLUDES ORIFICE)
3D	ORIFICE HOLDER ASSEMBLY (12K) (CENTER) (INCLUDES ORIFICE)
4	TUBING (MANIFOLD TO REGULATOR)
5	W11727166 Whirlpool Wire Harness
6	W11524031 Whirlpool Oven Igniter
7	MANIFOLD ASSEMBLY
8B	VALVE, SINGLE (RIGHT REAR)
8A	VALVE, SINGLE (LEFT REAR)
8	VALVE, SINGLE (RIGHT FRONT AND CENTER)
8C	VALVE, SINGLE (CENTER)
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	W10714060 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W10898290 Whirlpool Gas Valve
16	W11453940 Whirlpool Surface Igniter
16A	W11453920 Whirlpool Surface Igniter
16B	ELECTRODE (CENTER)
17	SCREW
18	3196265 Whirlpool Oven Screw
19	WPW10182767 Whirlpool Wire Tie
20	ORIFICE (NOT SERVICED)
