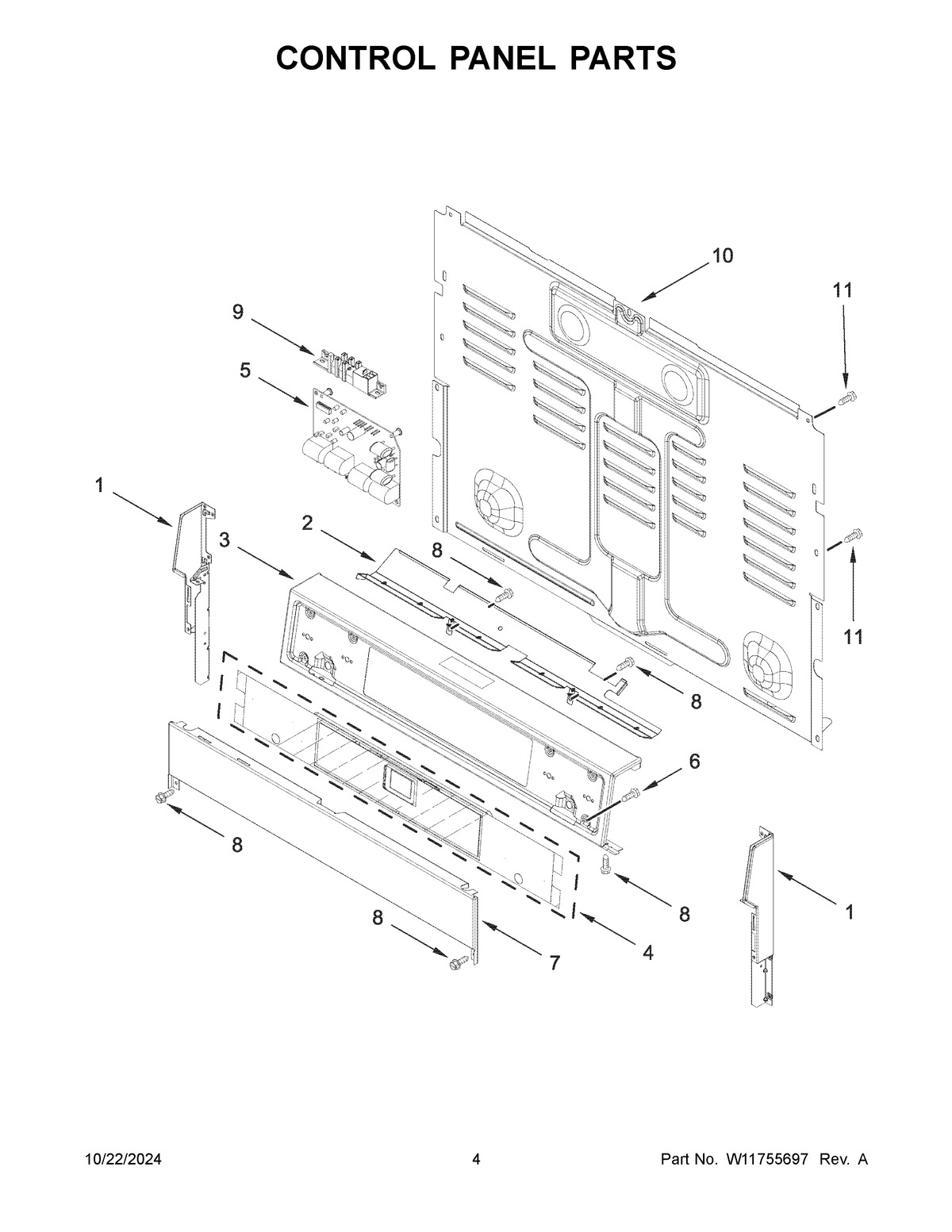

WFGS7530RV1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDPOST, CONSOLE (BLACK (LEFT))
1A	ENDPOST, CONSOLE (BLACK (RIGHT))
2	SHIELD, HEAT
3	CONSOLE (BLACK STAINLESS)
3A	PANL-CNTRL
4	W11730273-includeCORE Whirlpool Electronic Control+Core
5	W10898291 Whirlpool Spark Module
6	W10491985 Whirlpool Screw
7	PANEL, LOWER (BLACK STAINLESS)
7A	TRIM-PANEL
8	WP3196557 Whirlpool Screw
9	W11703692 Whirlpool Speaker Module
10	COVER, UPPER REAR
11	SCREW
