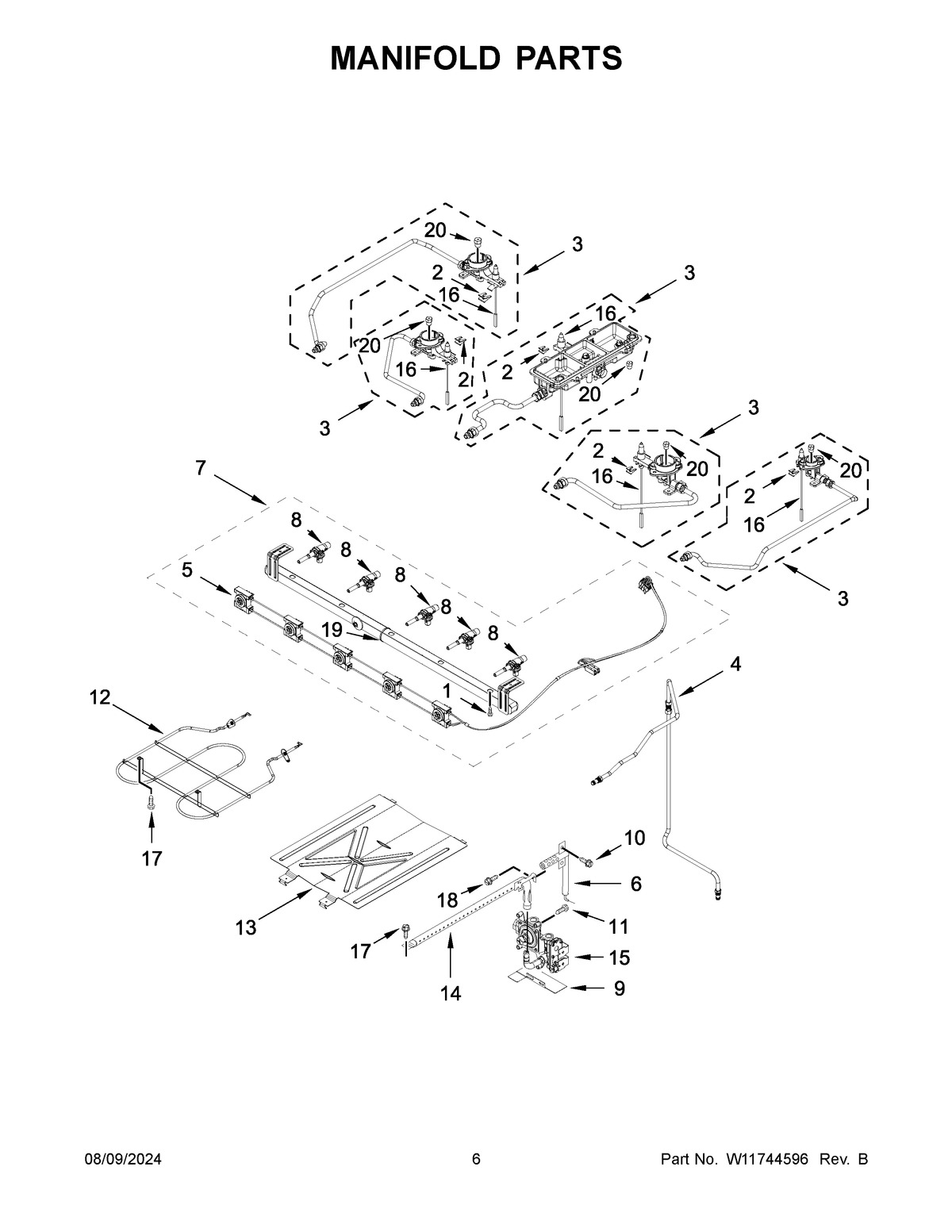

WFGS7530RW0 04 – MANIFOLD PARTS

WFGS7530RW0 04 – MANIFOLD PARTS

Written by

in

WFGS7530RW0 04 – MANIFOLD PARTS

Products

PositionProduct
NIORIFICE
NILP CONVERSION KIT
NIFOLLOWING PARTS NOT ILLUSTRATED
1SCREW
2W11684564 Whirlpool Clip Assembly
3ORIFICE HOLDER ASSEMBLY (18K) (LEFT FRONT) (INCLUDES ORIFICE)
3AORIFICE HOLDER ASSEMBLY (10K) (LEFT REAR) (INCLUDES ORIFICE)
3BORIFICE HOLDER ASSEMBLY (18K) (RIGHT FRONT) (INCLUDES ORIFICE)
3CORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) (INCLUDES ORIFICE)
3DORIFICE HOLDER ASSEMBLY (12K) (CENTER) (INCLUDES ORIFICE)
4TUBING (MANIFOLD TO REGULATOR)
5W11727166 Whirlpool Wire Harness
6W11524031 Whirlpool Oven Igniter
7MANIFOLD ASSEMBLY
8BVALVE, SINGLE (RIGHT REAR)
8AVALVE, SINGLE (LEFT REAR)
8VALVE, SINGLE (RIGHT FRONT AND CENTER)
8CVALVE, SINGLE (CENTER)
9W10224921 Whirlpool Bracket Mounting
10W11684507 Whirlpool Screw
11WP3400016 Whirlpool Screw Assembly
12W10714060 Whirlpool Broiler Burner
13WPW10184491 Whirlpool Burner Baffle
14WP9758078 Whirlpool Oven Burner
15W10898290 Whirlpool Gas Valve
16W11453940 Whirlpool Surface Igniter
16AW11453920 Whirlpool Surface Igniter
16BELECTRODE (CENTER)
17SCREW
183196265 Whirlpool Oven Screw
19WPW10182767 Whirlpool Wire Tie
20ORIFICE (NOT SERVICED)
