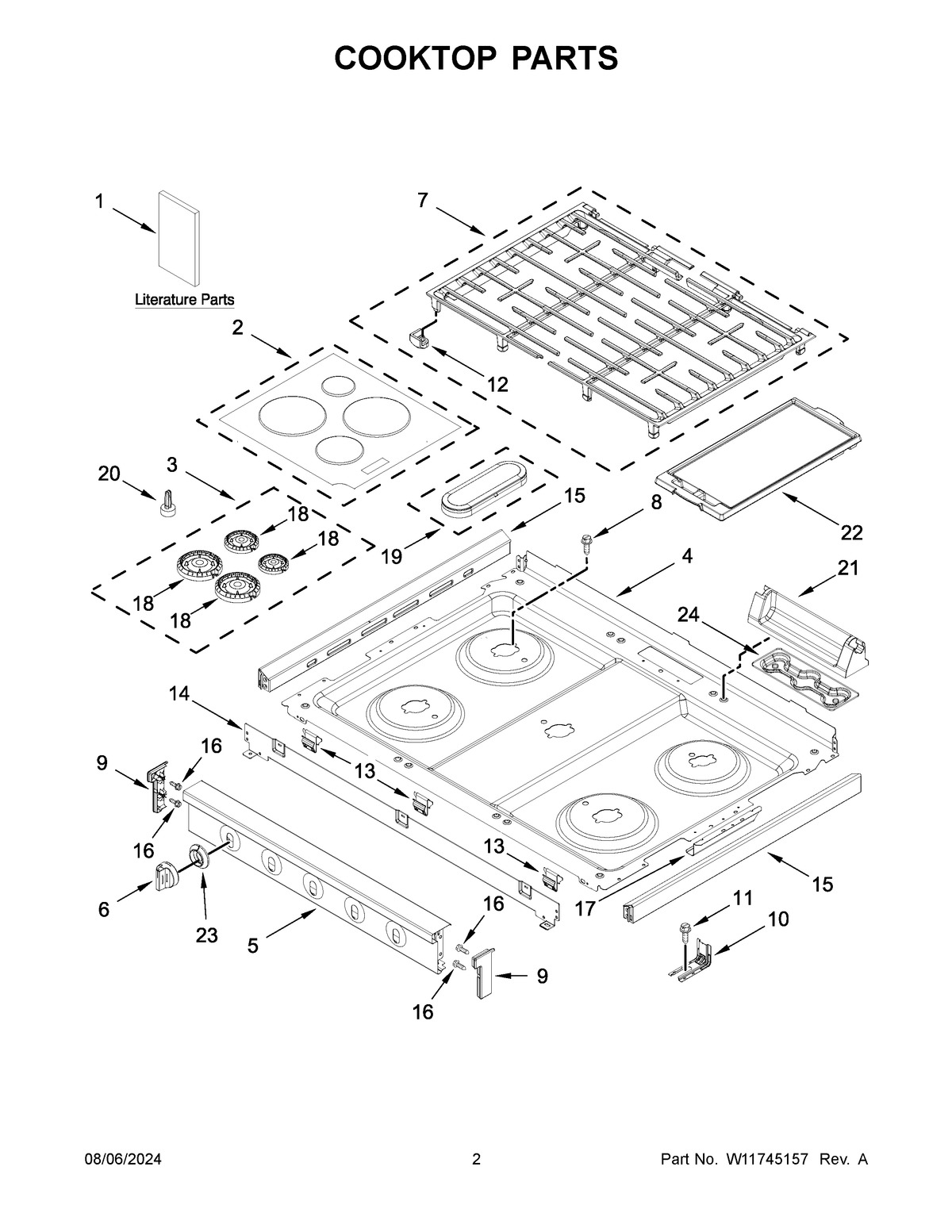

WFGS7530RZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, COOKTOP
NI	HARNESS, BAKE
NI	3196896 Whirlpool Clip
NI	HARNESS, MAIN
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1	OWNER'S MANUAL
1B	QUICK START GUIDE
1A	TECH SHEET
2	W11605759 Whirlpool Burner Cap
3	BURNR-HEAD
4	COOKTOP
5	PANL-MNFLD
5A	W11730291 Whirlpool Panel Modified
6A	KNOB, CONTROL (STAINLESS)
6	KNOB, CONTROL (BLACK STAINLESS)
7	GRATE KIT (BLACK (SET OF 2))
8	W11241230 Whirlpool Screw
9	ENDCAP-PNL
9A	ENDCAP-PNL
9B	ENDCAP-PNL
9C	ENDCAP-PNL
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	GRATE, BUMPER
13	SPRING, CLIP
14	BRKT-SUPRT
15	COOKTOP FRAME (BLACK)
16	W11245710 Whirlpool Refrigerator Screw
17	BRACKET, SPARK MODULE
18B	W11531098 Whirlpool Burner Head
18	W11531096 Whirlpool Burner Head
18A	W11531097 Whirlpool Burner – Head
19	OVAL FLAME SPREADER KIT (CENTER)
20	GLIDE, MAIN TOP
21	HINGE, GRATE (BLACK)
22	GRIDDLE
23	BEZEL (BLACK STAINLESS)
23A	BEZEL (STAINLESS)
24	HINGE, SPACER
