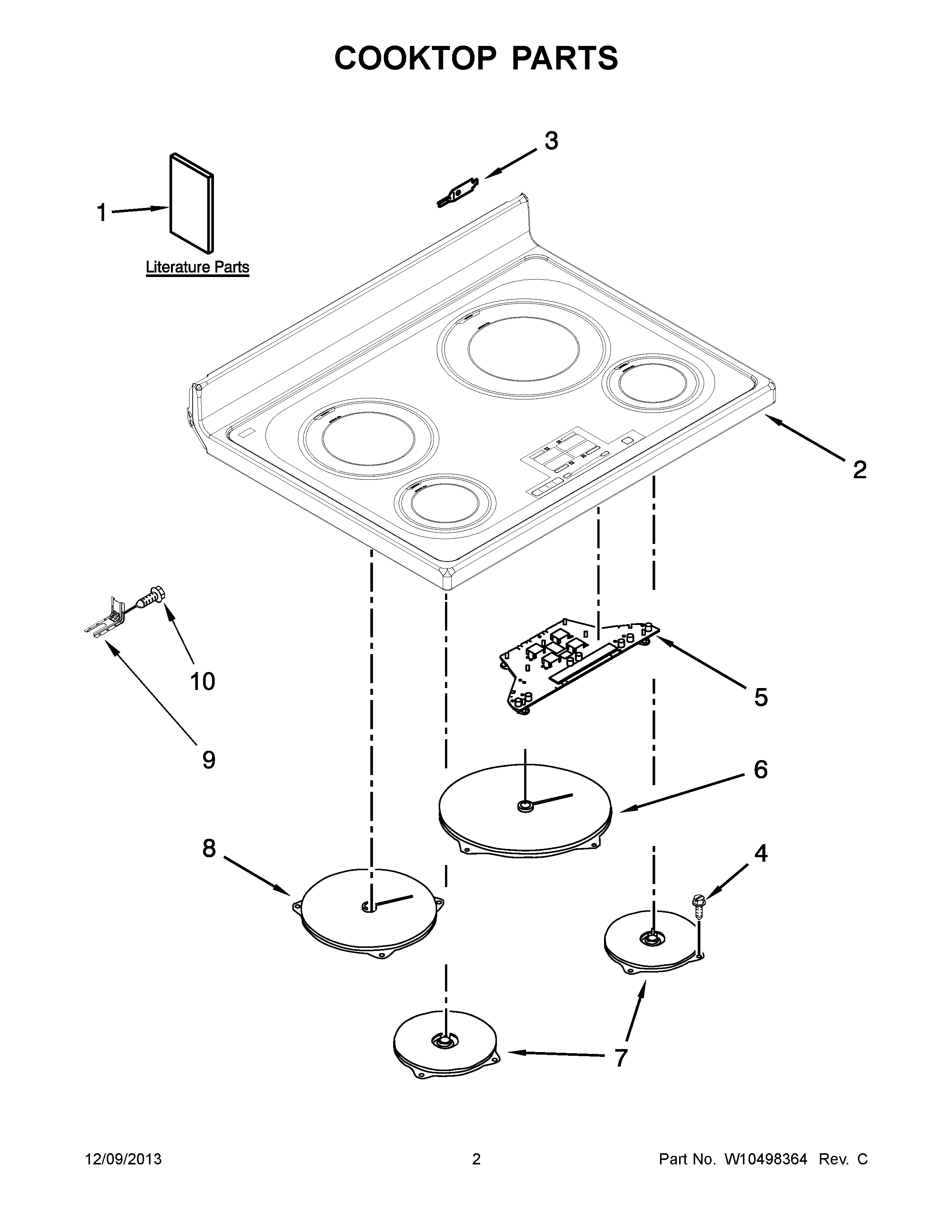

WFI910H0AS0 02 – COOKTOP PARTS

WFI910H0AS0 02 – COOKTOP PARTS

Written by

in

WFI910H0AS0 02 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1DIAGRAM, WIRING
1DIAGRAM, MRC
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
1QUICK START GUIDE
2W10514689 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4WP3196557 Whirlpool Screw
5W10818314 Whirlpool Display Assembly
6WPW10410578 Whirlpool Hot Plate
7WPW10410580 Whirlpool Hot Plate
8WPW10410579 Whirlpool Hot Plate
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
