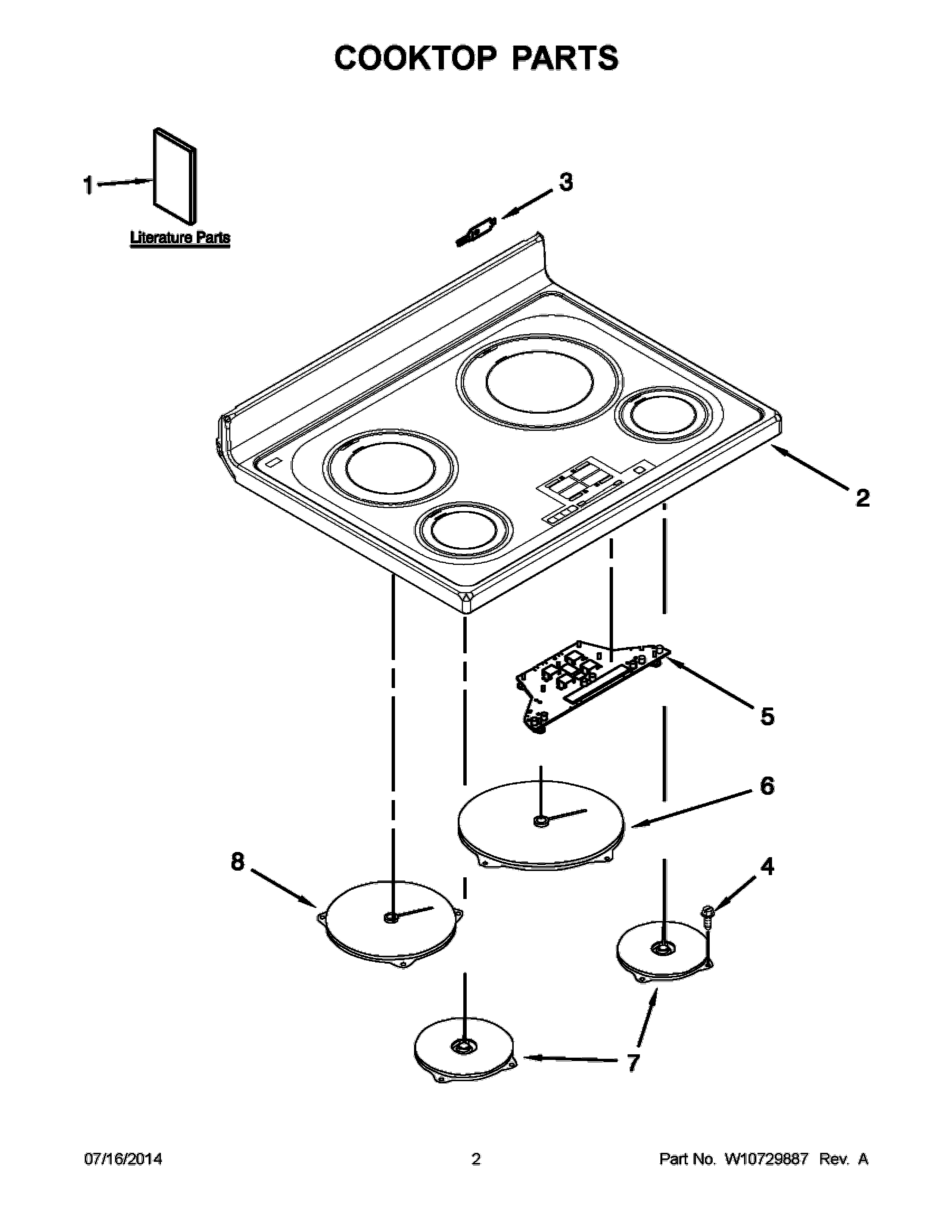

WFI910H0AS1 02 – COOKTOP PARTS

WFI910H0AS1 02 – COOKTOP PARTS

Written by

in

WFI910H0AS1 02 – COOKTOP PARTS

Products

PositionProduct
NISCREW
NIW10324944 Whirlpool Wire Harness
NIW10324946 Whirlpool Wire Harness
NIW10629299 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI3400964 Whirlpool Oven Clip
1BGUIDE, USE & CARE
1CDIAGRAM, WIRING
1DDIAGRAM, MRC
1INSTRUCTIONS, INSTALLATION
1ASAFER COOKING TIPS (ENGLISH
1EQUICK START GUIDE
2W10514689 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4WP3196557 Whirlpool Screw
5W10818314 Whirlpool Display Assembly
6WPW10410578 Whirlpool Hot Plate
7WPW10410580 Whirlpool Hot Plate
8WPW10410579 Whirlpool Hot Plate
