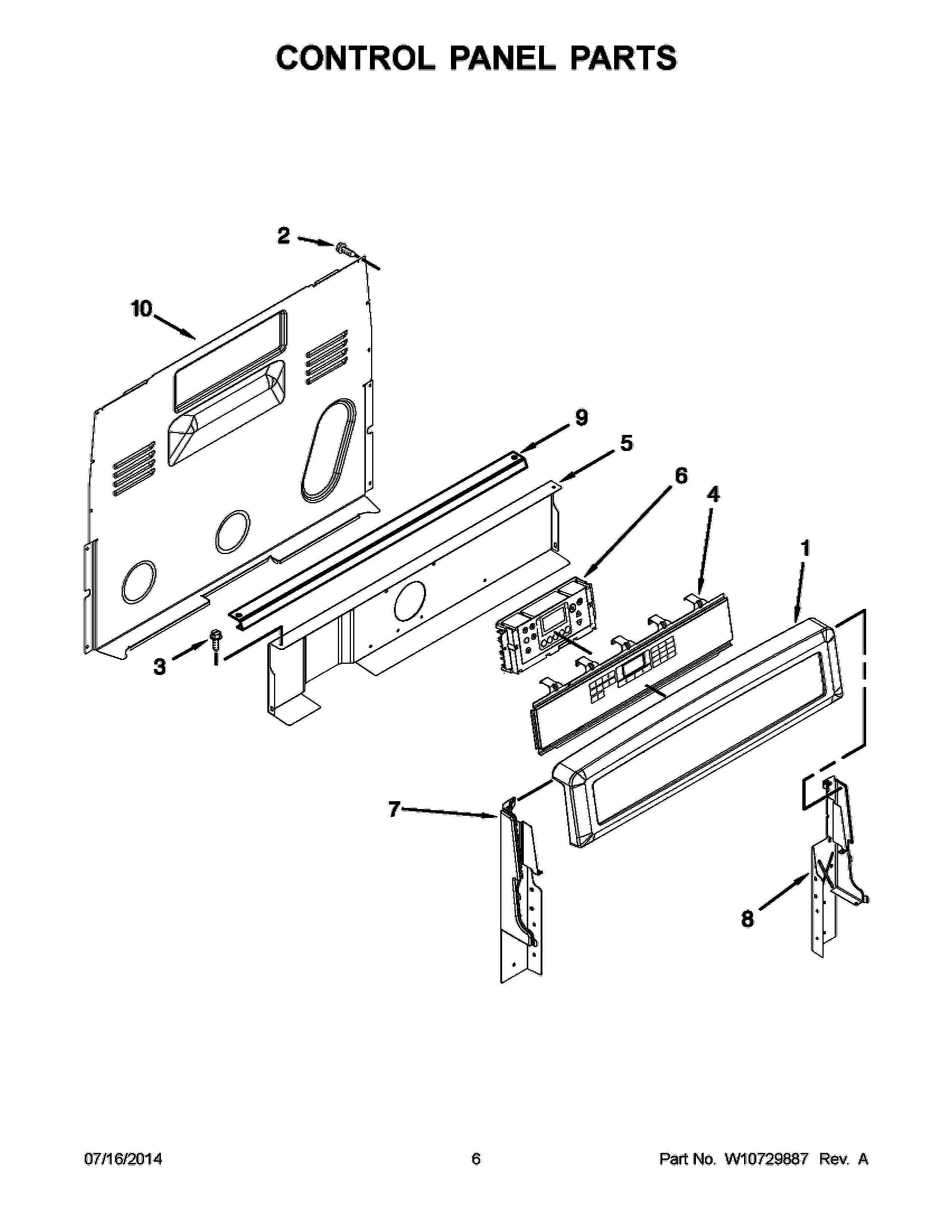

WFI910H0AS1 04 – CONTROL PANEL PARTS

WFI910H0AS1 04 – CONTROL PANEL PARTS

Written by

in

WFI910H0AS1 04 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10318550 Whirlpool Control Panel
2WP3196175 Whirlpool Screw
3SCREW
4W10678666 Whirlpool Membrane Switch
5W10134247 Whirlpool Heat Shield
6WPW10340311-includeCORE Whirlpool WPW10340311 Refrigerator Electronic Control Board + Core
7W11219664 Whirlpool Endcap Panel
8W11219665 Whirlpool Panel Endcap
9W10525121 Whirlpool Control Bracket
10WP8272473 Whirlpool Rear Cover
