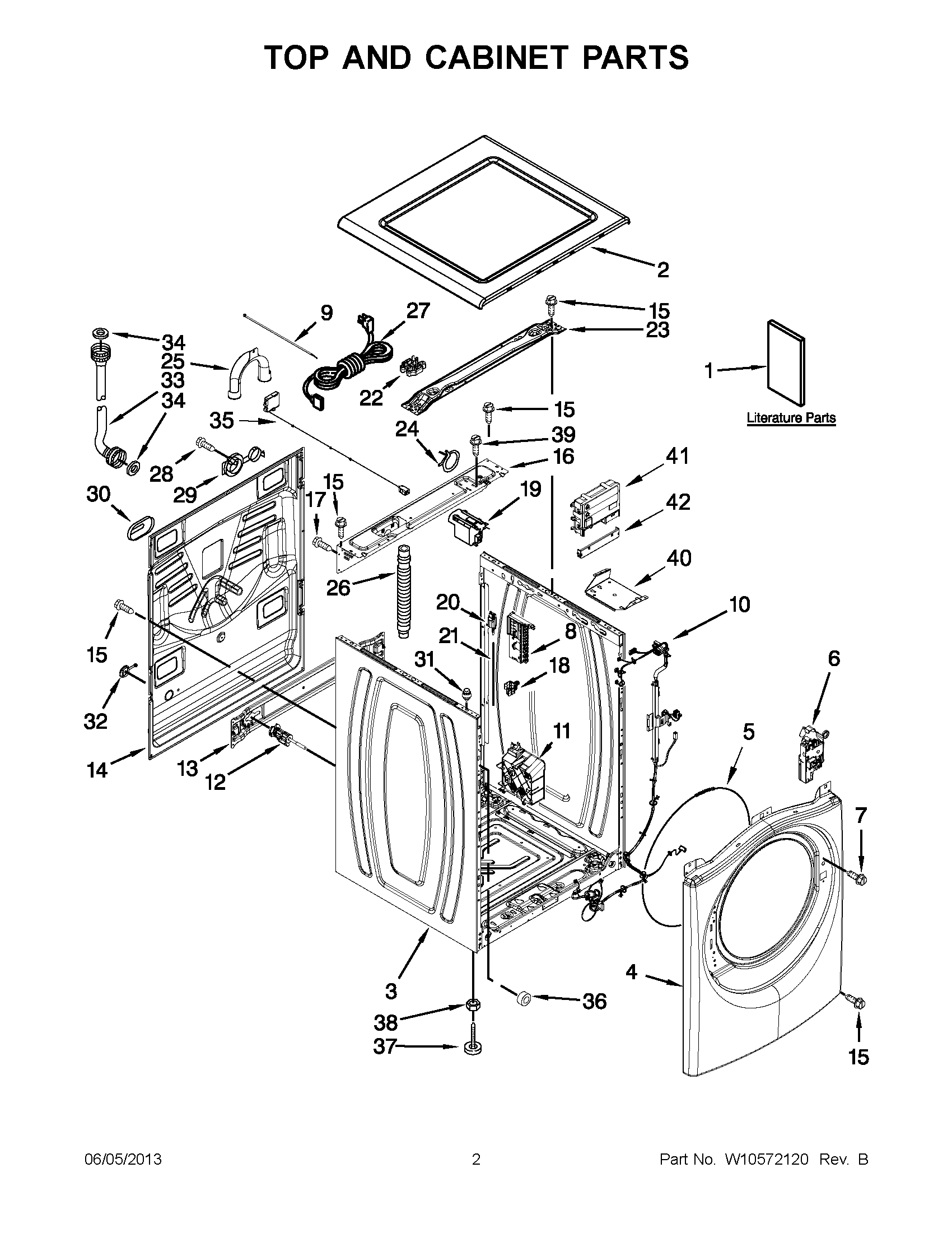

WFL98HEBU0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE TOP
1	FEATURE BOOKLET
1	INSTALLATION INSTRUCTIONS
1	TECH SHEET
1	USE & CARE GUIDE
2	WPW10316283 Whirlpool Top Cover
3	W11166598 Whirlpool Cabinet
4	WPW10460695 Whirlpool Control Panel
5	CLAMP
6	LATCH-WASHER DOOR
7	WP8540282 Whirlpool Screw
8	WPW10389927-includeCORE Whirlpool WPW10389927 Washer Electronic Control Board + Core
9	WPW10339879 Whirlpool Wire Tie
10	HARNESS, WIRING (LOWER MAIN)
11	WPW10374126 Whirlpool Control Board + Core
12	W10763470 Whirlpool Bolt
13	W10237498 Whirlpool Bracket Assembly
14	W11199206 Whirlpool Panel
15	WP489464 Whirlpool Refrigerator Screw
16	WPW10467483 Whirlpool Bracket
17	W11230114 Whirlpool Screw Assembly
18	WPW10181028 Whirlpool Clip
19	WPW10367632 Whirlpool Filter
20	WPW10448876 Whirlpool Pressure Switch
21	W11044559 Whirlpool Hose
22	W10245452 Whirlpool Retainer
23	W10467484 Whirlpool Bracket
24	WP356138 Whirlpool Hose Clamp
25	WPW10280024 Whirlpool Retainer
26	W11281268 Whirlpool Hose
27	W11035353 Whirlpool Washer Power Cord
28	WP3351614 Whirlpool Screw
29	W10854051 Whirlpool Cover Assembly
30	WP8540268 Whirlpool Cover Assembly
31	W10208380 Whirlpool Screw
32	W10304004 Whirlpool Cover
33	WP89503 Whirlpool Washer Fill Hose
34	WP16123 Whirlpool Washer
35	ANTENNA ASSEMBLY, FRONT
36	W10323182 Whirlpool Spacer
37	WPW10001130 Whirlpool Leveling Leg
38	WP3359452 Whirlpool Nut
39	8540329 Whirlpool Screw
40	BRACKET, ECM
41	ECM, SMART GRID
42	COVER, ECM CONNECTOR
