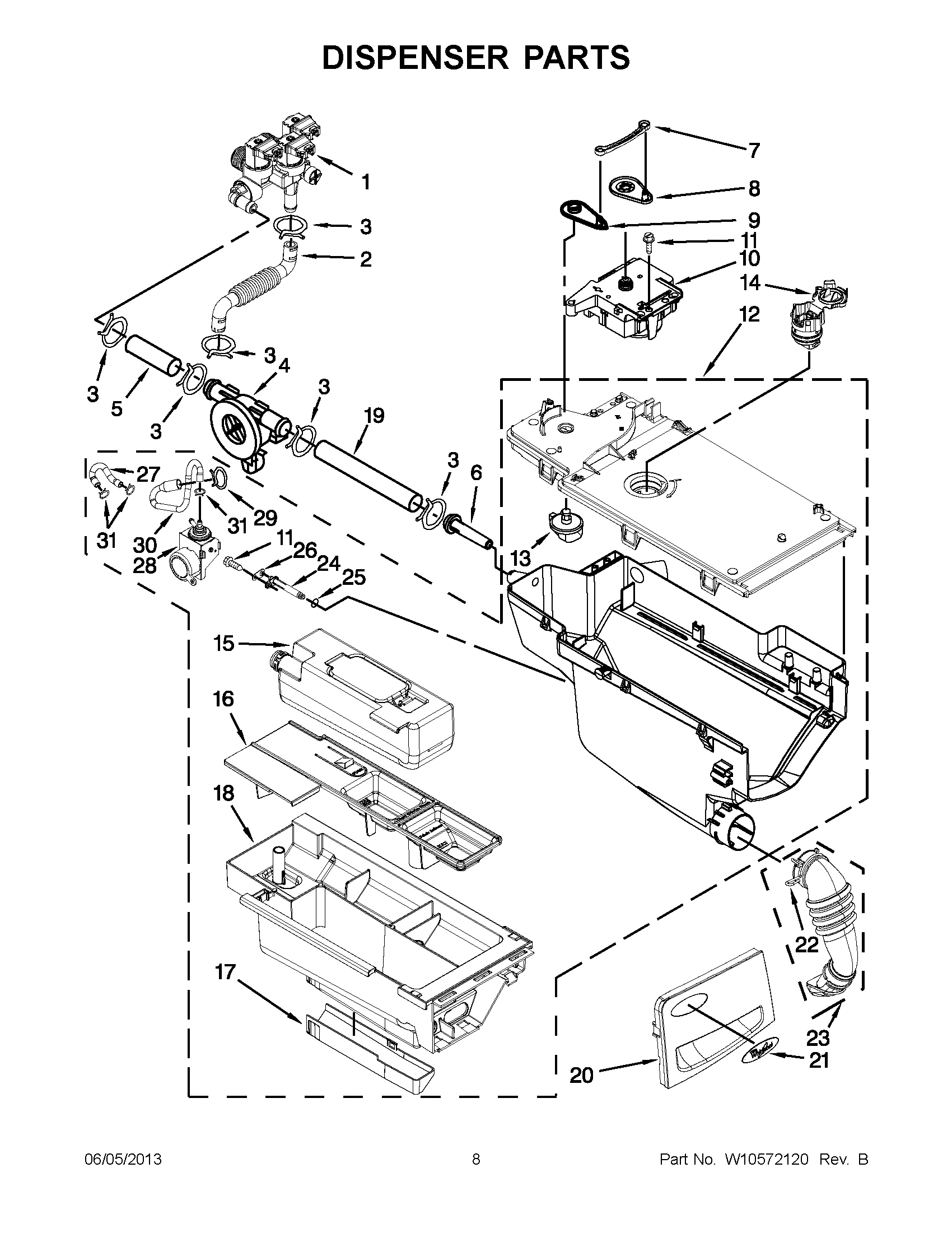

WFL98HEBU0 04 – DISPENSER PARTS

WFL98HEBU0 04 – DISPENSER PARTS

Written by

in

WFL98HEBU0 04 – DISPENSER PARTS

Products

PositionProduct
1WPW10247306 Whirlpool Valve
2W10239949 Whirlpool Hose
4FLOWMETER WASHER INLET
5W10538825 Whirlpool Hose
6WP8183181 Whirlpool Nozzle
7WP8183183 Whirlpool Lever
8WP8183184 Whirlpool Actuator Cam
9WPW10183517 Whirlpool Lever
10WPW10352973 Whirlpool DIS Switch
11WP8540282 Whirlpool Screw
12DISPENSER-WASHER
13WP8181712 Whirlpool Nozzle
14WPW10306690 Whirlpool Sensor
15W10250743A Whirlpool Washer Detergent Dispenser
16W10256661 Whirlpool Dispenser
17W10003140 Whirlpool Cover
18WPW10250723 Whirlpool Drawer
19W10538827 Whirlpool Hose Appliance
20HANDLE, DRAWER (INCLUDES ITEM 21) (SILVER)
21BADGE
22W10239910 Whirlpool Clamp
23WPW10239966 Whirlpool Hose
24W10250730 Whirlpool Tube Assembly
25W10250731 Whirlpool O-Ring
27W10268381 Whirlpool Hose Assembly
28W10842325 Whirlpool Dispenser Assembly
29WP596669 Whirlpool Hose Clamp
30W10268382 Whirlpool Hose
31CLAMP, HOSE
