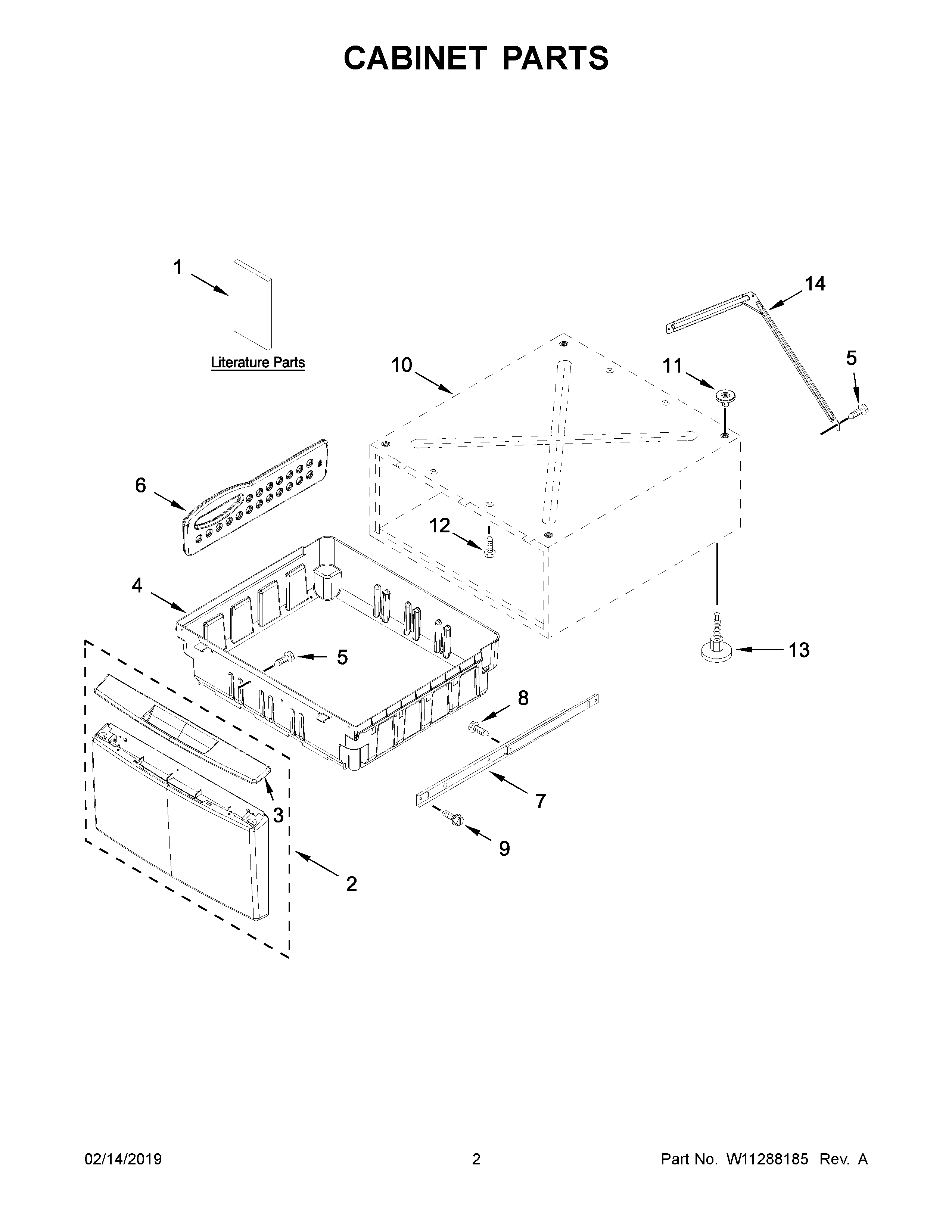

WFP2715HW0 02 – CABINET PARTS

Products

Position	Product
NI	350930 Whirlpool White Spray Paint
NI	PAINT, TOUCH-UP (1/2OZ. BLACK SHADOW (PEN))
NI	W10446202 Whirlpool Washer/Dryer Touch-Up Paint
NI	PAINT, TOUCH-UP (1/2OZ. BLACK SHADOW)
NI	CABINET (NOT A SERVICEABLE PART)
NI	799344 Whirlpool Refrigerator Paint
NI	72017 Whirlpool Appliance Touch-Up Paint White
NI	350938 Whirlpool Spray Gun
1	INSTALLATION INSTRUCTIONS
2	W11214908 Whirlpool Drawer
2A	W11214912 Whirlpool Drawer Assembly
2B	W11214914 Whirlpool Drawer Assembly
3A	W11202174 Whirlpool Handle
3	HANDLE, DRAWER (WHITE)
3B	HANDLE
4	W11047790 Whirlpool Drawer
5	WPW10213953 Whirlpool Screw
6	WPW10189999 Whirlpool Divider
7	WP8578394 Whirlpool Slide Assembly
8	WP3388228 Whirlpool Screw
9	WP9740849 Whirlpool Screw
11	WP8537982 Whirlpool Pad
12	WPW10346892 Whirlpool Screw
13	WP8563585 Whirlpool Foot Assembly
14	WPW10169550 Whirlpool Brace
