WFP2715RU0 02 – CABINET PARTS
Written by
in

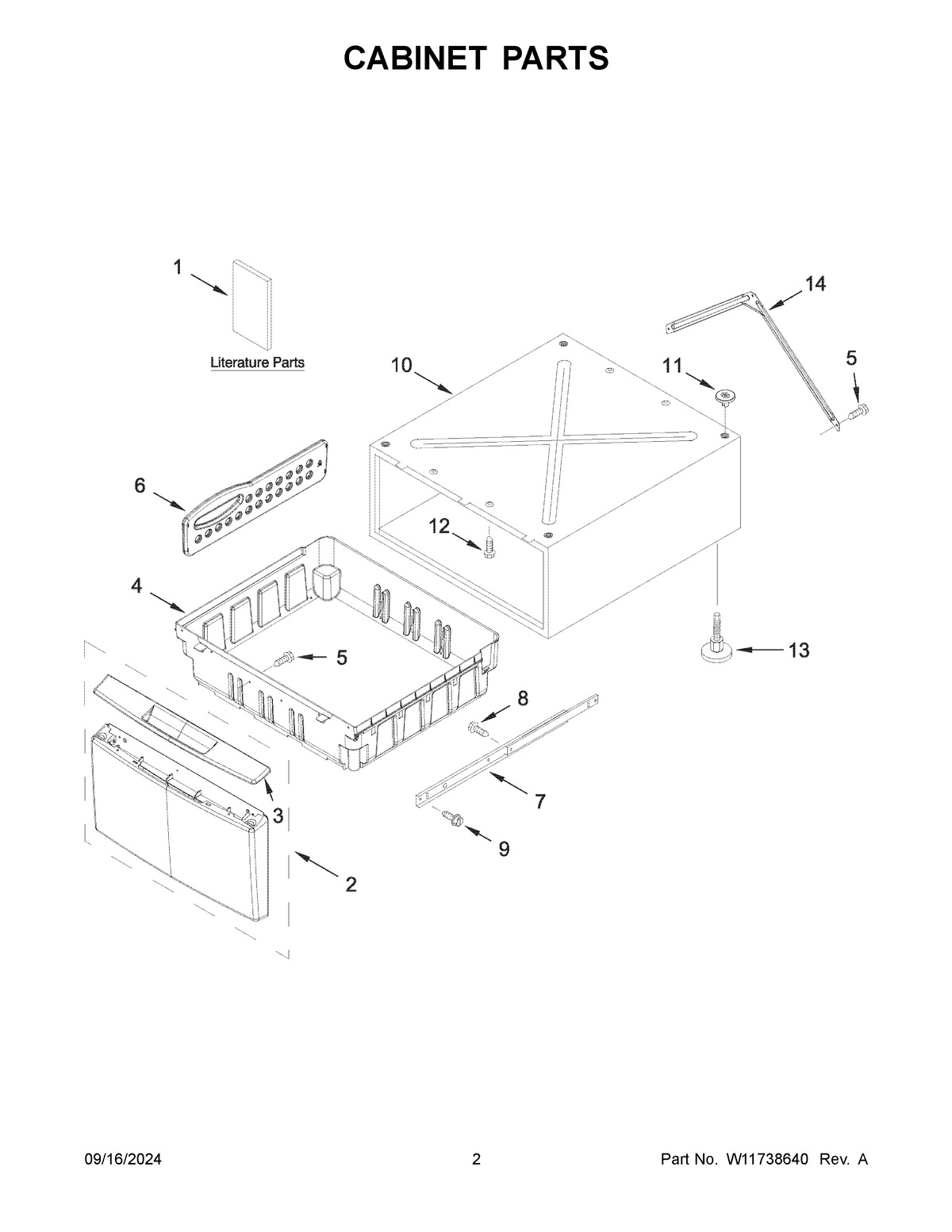

WFP2715RU0 02 – CABINET PARTS
Products
Position
Product
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
Paint, Touch-up (Radiant Silver, 1/2 oz)
NI
W10868014 Whirlpool Appliance Touch-Up Paint
1
INSTALLATION INSTRUCTIONS
2A
DRAWER FRONT ASSEMBLY (BLACK)
2
DRAWER FRONT ASSEMBLY (RADIANT SILVER)
3
W11202174 Whirlpool Handle
3A
HANDLE
4
W11047790 Whirlpool Drawer
5
WPW10213953 Whirlpool Screw
6
WPW10189999 Whirlpool Divider
7
WP8578394 Whirlpool Slide Assembly
8
WP3388228 Whirlpool Screw
9
WP9740849 Whirlpool Screw
10
CABINET (NOT SERVICED)
11
WP8537982 Whirlpool Pad
12
WPW10346892 Whirlpool Screw
13
WP8563585 Whirlpool Foot Assembly
14
WPW10169550 Whirlpool Brace
←
