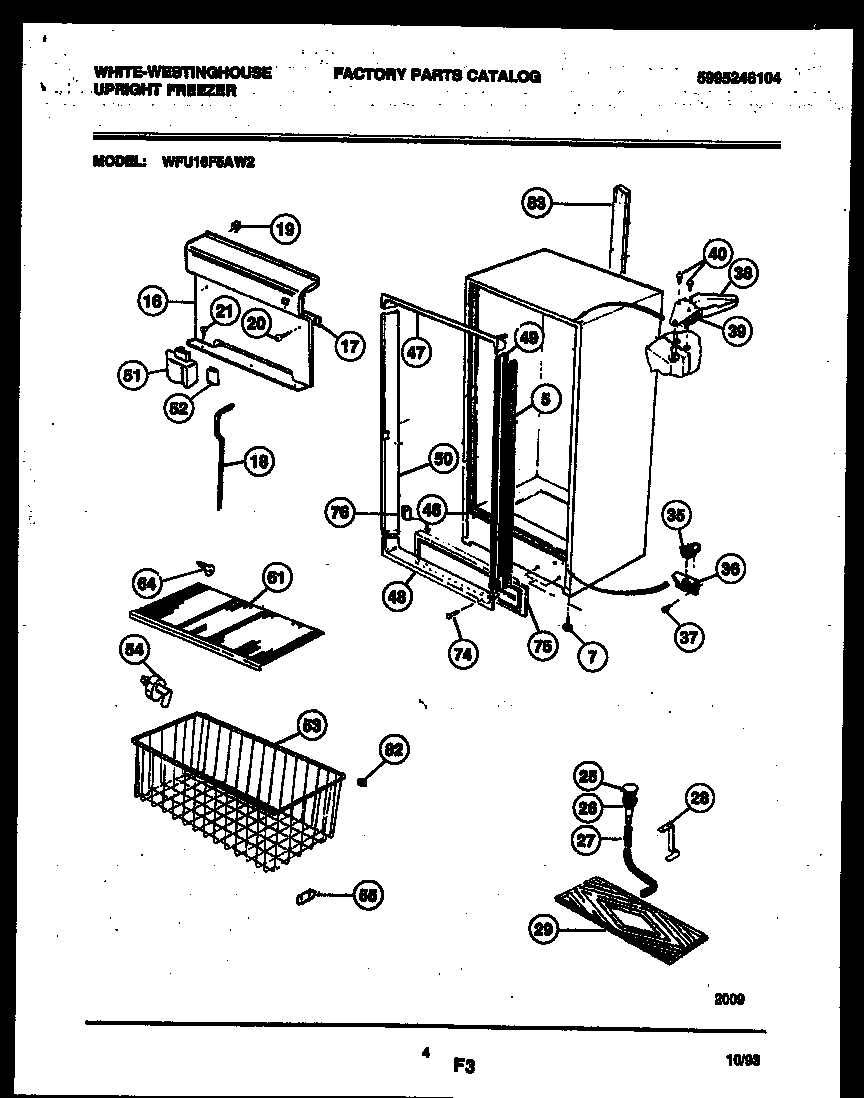

WFU16F5AW2 03 – CABINET PARTS

Products

Position	Product
5	INSULATION (CUT TO SIZE)
7	WCI 216218100
16	WCI 216230300
17	WCI 06599547
18	WCI 06599551
19	WCI 09948978
20	216858001 Frigidaire Refrigerator Screw
21	216036601 Frigidaire Refrigerator Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI 06594637
29	WCI 5308016387
35	RAMP, DOOR
36	WCI 5303210383
37	154518001 Frigidaire Refrigerator Screw
38	COVER, HINGE
39	WCI 5303925086
40	WCI 5303212937
46	WCI 06594680
47	WCI 216085900
48	WCI 216085800
49	WCI 216108801
50	WCI 216108901
51	WCI 216013600
52	CLIP, U, LOCK
53	5304497658 Frigidaire Refrigerator Basket
54	WCI 09948791
55	08009560 Frigidaire 0 Basket Glide
61A	SHELF-BOTTOM, (1)
61	WCI 216266701
64	216502400 Frigidaire Refrigerator Grommet Unit
65	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66	WCI 06594537
74	FASTENER BASE PANEL
75	WCI 216250000
76	WCI 5300118003
82	5305878546 Frigidaire Refrigerator Bumper-Basket
83	WCI 216009000
