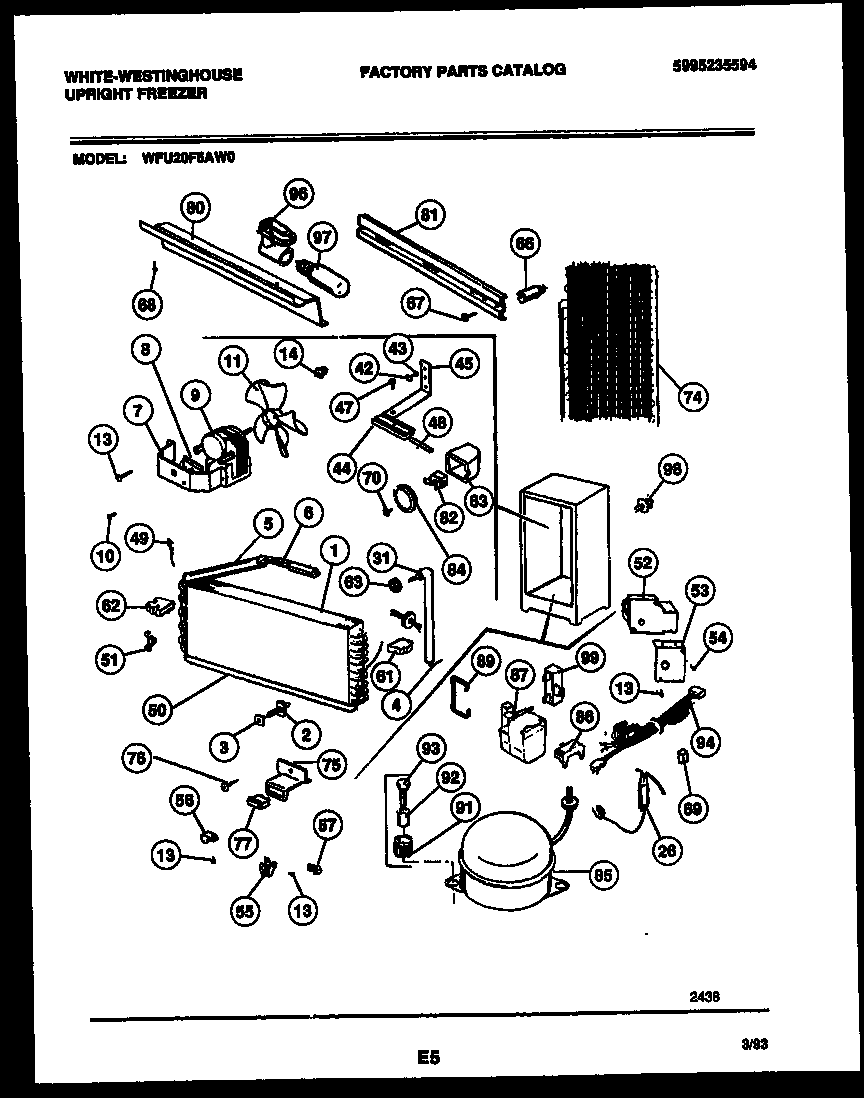

WFU20F5AW0 04 – SYSTEM AND ELECTRICAL PARTS

WFU20F5AW0 04 – SYSTEM AND ELECTRICAL PARTS

Written by

in

WFU20F5AW0 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
*741655300083897 Frigidaire Refrigerator Condenser P1 O/S2
*74165WCI 216009000
1WCI 216195900
2WCI 06599544
3WCI 08013198
4WCI 5303272332
5WCI 5303207297
5INSULATION (CUT TO SIZE)
6WCI 5303208489
7WCI 216218100
7WCI 08013207
8WCI 5300164002
95304442620 Frigidaire Refrigerator Evaporator Fan Motor
10WCI 06594542
11WCI 3205520
14WCI 09948978
16WCI 216084200
17WCI 06599547
18WCI 216204901
19301036 Frigidaire Refrigerator Insert Nut
21131168200 Frigidaire Dryer Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265303305677 Frigidaire Replacement Filter Dryer Filters
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 5308016387
31WCI 09948773
35RAMP, DOOR
36WCI 5303210383
37154518001 Frigidaire Refrigerator Screw
38COVER, HINGE
39HINGE, TOP
40WCI 5303212937
41WCI 5303294372
42216036601 Frigidaire Refrigerator Screw
43WCI 5300095480
44WCI 05878562
45WCI 06594601
46WCI 06594680
47SCREW, CLAMP, TRUSS HD CR, CONTROL
47WCI 216085900
48WCI 216085800
48TUBE
495303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
49WCI 216107501
50WCI 216107601
50WCI 5306599535
51WCI 216013600
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
52CLIP, U, LOCK
525304518034 Frigidaire Refrigerator Defrost Timer
53WCI 08016580
53WCI 216076700
54WCI 09948791
54SCREW
555304455846 Frigidaire Refrigerator Clamp
5508009560 Frigidaire 0 Basket Glide
565303212614 Frigidaire Refrigerator Clip
57WCI 09950610
61AWCI 216077100
61WCI 216077101
61WCI 06599531
62WCI 5306594706
62AWCI 5306594707
62WCI 3017674
63WCI 06594629
63WCI 5306594584
64WCI 5306594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 08000456
66WCI 06594537
67216858001 Frigidaire Refrigerator Screw
68WCI 5303283898
69RETAINER, WIRE, BREAKER
70WCI 09950853
74FASTENER BASE PANEL
74WCI 530083897
75WCI 216009101
75PANEL
76WCI 08037851
76WCI 5300118003
77WCI 06594648
80WCI 08037418
81WCI 3200989
82WCI 216216000
825305878546 Frigidaire Refrigerator Bumper-Basket
83WCI 5306599543
84WCI 216008801
85WCI 216110300
86WCI 216110400
87WCI 216008900
89WCI 215012000
91216498900 Frigidaire Refrigerator Grommet
92SLEEVE-COMPRESSOR
93SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
94WCI 216165900
96SOCKET, LIGHT/LAMP
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
995304464438 Frigidaire Compressor Run Capacitor
