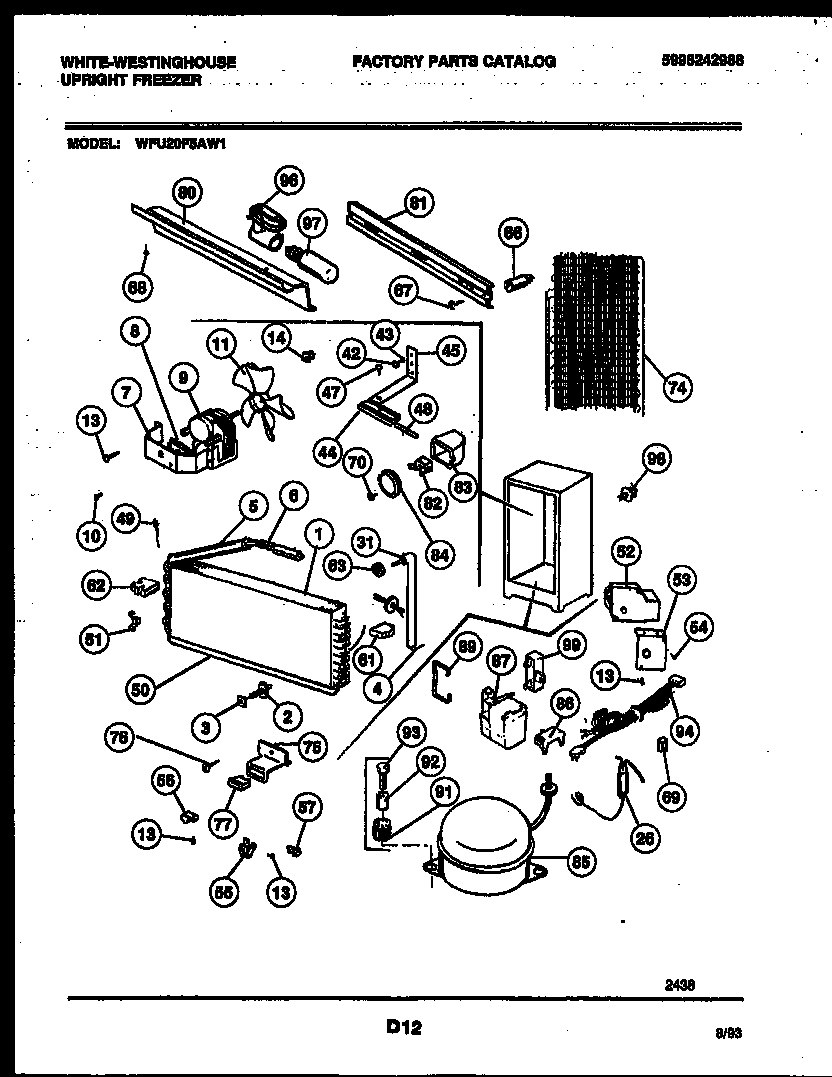

WFU20F5AW1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

WFU20F5AW1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

WFU20F5AW1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*79252RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
*79252WCI 216009000
1WCI 216195900
2WCI 06599544
3WCI 08013198
4WCI 5303272332
5WCI 5303207297
6WCI 5303208489
7WCI 08013207
8WCI 5300164002
95304442620 Frigidaire Refrigerator Evaporator Fan Motor
10WCI 06594542
11WCI 3205520
14WCI 09948978
265303305677 Frigidaire Replacement Filter Dryer Filters
31WCI 09948773
42216036601 Frigidaire Refrigerator Screw
43WCI 5300095480
44WCI 05878562
45WCI 06594601
47SCREW, CLAMP, TRUSS HD CR, CONTROL
48TUBE
495303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
50WCI 5306599535
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
525304518034 Frigidaire Refrigerator Defrost Timer
53WCI 08016580
54SCREW
555304455846 Frigidaire Refrigerator Clamp
565303212614 Frigidaire Refrigerator Clip
57WCI 09950610
61WCI 06599531
62WCI 3017674
63WCI 06594629
66WCI 08000456
67216858001 Frigidaire Refrigerator Screw
68WCI 5303283898
69RETAINER, WIRE, BREAKER
70WCI 09950853
745300083897 Frigidaire Refrigerator Condenser P1 O/S2
75WCI 216009101
76WCI 08037851
77WCI 06594648
80WCI 216241601
81WCI 3200989
82WCI 216216000
83WCI 216230300
84WCI 216008801
85WCI 216110300
86WCI 216110400
87WCI 216008900
89WCI 215012000
91216498900 Frigidaire Refrigerator Grommet
92SLEEVE-COMPRESSOR
93SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
94WCI 216235300
96SOCKET, LIGHT/LAMP
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
995304464438 Frigidaire Compressor Run Capacitor
