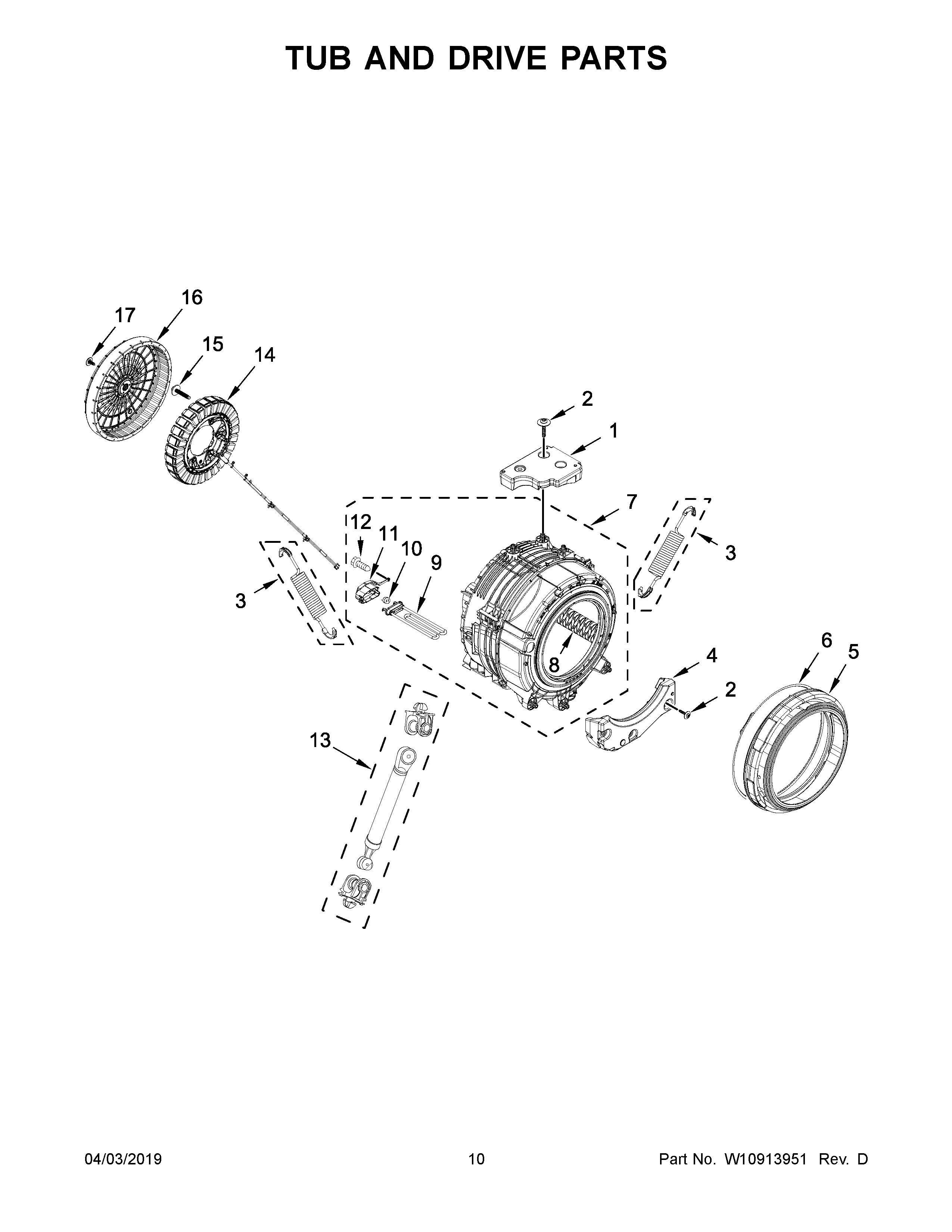

WFW3090GW0 06 – TUB AND DRIVE PARTS

WFW3090GW0 06 – TUB AND DRIVE PARTS

Written by

in

WFW3090GW0 06 – TUB AND DRIVE PARTS

Products

Position	Product
1	COUNTERWEIGHT, TOP
2	SCREW
3	W11690625 Whirlpool Spring
4	W11044835 Whirlpool Counterweight
5	W11044836 Whirlpool Bellow
6	461971408821 Whirlpool Clamp
7	W11025351 Whirlpool Outer Tub
8	W11690624 Whirlpool Baffle
9	W10847365 Whirlpool Heater
10	W11676452 Whirlpool Sensor
11	W10884881 Whirlpool Shield
12	SCREW
13	461971415451 Whirlpool Suspension
14	W11432752 Whirlpool Stator Assembly
15	SCREW
16	W11044837 Whirlpool Rotor
17	W10655372 Whirlpool Screw
