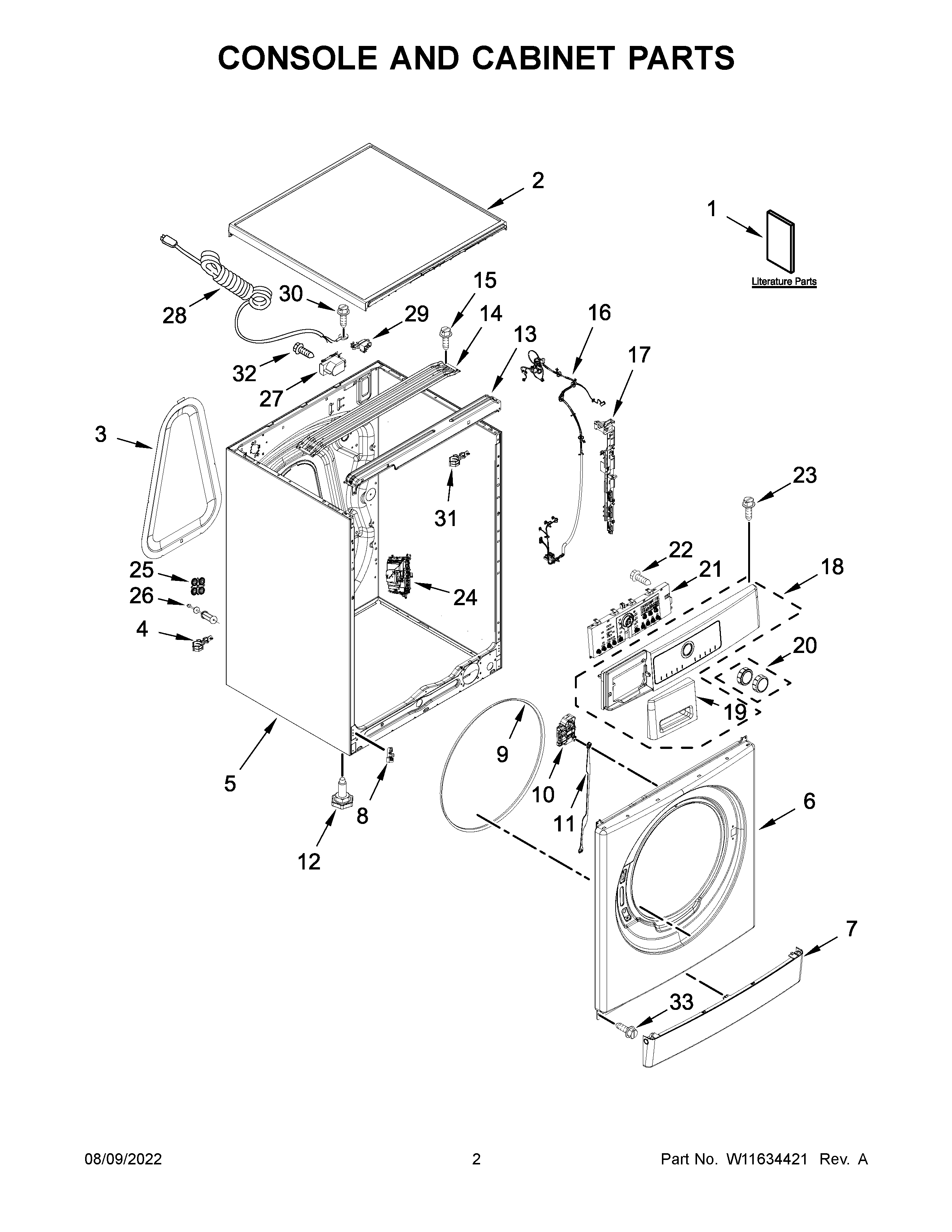

WFW3090JW1 02 – CONSOLE AND CABINET PARTS

Products

PositionProduct
1BQUICK START GUIDE
1AENERGY GUIDE
1USE AND CARE GUIDE
2W11035619 Whirlpool Top Assembly
3W10697252 Whirlpool Cover
4W10525749 Whirlpool Clip
5W10697253 Whirlpool Cabinet Assembly
6W11704120 Whirlpool Panel
7W10564940 Whirlpool Panel
8W10685844 Whirlpool Clip
9W10632440 Whirlpool Clip
10W11035628 Whirlpool Latch Assembly
11W10590587 Whirlpool Lever
12W11643138 Whirlpool Leveling Feet
13W10583233 Whirlpool Bracket Assembly
14BRACKET, CROSS TOP
15SCREW
16W11132207 Whirlpool Wire Harness
17W10658184 Whirlpool Retainer
18W11586057 Whirlpool Console
19W11170566 Whirlpool Handle Assembly
20AW10681351 Whirlpool Knob
20W10869886 Whirlpool Knob
21W11367297 Whirlpool Electronic Control Board + Core
22251921305003 Whirlpool Screw
23SCREW
24W11371721 Whirlpool Timer Assembly
25PLUG, TRANSPORT BOLT
26W10891902 Whirlpool Bolt
27WPW10367632 Whirlpool Filter
28POWER CORD
29461972493421 Whirlpool Clamp
30SCREW
31CLAMP, CABLE
32W10848668 Whirlpool Screw
33251926500053 Whirlpool Screw
