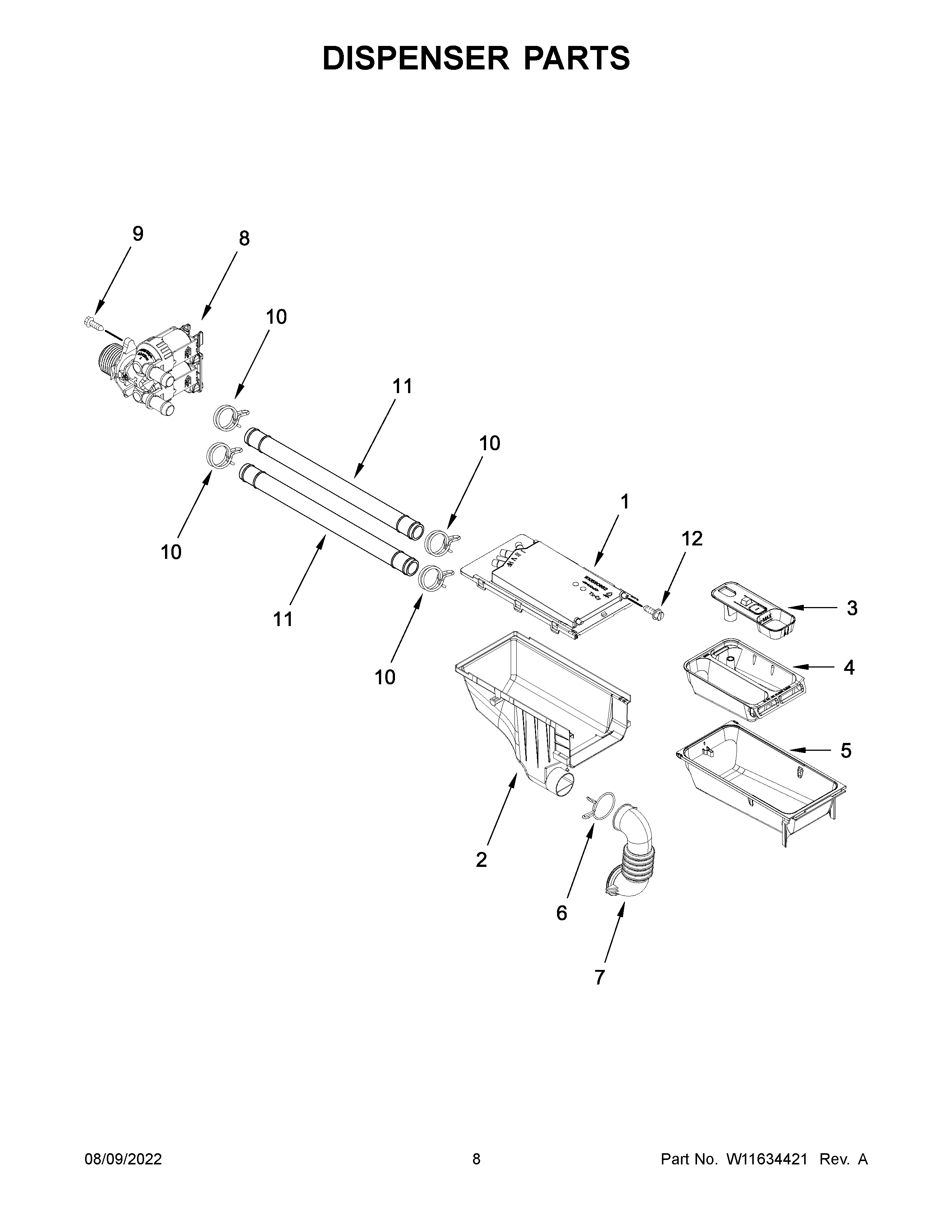

WFW3090JW1 05 – DISPENSER PARTS

WFW3090JW1 05 – DISPENSER PARTS

Written by

in

WFW3090JW1 05 – DISPENSER PARTS

Products

PositionProduct
1W11661891 Whirlpool Washer Plate
2W10580618 Whirlpool Housing
3W10580677 Whirlpool Siphon Assembly
4W10868280 Whirlpool Dispenser Assembly
5W10868281 Whirlpool Dispenser Assembly
6251971300008 Whirlpool Hose Clamp
7461971409182 Whirlpool Hose
8W11044834 Whirlpool Valve
9251912400003 Whirlpool Screw
10WP489503 Whirlpool Refrigerator Clamp
11W10887741 Whirlpool Hose
12251925500045 Whirlpool Screw
