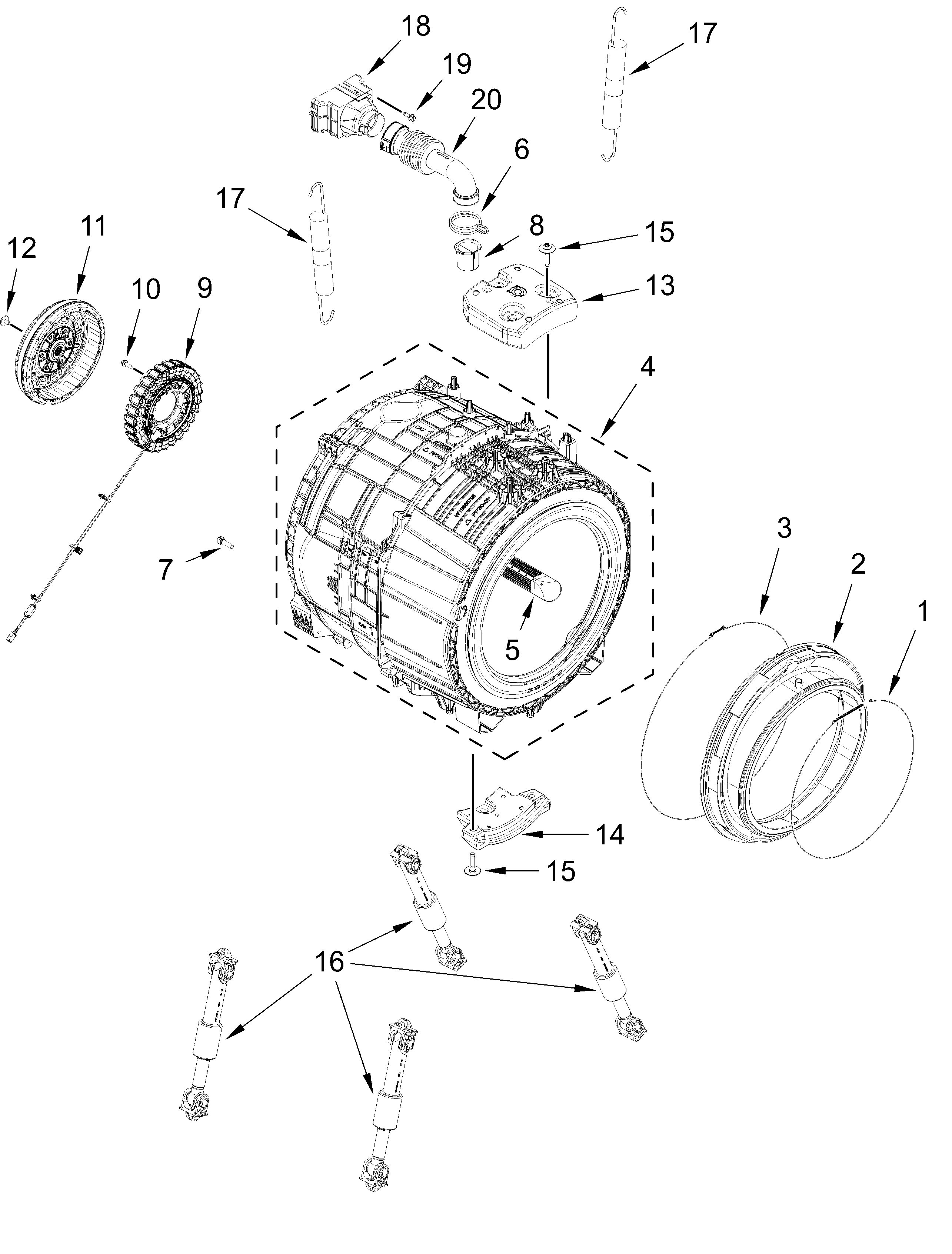

WFW4720RW0 TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	W11578223 Whirlpool Bellow Assembly
3	W11314649 Whirlpool Clamp
4	W11460604 Whirlpool TUB & DRUM Assembly SHORT VENT
5	W11460395 Whirlpool Baffle
6	WP371502 Whirlpool Clamp
7	W11320546 Whirlpool Sensor Assembly
8	W11557921 Whirlpool Vent Coupling
9	Stator, Motor
10	W11314661 Whirlpool Screw
11	W11314361 Whirlpool Rotor Assembly
12	W11557803 Whirlpool Screw
13	W11314650 Whirlpool Counterweight
14	W11607191 Whirlpool Counterweight
15	W11314651 Whirlpool Screw
16	SHOCK-ABSR (1 EA)
17	SPRING
18	W11316248 Whirlpool Housing
19	W11230114 Whirlpool Screw Assembly
20	W11316247 Whirlpool Hose Assembly
