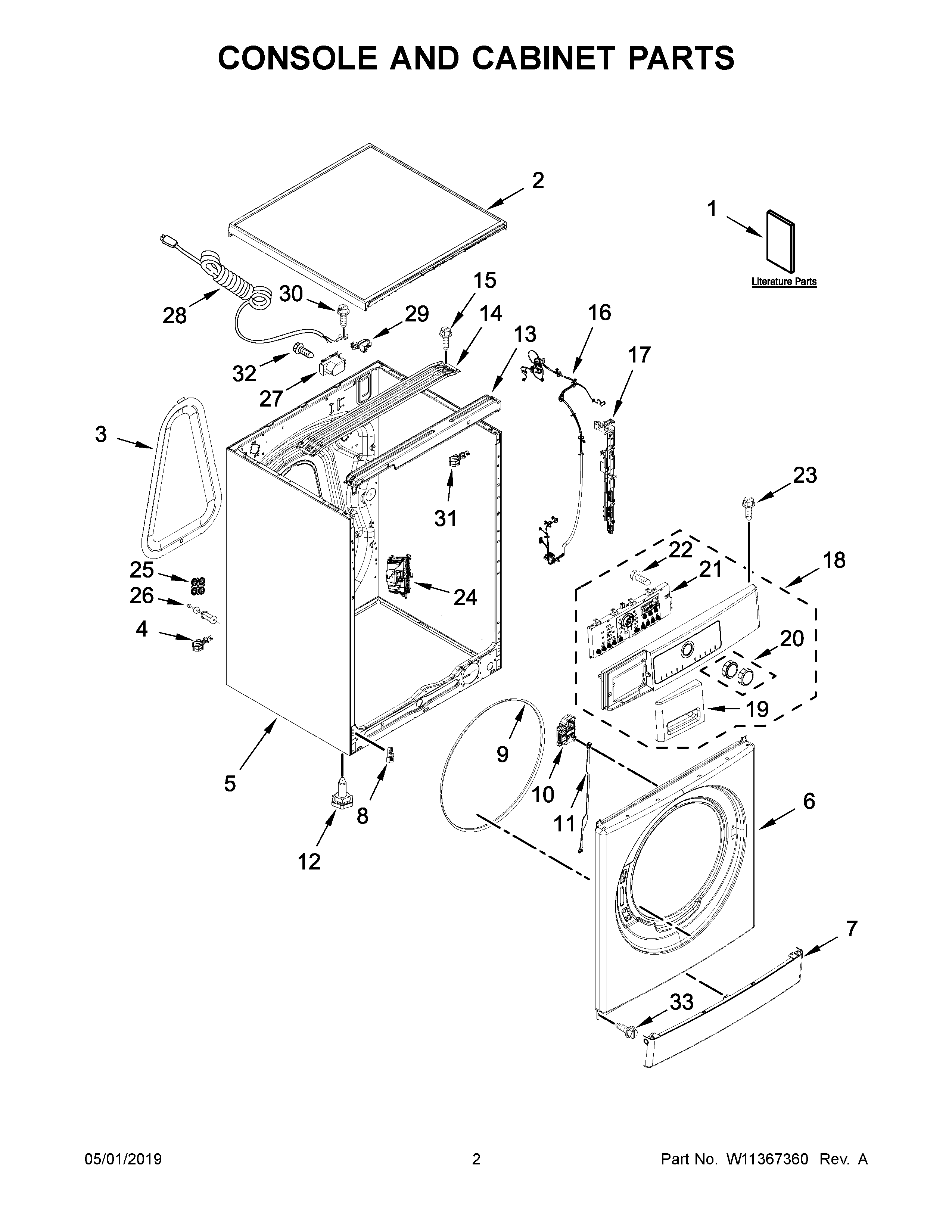

WFW5090GW2 02 – CONSOLE AND CABINET PARTS

WFW5090GW2 02 – CONSOLE AND CABINET PARTS

Written by

in

WFW5090GW2 02 – CONSOLE AND CABINET PARTS

Products

PositionProduct
1CQUICK START GUIDE
1USE AND CARE GUIDE
1BENERGY GUIDE
1ATECH SHEET
2W11088561 Whirlpool Top Assembly
3W10697252 Whirlpool Cover
4W10525749 Whirlpool Clip
5W10703007 Whirlpool Cabinet
6W11704120 Whirlpool Panel
7W10564940 Whirlpool Panel
8W10685844 Whirlpool Clip
9W10632440 Whirlpool Clip
10W11035628 Whirlpool Latch Assembly
11W10590587 Whirlpool Lever
12W11643138 Whirlpool Leveling Feet
13W10583233 Whirlpool Bracket Assembly
14BRACKET, CROSS TOP
15SCREW
16W11132207 Whirlpool Wire Harness
17W10658184 Whirlpool Retainer
18W11502170 Whirlpool Console
19W11170566 Whirlpool Handle Assembly
20W10869886 Whirlpool Knob
20AW10681353 Whirlpool Knob
21W11367297 Whirlpool Electronic Control Board + Core
22251921305003 Whirlpool Screw
23SCREW
24W11616491-includeCORE Whirlpool W11616491 Washer Electronic Control Board + Core
25PLUG, TRANSPORT BOLT
26W10891901 Whirlpool Bolt Assembly
27WPW10367632 Whirlpool Filter
28POWER CORD
29461972493421 Whirlpool Clamp
30SCREW
31CLAMP, CABLE
32W10848668 Whirlpool Screw
33251921201061 Whirlpool Screw
