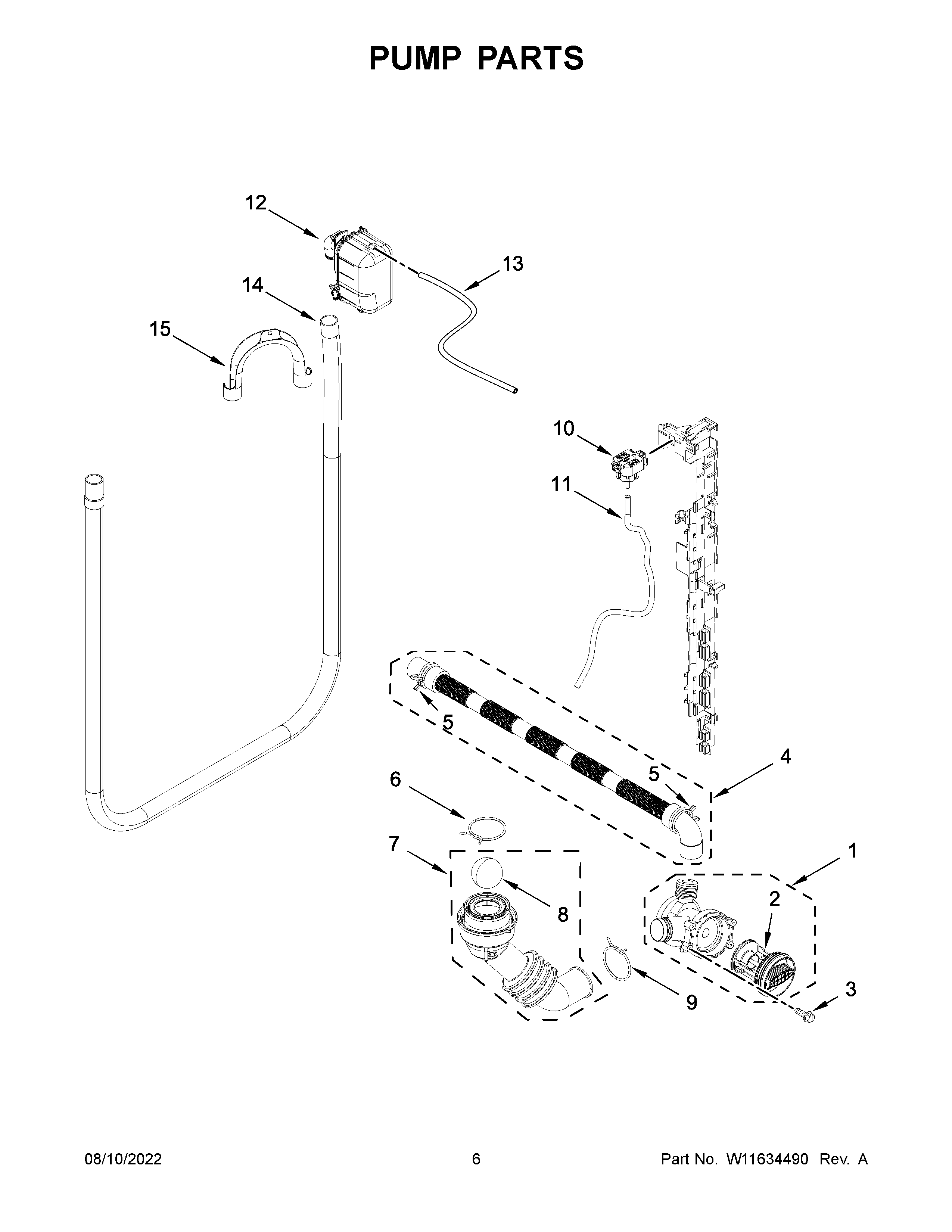

WFW5090JW1 04 – PUMP PARTS

Products

Position	Product
1	PUMP
2	W10506380 Whirlpool Filter
3	W10512064 Whirlpool Screw
4	W11173117 Whirlpool Hose Assembly
5	251971304004 Whirlpool Hose Clamp
6	CLAMP
7	461971409193 Whirlpool Hose
8	461974081951 Whirlpool Ball
9	251971304005 Whirlpool Clamp
10	W11044866 Whirlpool Washer Water Level Switch
11	W10676317 Whirlpool Hose
12	W11579389 Whirlpool Tank
13	W10596633 Whirlpool Hose
14	461974646281 Whirlpool Hose
15	W10887723 Whirlpool Retainer
