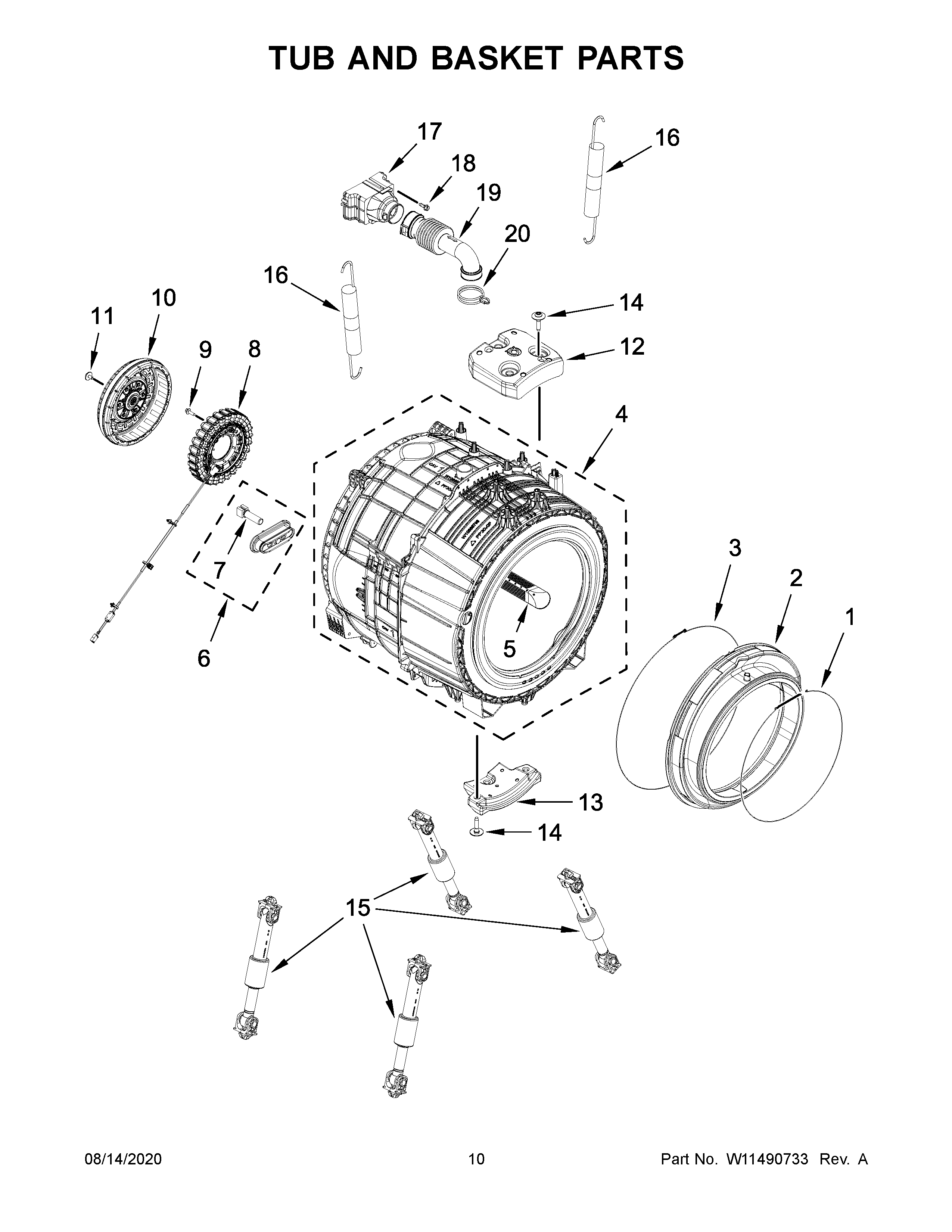

WFW560CHW2 06 – TUB AND BASKET PARTS

WFW560CHW2 06 – TUB AND BASKET PARTS

Written by

in

WFW560CHW2 06 – TUB AND BASKET PARTS

Products

PositionProduct
1CLAMP
2BELLOW
3W11314649 Whirlpool Clamp
4W11460604 Whirlpool TUB & DRUM Assembly SHORT VENT
5W11460395 Whirlpool Baffle
6W11320546 Whirlpool Sensor Assembly
7W11314664 Whirlpool Heater
8W11354541 Whirlpool Stator
9W11314661 Whirlpool Screw
10W11314361 Whirlpool Rotor Assembly
11W11557803 Whirlpool Screw
12W11314650 Whirlpool Counterweight
13W11607191 Whirlpool Counterweight
14W11314651 Whirlpool Screw
15SHOCK-ABSR (1 EA)
16SPRING
17W11316248 Whirlpool Housing
18W11230114 Whirlpool Screw Assembly
19W11316247 Whirlpool Hose Assembly
20WP371502 Whirlpool Clamp
