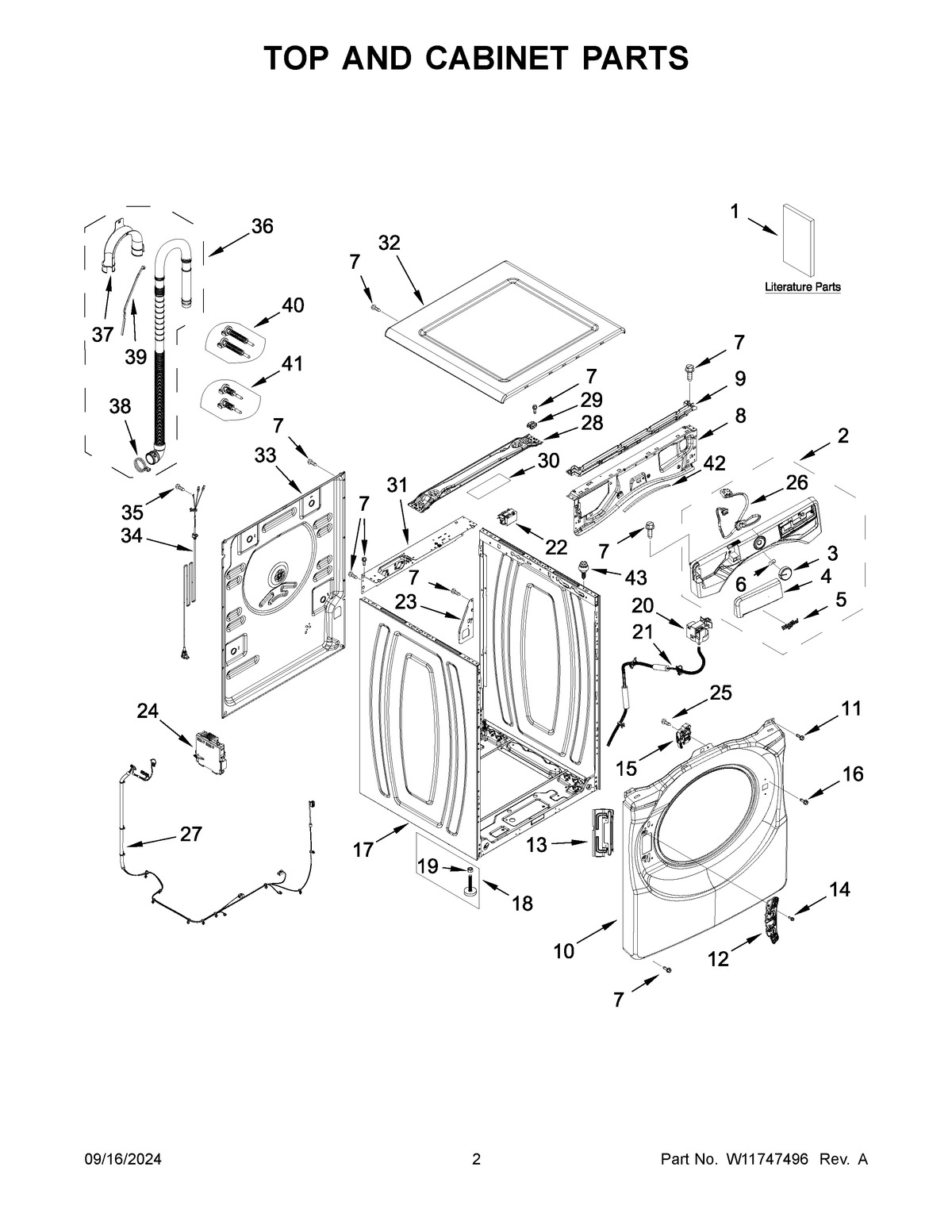

WFW5720RR0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	ENERGY GUIDE
3	ASSEMBLY, KNOB
4	HANDLE, DRAWER (RADIANT SILVER)
5	W11223753 Whirlpool Refrigerator Nameplate
6	WP8536939 Whirlpool Spring Clip
7	W11568617 Whirlpool Screw
8	W11314678 Whirlpool Bracket Assembly
9	W11458348 Whirlpool Channel
10	PANEL, FRONT (RADIANT SILVER)
11	W11573574 Whirlpool Screw
12	HINGE ASSEMBLY
13	BRACKET, HINGE
14	SCREW
15	LATCH
16	WP8540282 Whirlpool Screw
17	CABINET
18	FOOT
19	NUT, HEX
20	SWITCH-WL
21	W11456953 Whirlpool Hose
22	W11689659 Whirlpool Filter
23	W11316769 Whirlpool Bracket
24	CNTRL-ELEC
25	W10306501 Whirlpool Screw
26	HARNESS, HMI
27	HARNESS, MAIN
28	W10467484 Whirlpool Bracket
29	W10245452 Whirlpool Retainer
30	FOAM PAD
31	W11353016 Whirlpool Bracket
32	TOP (RADIANT SILVER)
33	W11491750 Whirlpool Panel
34	W11316254 Whirlpool Power Cord
35	W10846509 Whirlpool Screw
36	W11551765 Whirlpool Hose
37	WPW10280024 Whirlpool Retainer
38	WP356138 Whirlpool Hose Clamp
39	WPW10339879 Whirlpool Wire Tie
40	W11316631 Whirlpool Bolt Fastener
41	W11316629 Whirlpool Bolt
42	W11316770 Whirlpool Protector
43	W10208380 Whirlpool Screw
