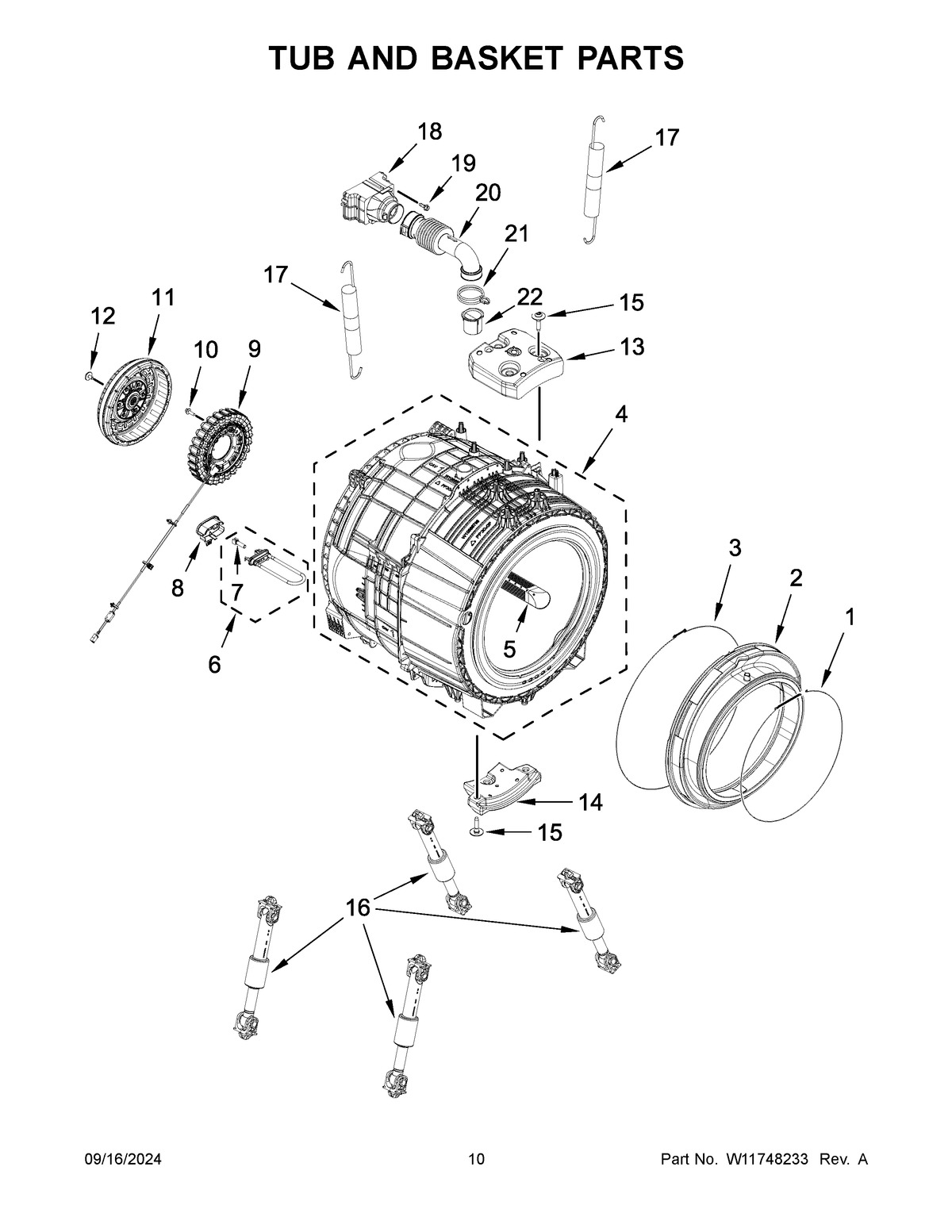

WFW5720RU0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	BELLOW
3	W11314649 Whirlpool Clamp
4	W11460604 Whirlpool TUB & DRUM Assembly SHORT VENT
5	W11460395 Whirlpool Baffle
6	W11549460 Whirlpool Heater
7	W11314664 Whirlpool Heater
8	W11314776 Whirlpool Appliance Cover
9	Stator, Motor
10	W11314661 Whirlpool Screw
11	W11314361 Whirlpool Rotor Assembly
12	W11557803 Whirlpool Screw
13	W11314650 Whirlpool Counterweight
14	W11607191 Whirlpool Counterweight
15	W11314651 Whirlpool Screw
16	SHOCK-ABSR (1 EA)
17	SPRING
18	W11316248 Whirlpool Housing
19	W11230114 Whirlpool Screw Assembly
20	W11316247 Whirlpool Hose Assembly
21	WP371502 Whirlpool Clamp
22	W11557921 Whirlpool Vent Coupling
