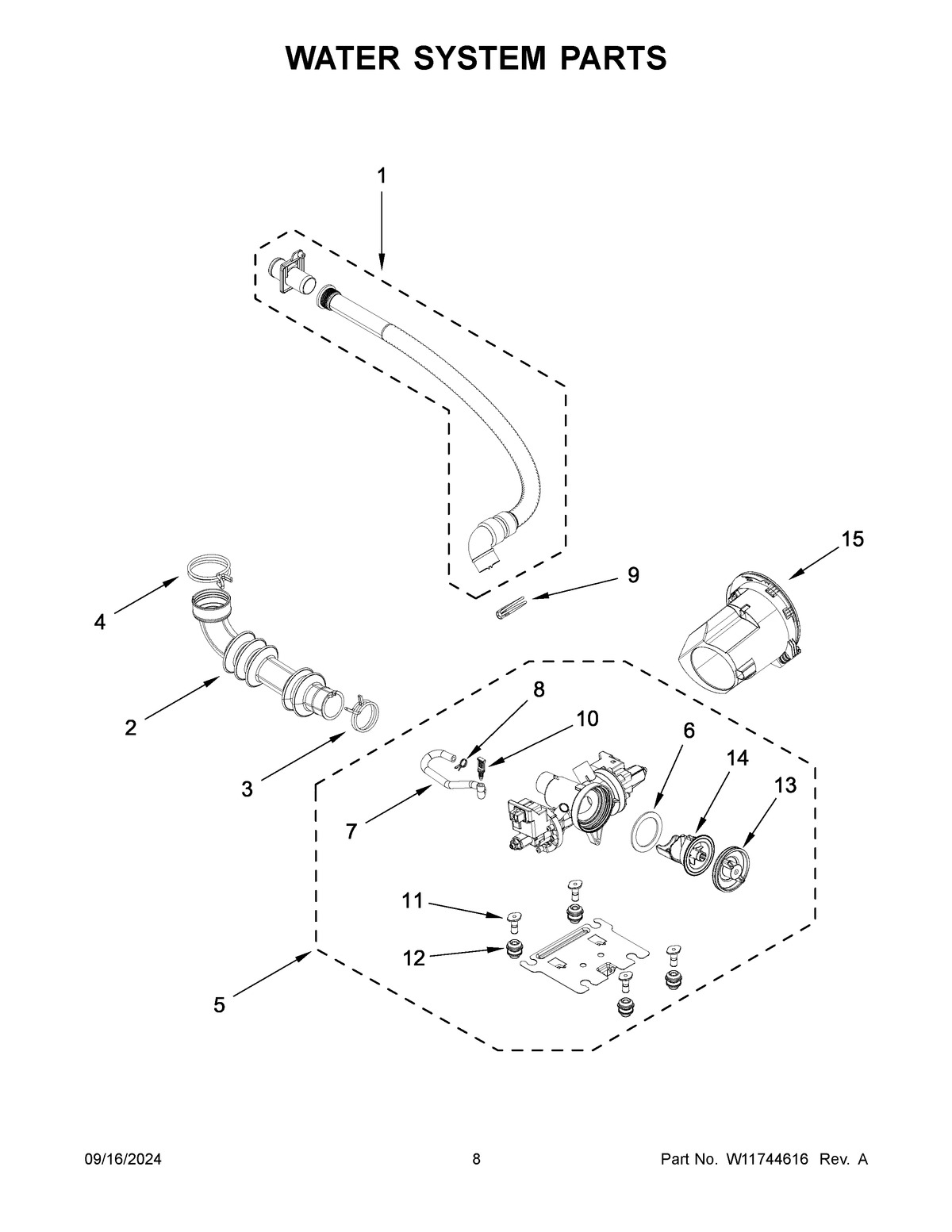

WFW5720RW0 05 – WATER SYSTEM PARTS

Products

Position	Product
1	HOSE
2	W11314666 Whirlpool Hose Assembly
3	WP616099 Whirlpool Clamp
4	W10273034 Whirlpool Clamp
5	PUMP-WATER
6	W11316613 Whirlpool Seal Assembly
7	HOSE, DRAIN (PUMP)
8	W11316666 Whirlpool Clamp
9	WP356138 Whirlpool Hose Clamp
10	PLUG, DRAIN (PUMP)
11	W11316664 Whirlpool Pin
12	W11316663 Whirlpool Grommet Assembly
13	W11316610 Whirlpool Cap Assembly
14	W11458347 Whirlpool Filter
15	Assembly, Drain Pump Housing
