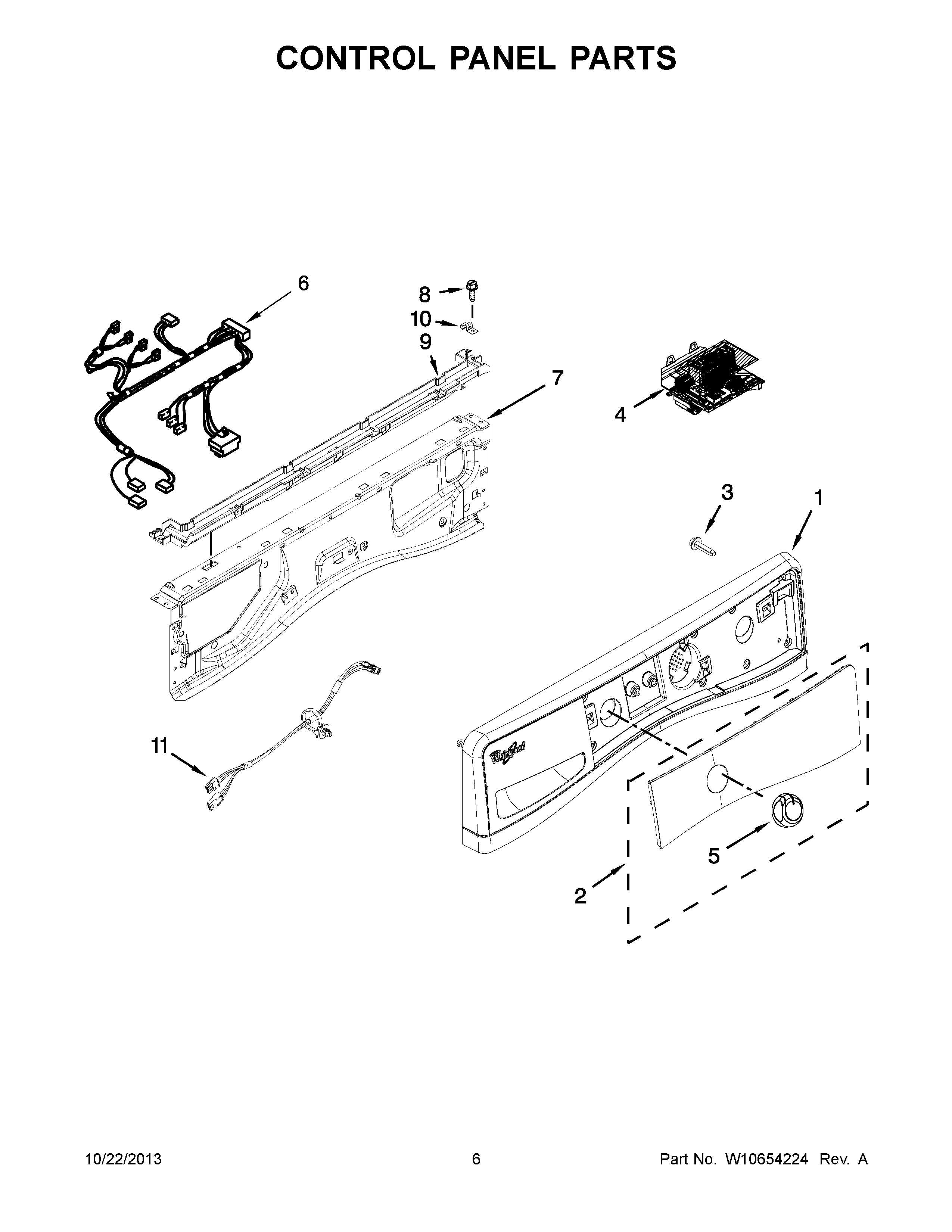

WFW70HEBW2 04 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONSOLE (WHITE)
2	WPW10635629 Whirlpool Control Panel
3	W10589828 Whirlpool Screw
4	WPW10635660-includeCORE Whirlpool WPW10635660 Refrigerator Electronic Control Board + Core
5	KNOB ASSEMBLY
6	W11229597 Whirlpool Wire Harness
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	W10317566 Whirlpool Clip
11	WPW10442440 Whirlpool Wire Harness
